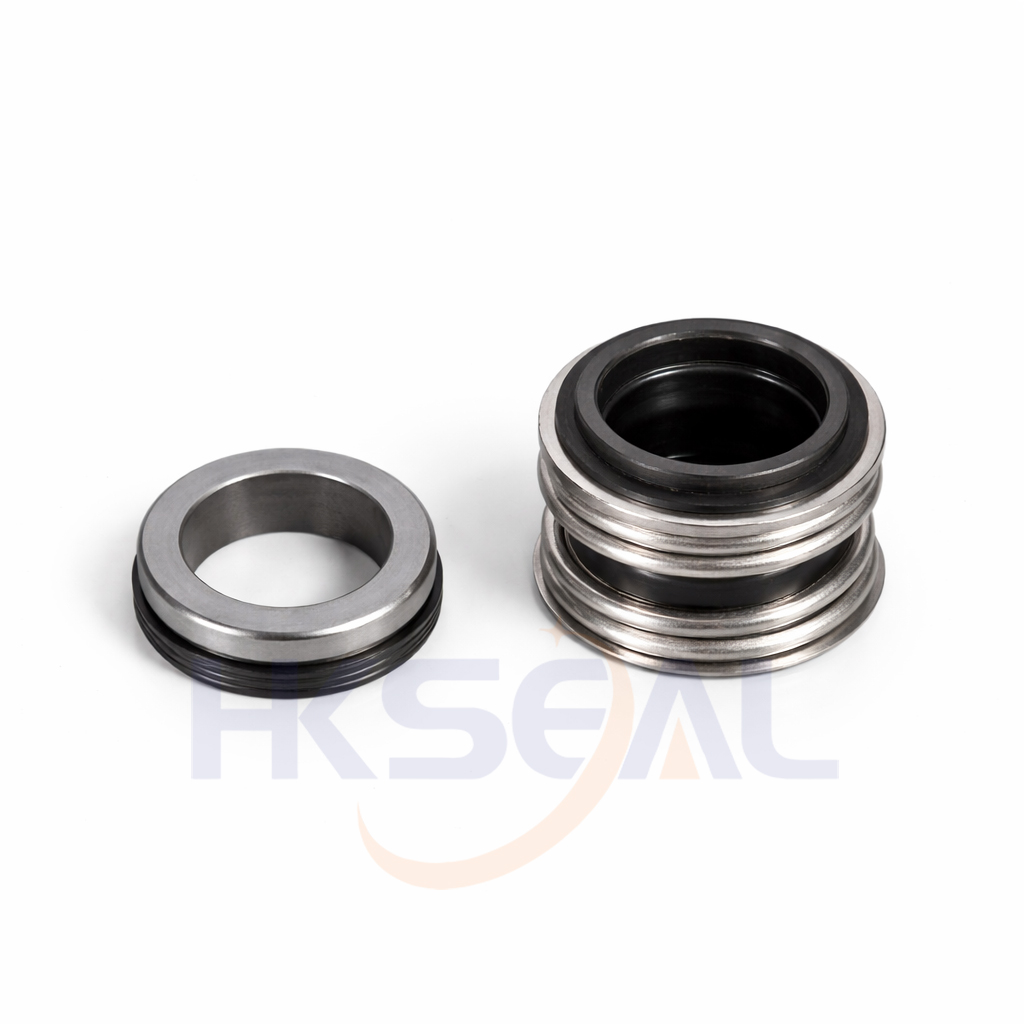

ABS-A
- Type:
-
Suit A.B.S. AFP series pumps
- Replacement:
-
Vulcan 195
Temperature:
-20℃ to +120℃
Pressure:
≤1.2Mpa
Speed:
≤10m/s
- Material:
-
B,A1,Q1,Q2,U2,P,E,N,V,F,G
| d |
D1 |
D3 |
L1 |
L2 |
O.E.M.Part |
| (mm) |
Number |
| 15 |
35.00 |
28.00 |
17.00 |
4.00 |
11110172 |
| 20 |
35.00 |
36.00 |
21.50 |
7.50 |
11110001 |
| 25 |
40.50 |
41.00 |
22.50 |
8.50 |
11110095 |
| 30 |
50.80 |
47.00 |
24.00 |
9.50 |
11110096 |
| 40 |
58.00 |
60.00 |
33.50 |
11.00 |
11110144 |
| 45 |
65.50 |
64.30 |
30.50 |
12.50 |
11110093 |
| 55 |
76.20 |
78.00 |
37.50 |
13.50 |
11110135 |
| 80 |
104.00 |
106.50 |
40.00 |
15.00 |
11110051 |
|
| d |
D1 |
D3 |
L1 |
L2 |
O.E.M.Part |
| (mm) |
Number |
| 40 |
58.00 |
60.00 |
33.50 |
11.00 |
11110055 |
| 48 |
67.00 |
69.00 |
30.50 |
10.00 |
11110003 |
| 65 |
86.00 |
90.00 |
39.00 |
12.00 |
11110050 |
| 90 |
114.00 |
125.00 |
46.30 |
13.00 |
11110052 |
| 100 |
123.30 |
130.00 |
46.00 |
13.30 |
11110053 |
