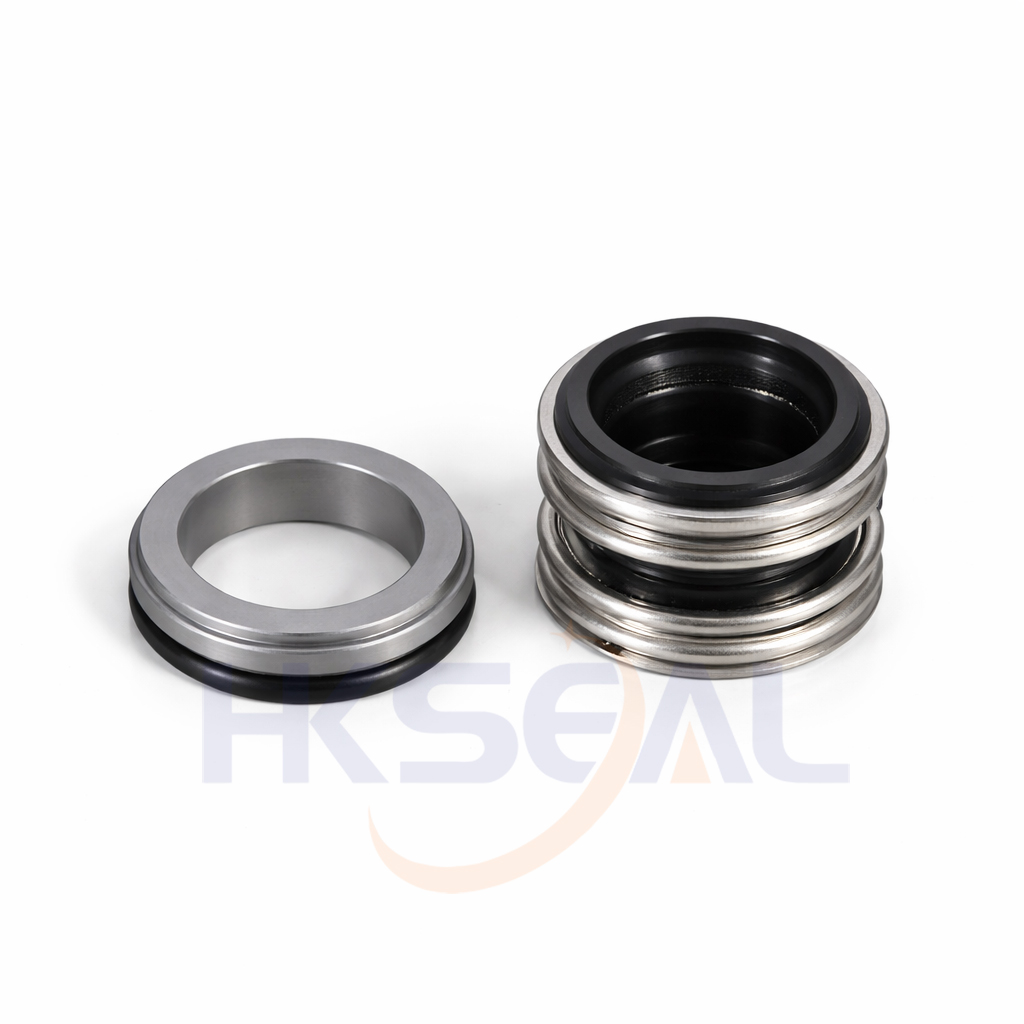

ABS-B
- Type:
- Suit ABS AFP-Series submersible pumps
- Replacement:
- Vulcan 1632，AES W14，Burgmann MS30/MS32 Temperature: -20℃ to +140℃ Pressure: ≤1.2Mpa Speed: ≤15m/s
- Material:
- B,A1,Q1,Q2,U2,P,E,N,V,F,G
- Detail
| d | D1 | D3 | L1 | L2 | O.E.M.Part |
| (mm) | Number | ||||
| 20 | 52.00 | 31.00 | 13.50 | 6.00 | 11100066 |
| 48 | 67.00 | 62.00 | 15.80 | 14.50 | 11100058 |
| 65 | 86.00 | 79.00 | 17.80 | 15.30 | 11100059 |
| 80 | 104.00 | 98.00 | 19.50 | 16.30 | 11100053 |
| 90 | 114.00 | 105.00 | 19.50 | 16.30 | 11100055 |
| 100 | 123.00 | 116.00 | 21.00 | 17.10 | 11100052 |
