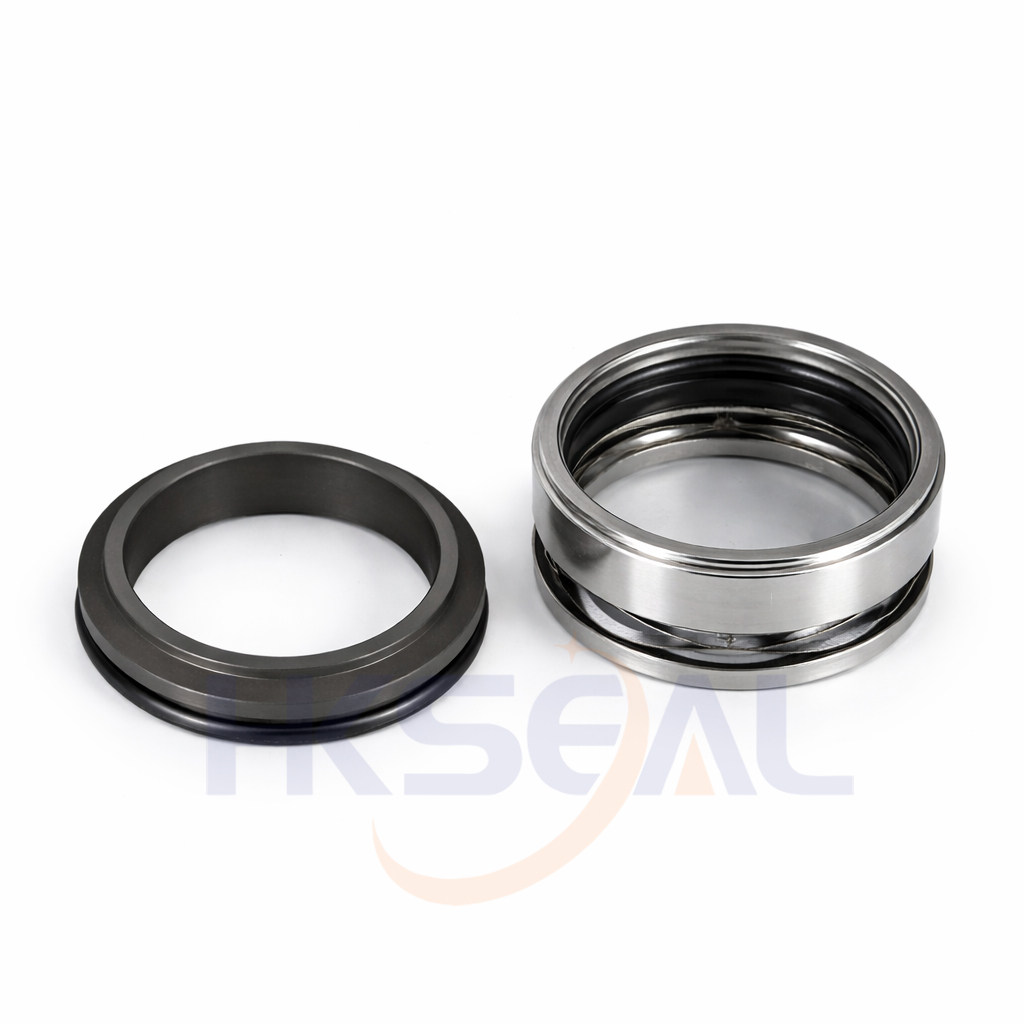

ABS-D
- Type:
- Suit ABS PUMPEX Submersible Pumps
- Replacement:
- Vulcan 1576 Temperature: -20 to +190℃ Pressure: ≤1.2Mpa Speed: ≤10m/s
- Material:
- B,Q2,U2,P,E,N,V,F,G,Alfa
- Detail
| d | D1 | D3 | L1 | L2 |
| (mm) | ||||
| 32 | 46.50 | 47.60 | 20.00 | 5.40 |
| 40 | 56.00 | 57.90 | 20.00 | 6.80 |
| 48 | 67.00 | 62.00 | 15.60 | 14.50 |
| 55 | 72.00 | 73.40 | 20.00 | 7.90 |
| 60 | 75.00 | 80.50 | 21.00 | 10.90 |
| 75 | 93.20 | 97.20 | 26.80 | 9.90 |
