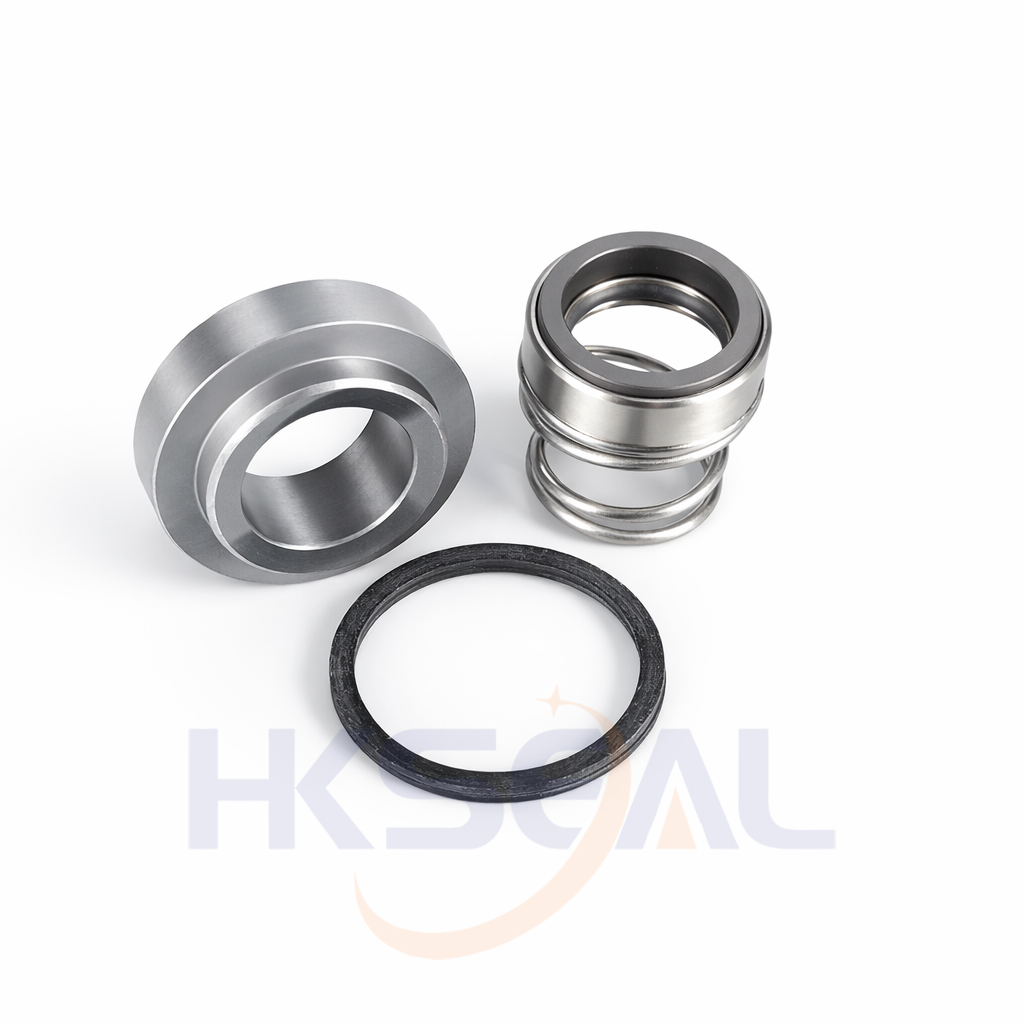

HK160A
- Type:
- Suit for APV W Pumps,Double Seal
- Replacement:
- AES TOWD,Vulcan 16. DOUB,Flowerve AWD Temperature: -40℃ to +180℃ Pressure: ≤0.8Mpa Speed: ≤15m/s
- Material:
- Q2,F,B,P,E,V,G
- Detail
| d | D1 | D3 | L1 | L2 | L3 |
| (mm) | |||||
| 25.00 | 52.00 | 38.20 | 13.00 | 17.00 | 25.40 |
| 35.00 | 62.50 | 49.50 | 16.00 | 20.00 | 33.30 |
