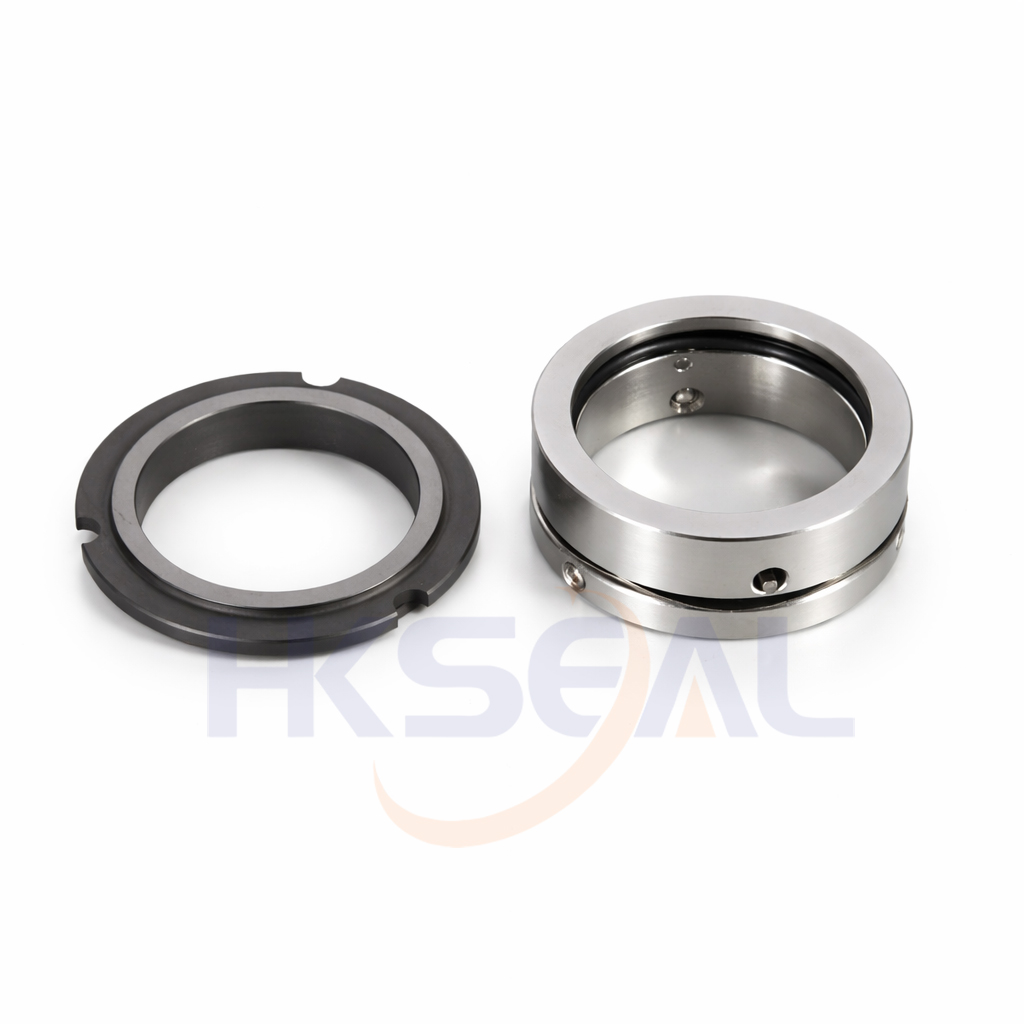

HK68B
- Type:
- Wave Spring Mechanical Seal
- Replacement:
- AES W03，Vulcan 1688W，Crane 87(EI/EC) Temperature: -40℃ to +200℃ Pressure: ≤0.8Mpa Speed: ≤18m/s
- Material:
- Q2,B,U2,P,E,V,F,G
- Detail
| PUMP ref: | Size | D1 | D3 | L1 | L2 |
| (mm) | |||||
| SR1 | 20 | 30.0 | 31.0 | 19.1 | 10.7 |
| SR2 | 30 | 41.0 | 41.0 | 19.1 | 10.9 |
| SR3 | 35 | 47.0 | 45.5 | 21.1 | 12.2 |
| SR4 | 45 | 58.0 | 58.2 | 21.1 | 11.6 |
| SR5 | 55 | 70.0 | 72.0 | 22.1 | 13.0 |
| SR6 | 75 | 92.0 | 96.0 | 25.8 | 14.5 |
