/sys_pic/autoproducts/6-CARTRIDGE SEAL/8-HK290/HK290.jpg

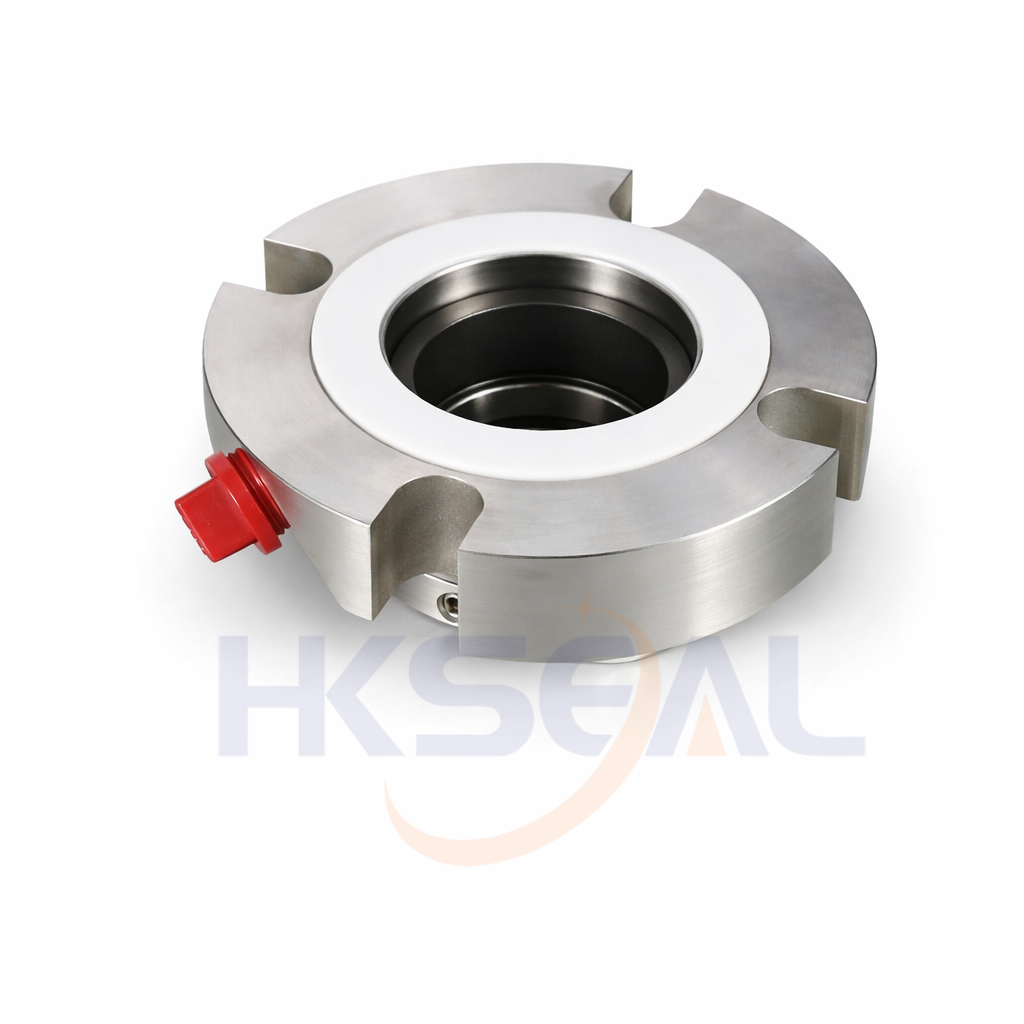

HK290

Type:
Single Cartridge Seal
Replacement:
Burgmann MA290/390 Temperature:-20℃ to +160℃ Pressure:≤1.6Mpa Speed:≤20m/s
Material:
Q1,Q2,Graphite,V,G
  • Detail
  •

d D1 D2 D3 L1 L2 L3
(mm) min max
20 104 58 30 51 42 60 12
24 104 58 34 51 42 60 12
25 104 58 35 51 42 60 12
28 108 63 38 54 42 65 12
30 108 63 40 56 42 65 12
32 108 63 42 56 42 65 12
33 118 73 43 66 42 75 14
35 18 73 45 66 42 75 14
38 118 73 48 66 42 75 14
40 118 73 50 66 42 75 14
43 128 78 53 71 42 80 14
45 128 78 55 71 42 80 14
48 138 88 58 81 44 90 14
50 138 88 60 81 44 90 14
53 138 88 63 81 44 90 14
55 138 88 65 81 44 90 14
58 164 103 68 96 46 105 18
60 164 103 70 96 46 105 18
63 164 103 73 96 46 105 18
65 164 103 75 96 46 105 18
70 178 109 80 102 46 111 18
75 193 121 85 114 49 123 18
80 193 121 90 114 49 123 18
85 208 131 95 124 49 133 20
90 208 131 100 124 49 133 20
95 218 141 105 134 49 143 20
100 218 141 110 134 49 143 20
