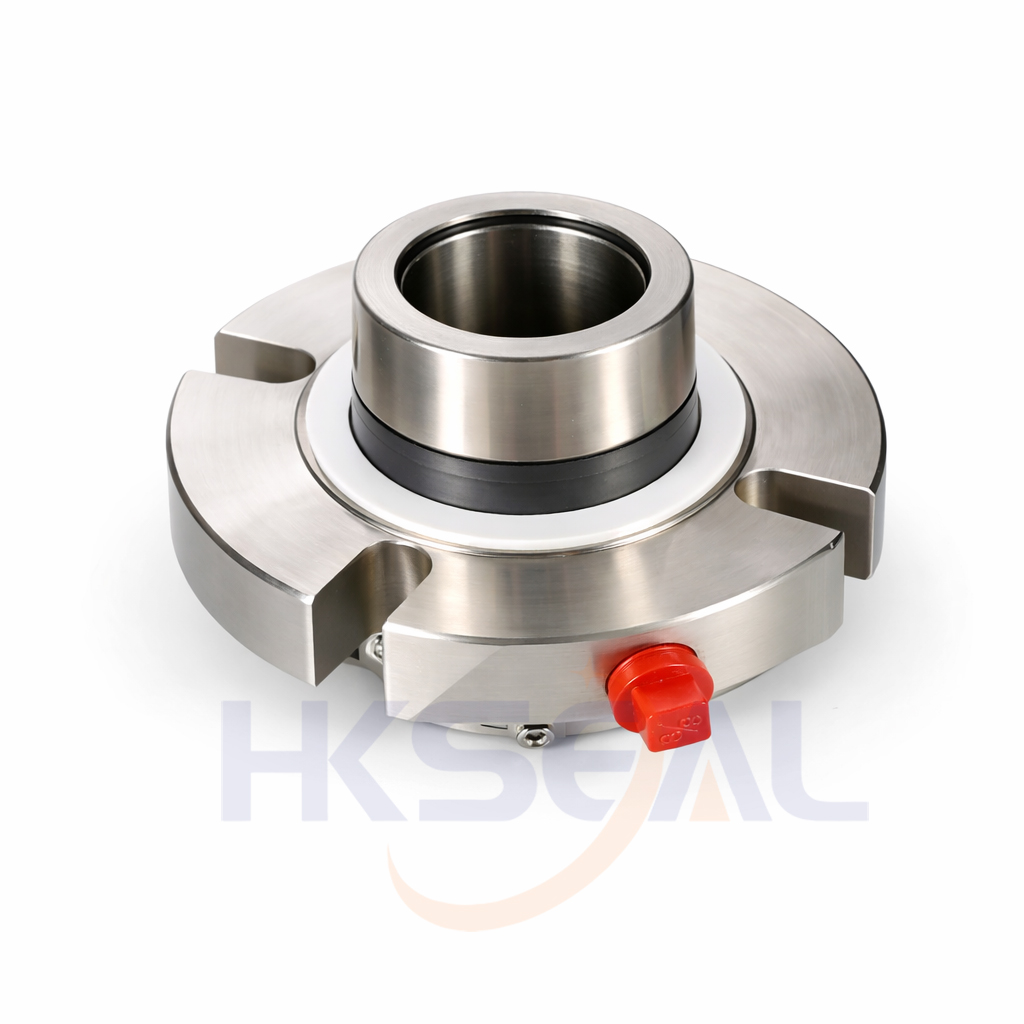

HKCDN

Type:: Double Cartridge Seal

Replacement:: Burgmann CARTEX-DN Temperature: -40℃ to +220℃ Pressure: ≤4.0Mpa Speed: ≤25m/s

Material:: Q1,Q2,U2,T,V,M1,F,G,M

Detail

d	D1		D2	D4	Dm	L	L1	L2	L3	M
(mm)	min	max	D2	D4	Dm	L	L1	L2	L3	M
25.0	44.0	51.5	43.0	105.0	62.0	86.5	53.4	33.1	25.4	13.2
28.0	47.0	52.0	46.0	105.0	62.0	86.5	53.4	33.1	25.4	13.2
30.0	49.0	56.0	48.0	106.0	65.0	86.5	53.4	33.1	25.4	13.2
32.0	51.0	57.0	49.8	108.0	67.0	86.5	53.4	33.1	25.4	13.2
33.0	51.0	57.0	49.8	108.0	67.0	86.5	53.4	33.1	25.4	13.2
35.0	54.0	61.5	53.0	113.0	70.0	86.5	53.4	33.1	25.4	13.2
38.0	57.0	66.0	56.0	123.0	75.0	86.5	53.4	33.1	25.4	13.2
40.0	59.0	68.0	58.0	123.0	75.0	86.5	53.4	33.1	25.4	14.2
42.0	61.5	69.0	60.5	133.0	80.0	86.5	53.4	33.1	25.4	14.2
43.0	61.5	70.5	60.5	133.0	80.0	86.5	53.4	33.1	25.4	14.2
45.0	64.0	73.0	62.5	138.0	81.0	86.5	53.4	33.1	25.4	14.2
48.0	67.0	75.0	65.6	138.0	84.0	86.5	53.4	33.1	25.4	14.2
50.0	69.0	78.0	68.0	148.0	87.0	86.5	53.4	33.1	25.4	14.2
53.0	73.0	87.0	72.0	148.0	97.0	86.5	53.4	33.1	25.4	18.0
55.0	74.0	83.0	73.0	148.0	90.0	86.5	53.4	33.1	25.4	18.0
60.0	79.0	91.0	78.0	157.0	102.0	86.5	53.4	33.1	25.4	18.0
65.0	85.7	98.5	84.8	163.0	109.0	86.5	53.4	33.1	25.4	18.0
70.0	95.0	108.0	93.0	178.0	118.0	86.5	53.4	33.1	25.4	18.0
75.0	101.6	118.0	100.0	190.0	129.0	108.0	63.9	44.1	28.0	18.0
80.0	108.0	124.0	106.4	196.0	135.0	108.0	63.9	44.1	28.0	18.0
85.0	111.1	128.0	109.5	198.0	139.0	108.0	63.9	44.1	28.0	22.0
90.0	117.5	135.0	115.9	205.0	145.0	108.0	63.9	44.1	28.0	22.0
95.0	120.7	138.0	119.1	208.0	148.0	108.0	63.9	44.1	28.0	22.0
100.0	127.0	144.0	125.4	218.0	154.0	108.0	63.9	44.1	28.0	22.0


d	D1		D2	D4	Dm	L1	L1	L2	L3	M
(inch)	min	max	D2	D4	Dm	L1	L1	L2	L3	M
1.000	1.732	2.008	1.693	4.134	2.440	3.400	2.102	1.303	1.000	0.520
1.125	1.875	2.050	1.811	4.134	2.402	3.400	2.102	1.303	1.000	0.520
1.250	2.008	2.244	1.960	4.330	2.760	3.400	2.102	1.303	1.000	0.520
1.375	2.126	2.421	2.086	4.449	2.840	3.400	2.102	1.303	1.000	0.520
1.500	2.244	2.598	2.200	4.842	2.950	3.400	2.102	1.303	1.000	0.520
1.625	2.375	2.700	2.340	4.842	3.090	3.400	2.102	1.303	1.000	0.599
1.750	2.520	2.874	2.460	5.433	3.230	3.400	2.102	1.303	1.000	0.599
1.875	2.638	2.953	2.582	5.433	3.350	3.400	2.102	1.303	1.000	0.599
2.000	2.717	3.071	2.677	5.827	3.430	3.400	2.102	1.303	1.000	0.599
2.125	2.874	3.425	2.834	5.827	3.819	3.400	2.102	1.303	1.000	0.709
2.250	3.000	3.560	2.960	6.181	3.940	3.400	2.102	1.303	1.000	0.709
2.375	3.125	3.583	3.070	6.181	4.020	3.400	2.102	1.303	1.000	0.709
2.500	3.300	3.800	3.212	6.417	4.180	3.400	2.102	1.303	1.000	0.709
2.625	3.374	3.937	3.338	6.417	4.303	3.400	2.102	1.303	1.000	0.709
2.750	3.740	4.252	3.660	7.008	4.660	3.400	2.102	1.303	1.000	0.709
2.875	4.000	4.646	3.937	7.480	5.079	4.250	2.516	1.736	1.000	0.709
3.000	4.000	4.646	3.937	7.480	5.079	4.250	2.516	1.736	1.102	0.709
3.125	4.252	4.882	4.190	7.677	5.315	4.250	2.516	1.736	1.102	0.709
3.250	4.252	4.882	4.189	7.677	5.315	4.250	2.516	1.736	1.102	0.709
3.375	4.375	5.039	4.311	7.795	5.472	4.250	2.516	1.736	1.102	0.866
3.500	4.500	5.157	4.437	7.795	5.591	4.250	2.516	1.736	1.102	0.866
3.825	4.625	5.315	4.563	8.071	5.709	4.250	2.516	1.736	1.102	0.866
3.750	4.752	5.433	4.689	8.189	5.827	4.250	2.516	1.736	1.102	0.866
4.000	5.000	5.669	4.937	8.583	6.063	4.250	2.516	1.736	1.102	0.866
