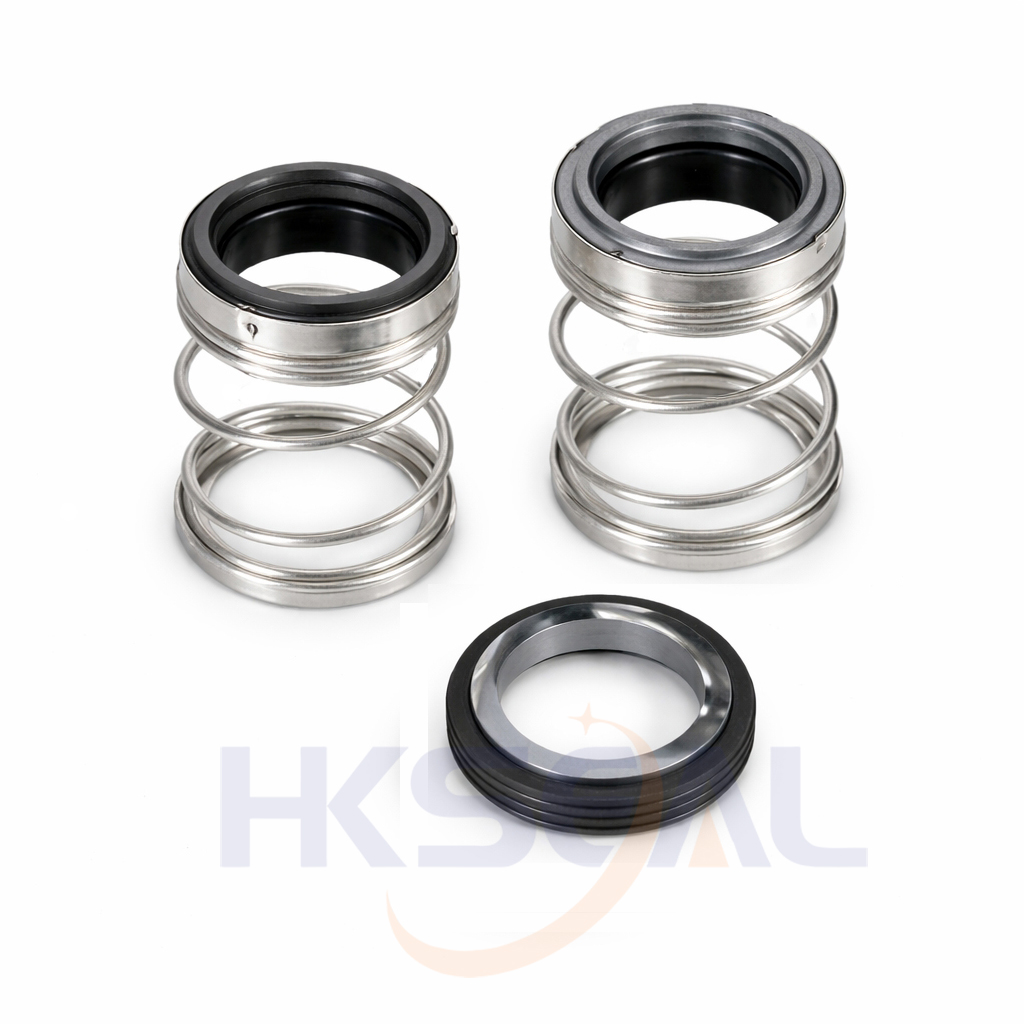

HK10-10T

Type:: Elastomeric bellow mechanical seal

Replacement:: AES P01/P01T，Crane 2(N Seat )，Vu1can10， Temperature: -20℃ to +120℃ Pressure: ≤1.0Mpa Speed: ≤15m/s

Material:: V,Q1,Q2,U2,U1,B,A,P,E,V,F,G

Detail

Size (mm)	D1	D3	D31	L1	L2	Size	D1	D3	D31	L1	L2
Size (mm)	D1	D3	D31	L1	L2	(inch)	D1	D3	D31	L1	L2
10	24.60	22.95	20.50	43.66	8.74	0.375	24.60	22.95	20.00	43.66	8.74
11	27.79	23.90	22.80	43.66	8.74	0.500	27.79	23.90	22.80	43.66	8.74
12	27.79	23.90	22.80	43.66	8.74	0.625	30.95	26.70	26.70	43.66	10.32
13	27.79	23.90	24.00	43.66	8.74	0.750	34.15	31.10	30.40	43.66	10.32
14	30.95	26.70	26.70	43.66	10.32	0.875	37.30	33.40	33.40	43.66	10.32
15	30.95	26.70	26.70	43.66	10.32	1.000	40.50	43.20	39.30	43.66	10.32
16	34.15	31.10	30.40	43.66	10.32	1.125	47.63	46.30	42.00	60.33	11.99
18	34.15	31.10	30.40	43.66	10.32	1.250	50.80	49.40	45.80	60.33	11.99
19	35.70	33.40	30.40	43.66	10.32	1.375	53.98	52.60	49.30	60.33	11.99
20	37.30	33.40	33.40	43.66	10.32	1.500	57.15	55.80	52.80	60.33	11.99
22	40.50	39.20	33.40	43.66	10.32	1.625	60.35	62.20	55.50	60.33	11.99
24	40.50	39.20	38.00	43.66	10.32	1.750	63.50	66.00	61.00	70.64	11.99
25	47.63	46.30	39.30	43.66	10.32	1.875	66.70	66.60	64.00	70.64	11.99
28	50.80	49.40	42.00	60.33	11.99	2.000	69.85	73.00	66.00	70.64	13.50
30	50.80	49.40	43.90	60.33	11.99	2.125	73.05	73.30	71.50	71.00	13.50
32	53.95	49.40	45.80	60.33	11.99	2.250	76.20	78.40	79.60	71.00	13.50
33	53.98	52.60	45.80	60.33	11.99	2.375	79.40	82.00	79.60	71.00	13.50
35	53.98	52.60	49.30	60.33	11.99	2.500	82.55	84.90	81.50	71.00	13.50
38	57.15	55.80	52.80	60.33	11.99	2.625	92.10	88.40	84.60	71.00	15.90
40	60.35	62.20	55.80	60.33	11.99	2.750	95.25	92.60	90.00	70.00	15.90
42	63.50	66.00	58.80	70.64	11.99	2.875	98.45	94.85	92.00	73.00	15.90
43	63.50	66.00	58.80	70.64	11.99	3.000	101.65	102.70	96.80	73.03	15.90
44	63.50	66.00	58.80	70.64	11.99
45	63.50	66.00	61.00	70.64	11.99
48	66.70	66.00	64.00	70.64	11.99
50	69.85	71.65	66.00	70.64	13.50
53	73.05	73.30	71.50	70.64	13.50
55	76.00	78.40	71.50	71.00	13.50
58	79.40	82.00	79.60	71.00	13.50
60	79.40	82.00	79.60	71.00	13.50
63	82.50	84.90	81.50	71.00	13.50
65	92.10	88.40	84.60	70.00	15.90
70	95.52	92.60	90.00	70.00	15.90
73	98.45	94.85	92.00	73.03	15.90
75	101.65	101.90	96.80	73.03	15.90
