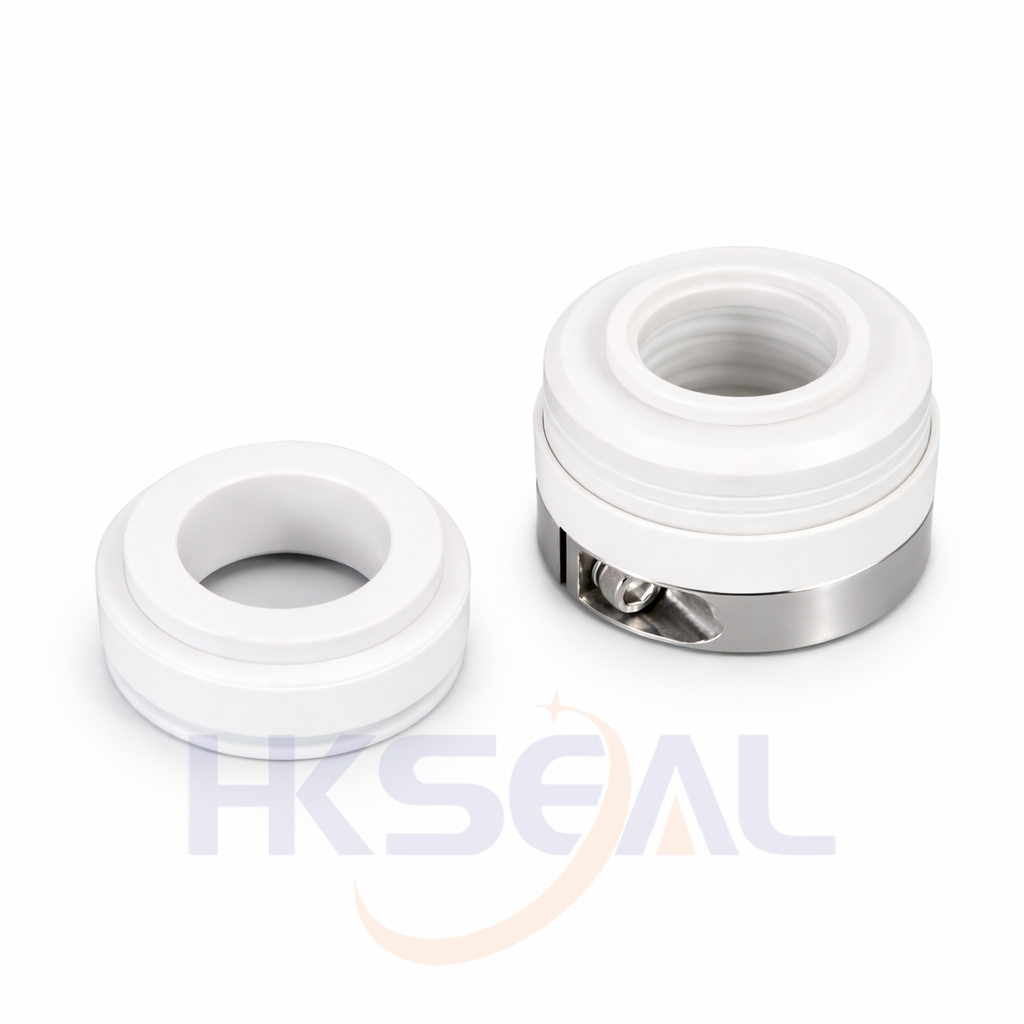

HK10T-10R
- Type:
- PTFE Bellow Mechanical Seal
- Replacement:
- Crane 10R/10T Temperature: -20℃ to +120℃ Pressure: ≤0.5Mpa Speed: ≤10m/s
- Material:
- Q2,V2,F,G,TEFLON
- Detail
.jpg)
| Size | D3 | D2 | D1 | L1 | L2 |
| (Inch) | |||||
| 25.40 | 60 | 54 | 42.86 | 33.2 | 17.6 |
| 28.60 | 67 | 65 | 50.80 | 36.2 | 27.0 |
| 31.75 | 69 | 68 | 53.98 | 37.2 | 27.0 |
| 34.93 | 72 | 71 | 57.15 | 38.2 | 27.0 |
| 38.10 | 76 | 78 | 63.50 | 38.2 | 27.0 |
| 41.28 | 80 | 81 | 66.68 | 40.2 | 27.0 |
| 44.45 | 84 | 84 | 69.85 | 40.2 | 27.0 |
| 47.63 | 86 | 87 | 73.03 | 43.2 | 27.0 |
| 50.80 | 90 | 97 | 79.38 | 43.2 | 33.3 |
