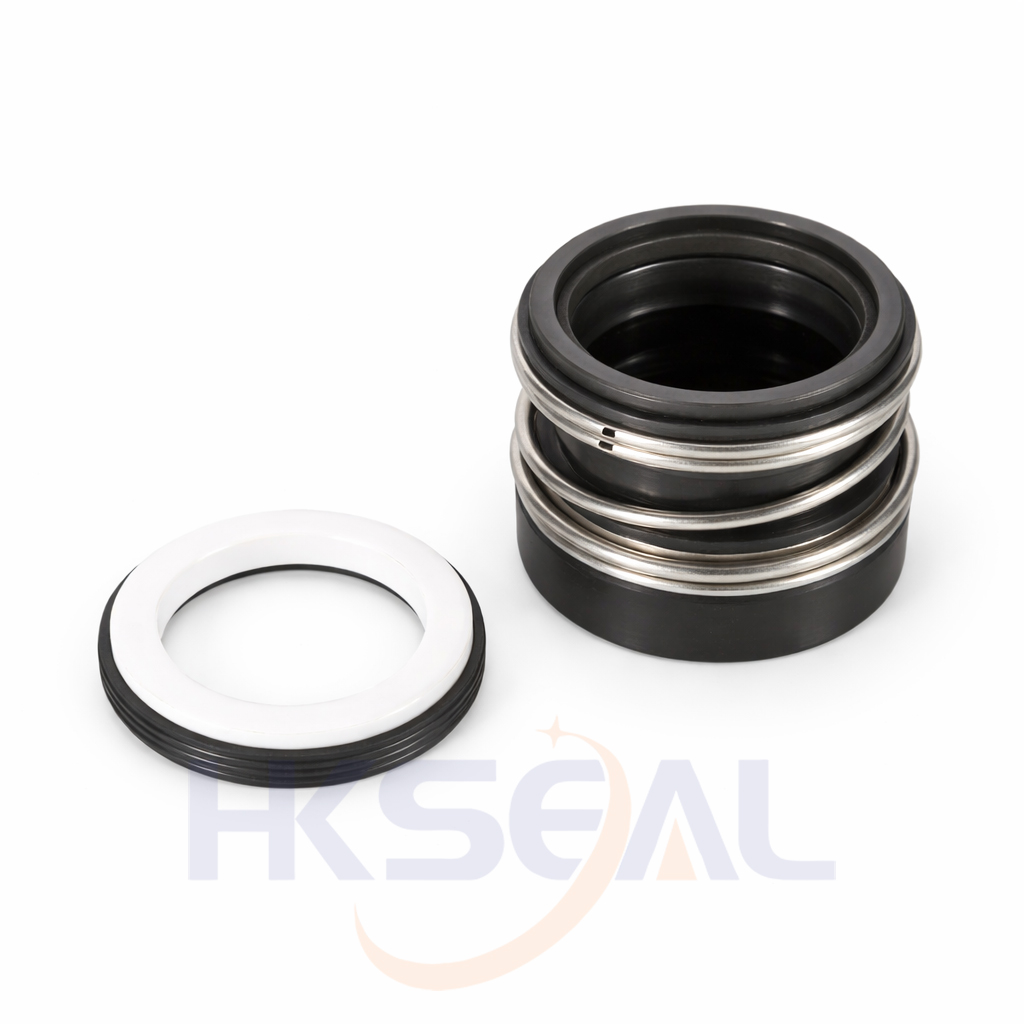

HK150A
-
Type:
-
Elastomeric bellow mechanical seal
- Replacement:
-
Vu1can 1520(Inch)，AES BP02，BURGMANN MG1S20，Crane 2(N Seat)，Flowserve150
Temperature:
-40℃ to +150℃
Pressure:
≤1.2Mpa
Speed:
≤15m/s
- Material:
-
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
| Size |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
| (Inch) |
| 0.375 |
24.60 |
16.00 |
20.00 |
25.40 |
8.74 |
7.47 |
| 0.500 |
27.79 |
19.05 |
22.00 |
25.40 |
8.74 |
7.47 |
| 0.625 |
30.95 |
22.23 |
26.00 |
25.40 |
10.32 |
8.97 |
| 0.750 |
34.15 |
25.40 |
32.00 |
25.40 |
10.32 |
8.97 |
| 0.875 |
37.30 |
28.58 |
36.00 |
25.40 |
10.32 |
8.97 |
| 1.000 |
40.50 |
31.75 |
39.00 |
25.40 |
10.32 |
8.97 |
| 1.125 |
47.63 |
35.72 |
42.00 |
33.34 |
11.99 |
10.46 |
| 1.250 |
50.80 |
38.89 |
46.00 |
33.34 |
11.99 |
10.46 |
| 1.375 |
53.98 |
42.07 |
49.00 |
33.34 |
11.99 |
10.46 |
| 1.500 |
57.15 |
45.24 |
54.00 |
33.34 |
11.99 |
10.46 |
| 1.625 |
60.35 |
48.42 |
56.00 |
33.34 |
11.99 |
10.46 |
| 1.750 |
63.50 |
51.59 |
61.00 |
40.48 |
11.99 |
10.46 |
| 1.875 |
66.70 |
54.75 |
64.00 |
40.48 |
11.99 |
10.46 |
| 2.000 |
69.85 |
58.00 |
66.00 |
40.48 |
13.50 |
11.96 |
| 2.125 |
73.05 |
62.00 |
69.00 |
41.00 |
13.50 |
11.96 |
| 2.250 |
76.20 |
65.00 |
78.00 |
41.00 |
13.50 |
11.96 |
| 2.375 |
79.40 |
68.00 |
80.00 |
41.00 |
13.50 |
11.96 |
| 2.500 |
82.55 |
71.20 |
83.00 |
41.00 |
13.50 |
11.96 |
| 2.625 |
92.10 |
78.35 |
85.00 |
49.00 |
15.90 |
14.50 |
| 2.750 |
95.25 |
81.10 |
90.00 |
49.00 |
15.90 |
14.50 |
| 2.875 |
98.45 |
84.50 |
96.00 |
49.00 |
15.90 |
14.50 |
| 3.000 |
101.65 |
88.10 |
99.00 |
49.00 |
15.90 |
14.50 |
| 3.125 |
111.15 |
93.68 |
104.00 |
56.00 |
20.00 |
18.50 |
| 3.250 |
114.30 |
96.85 |
104.00 |
56.00 |
20.00 |
18.50 |
| 3.375 |
117.50 |
100.00 |
109.00 |
56.00 |
20.00 |
18.50 |
| 3.500 |
120.65 |
103.18 |
114.00 |
56.00 |
20.00 |
18.50 |
| 3.625 |
123.85 |
106.35 |
114.00 |
59.00 |
20.00 |
18.50 |
| 3.750 |
127.00 |
109.52 |
119.00 |
59.00 |
20.00 |
18.50 |
| 3.875 |
130.20 |
112.65 |
122.00 |
62.00 |
20.00 |
18.50 |
| 4.000 |
133.35 |
115.88 |
124.00 |
62.00 |
20.00 |
18.50 |
