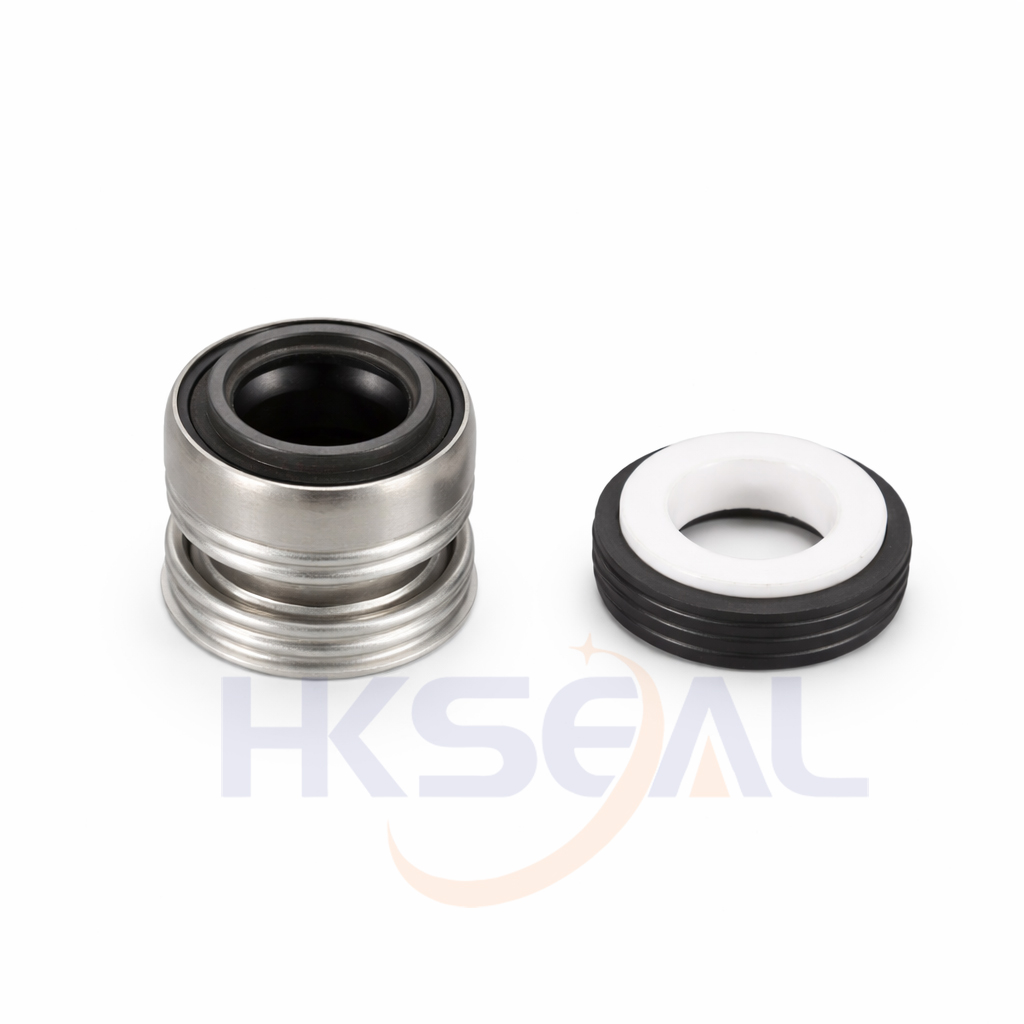

HK166
- Type:
- Elastomeric bellow mechanical seal
- Replacement:
- Burgmann BT-PNT,Flowserve 16 Temperature: -20℃ to +120℃ Pressure: ≤0.5-10Mpa Speed: ≤10m/s
- Material:
- V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
- Detail
| Size | D1 | D3 | L1 | L2 |
| (Inch) | ||||
| 0.375 | 22.23 | 23.29 | 16.66 | 7.14 |
| 0.500 | 25.40 | 23.29 | 16.66 | 6.35 |
| 0.625 | 31.75 | 30.10 | 18.24 | 10.31 |
| 0.750 | 34.93 | 33.07 | 18.24 | 10.31 |
| 0.875 | 38.10 | 36.30 | 20.63 | 10.31 |
| 1.000 | 41.28 | 39.42 | 20.63 | 11.10 |
