HK1A
-
Type:
-

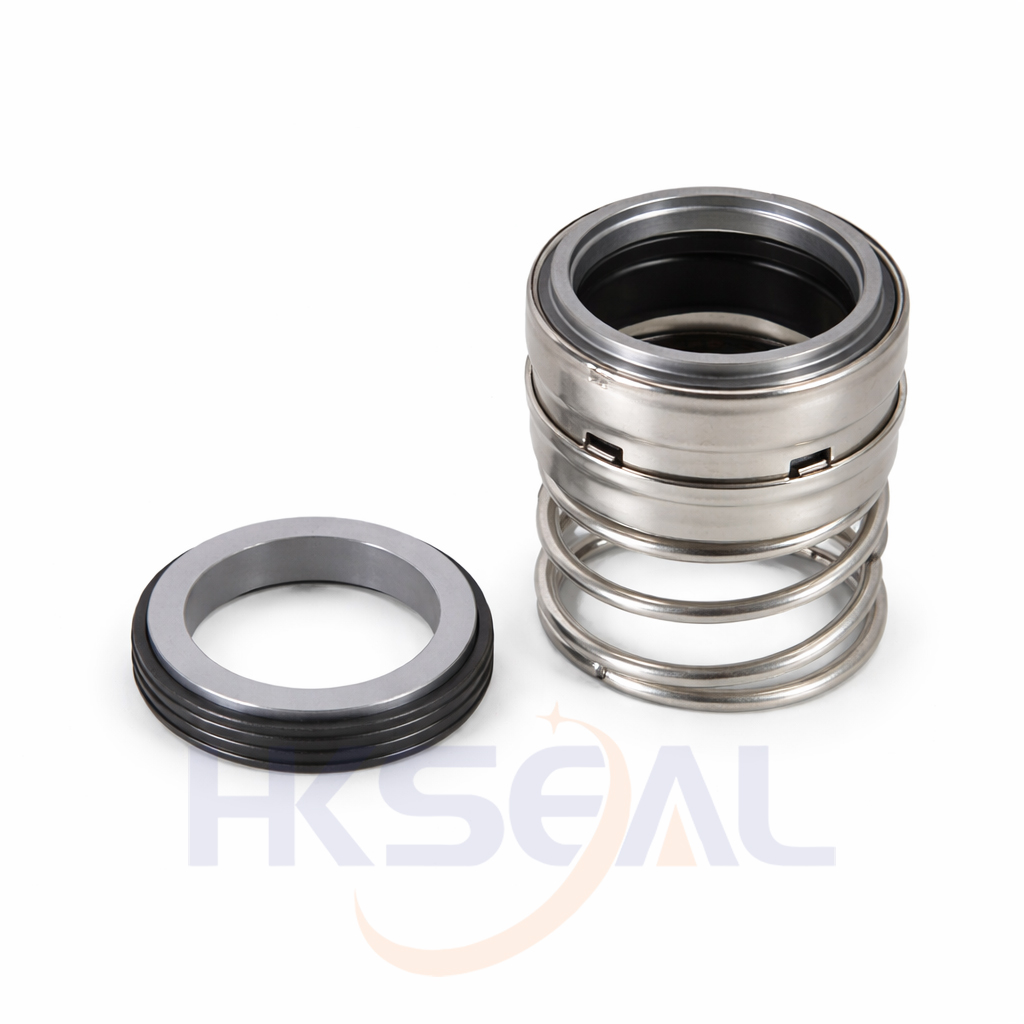

Elastomeric bellow mechanical seal
- Replacement:
-
AES P01/P01T，Burgmann MG910/D1-G50，Crane1A(N seat)，Vulcan10，Roten51，Flowserve100
Temperature:
-20℃ to +120℃
Pressure:
≤1.4Mpa
Speed:
≤15m/s
- Material:
-
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
| Size |
d |
D1 |
D2 |
D3 |
L1 |
L2 |
|
Size |
D3 |
L1 |
| (inch) |
|
(mm) |
| 0.500 |
12.7 |
27.8 |
13.5 |
25.0 |
44.0 |
8.7 |
|
16 |
29 |
44.0 |
| 0.625 |
15.8 |
31.0 |
17.0 |
29.0 |
44.0 |
10.3 |
|
18 |
32 |
44.0 |
| 0.750 |
19.0 |
34.2 |
20.0 |
32.0 |
44.0 |
10.3 |
|
19 |
32 |
44.0 |
| 0.813 |
20.6 |
35.7 |
21.5 |
33.0 |
44.0 |
10.3 |
|
20 |
33 |
44.0 |
| 0.875 |
22.2 |
37.3 |
23.0 |
35.0 |
44.0 |
10.3 |
|
24 |
38 |
44.0 |
| 1.000 |
25.4 |
40.5 |
26.5 |
38.0 |
44.0 |
10.3 |
|
25 |
38 |
44.0 |
| 1.125 |
28.5 |
47.7 |
29.5 |
46.0 |
60.0 |
11.9 |
|
27 |
46 |
60.0 |
| 1.250 |
31.7 |
50.8 |
32.5 |
49.0 |
60.0 |
11.9 |
|
28 |
46 |
60.0 |
| 1.375 |
34.9 |
54.0 |
36.5 |
52.0 |
60.0 |
11.9 |
|
29 |
46 |
60.0 |
| 1.500 |
38.1 |
57.2 |
39.5 |
56.0 |
60.0 |
11.9 |
|
30 |
49 |
60.0 |
| 1.625 |
41.2 |
60.4 |
42.5 |
59.0 |
60.0 |
11.9 |
|
32 |
49 |
60.0 |
| 1.750 |
44.4 |
63.5 |
46.0 |
62.0 |
71.0 |
11.9 |
|
34 |
52 |
71.0 |
| 1.875 |
47.6 |
66.7 |
49.0 |
65.0 |
71.0 |
11.9 |
|
35 |
52 |
71.0 |
| 2.000 |
50.8 |
69.9 |
52.0 |
68.0 |
71.0 |
13.5 |
|
38 |
56 |
71.0 |
| 2.125 |
53.9 |
73.1 |
55.5 |
71.0 |
71.0 |
13.5 |
|
40 |
59 |
71.0 |
| 2.250 |
57.1 |
76.2 |
58.5 |
75.0 |
71.0 |
13.5 |
|
42 |
62 |
71.0 |
| 2.375 |
60.3 |
79.4 |
61.5 |
78.0 |
71.0 |
13.5 |
|
45 |
62 |
71.0 |
| 2.500 |
63.5 |
82.6 |
65.0 |
81.0 |
71.0 |
13.5 |
|
48 |
65 |
71.0 |
| 2.625 |
66.6 |
92.1 |
68.0 |
86.0 |
70.0 |
15.9 |
|
50 |
68 |
70.0 |
| 2.750 |
69.8 |
95.3 |
71.0 |
89.0 |
70.0 |
15.9 |
|
54 |
71 |
70.0 |
| 2.875 |
73.0 |
98.5 |
74.5 |
92.0 |
73.0 |
15.9 |
|
55 |
75 |
73.0 |
| 3.000 |
76.2 |
101.6 |
77.5 |
95.0 |
73.0 |
15.9 |
|
60 |
78 |
73.0 |
| 3.125 |
79.3 |
111.2 |
80.5 |
102.0 |
79.0 |
19.9 |
|
65 |
86 |
79.0 |
| 3.250 |
82.5 |
114.3 |
84.0 |
105.0 |
79.0 |
19.9 |
|
70 |
89 |
79.0 |
| 3.375 |
85.7 |
117.5 |
87.0 |
108.0 |
79.0 |
19.9 |
|
73 |
92 |
79.0 |
| 3.500 |
88.9 |
120.7 |
90.5 |
111.0 |
79.0 |
19.9 |
|
75 |
95 |
79.0 |
| 3.625 |
92.0 |
123.9 |
93.5 |
114.0 |
83.0 |
19.9 |
|
80 |
105 |
83.0 |
| 3.750 |
95.2 |
127.0 |
96.5 |
117.0 |
83.0 |
19.9 |
|
90 |
114 |
83.0 |
| 3.875 |
98.4 |
130.2 |
100.0 |
121.0 |
86.0 |
19.9 |
|
95 |
118 |
86.0 |
| 4.000 |
101.6 |
133.4 |
103.0 |
124.0 |
86.0 |
19.9 |
|
100 |
124 |
86.0 |
