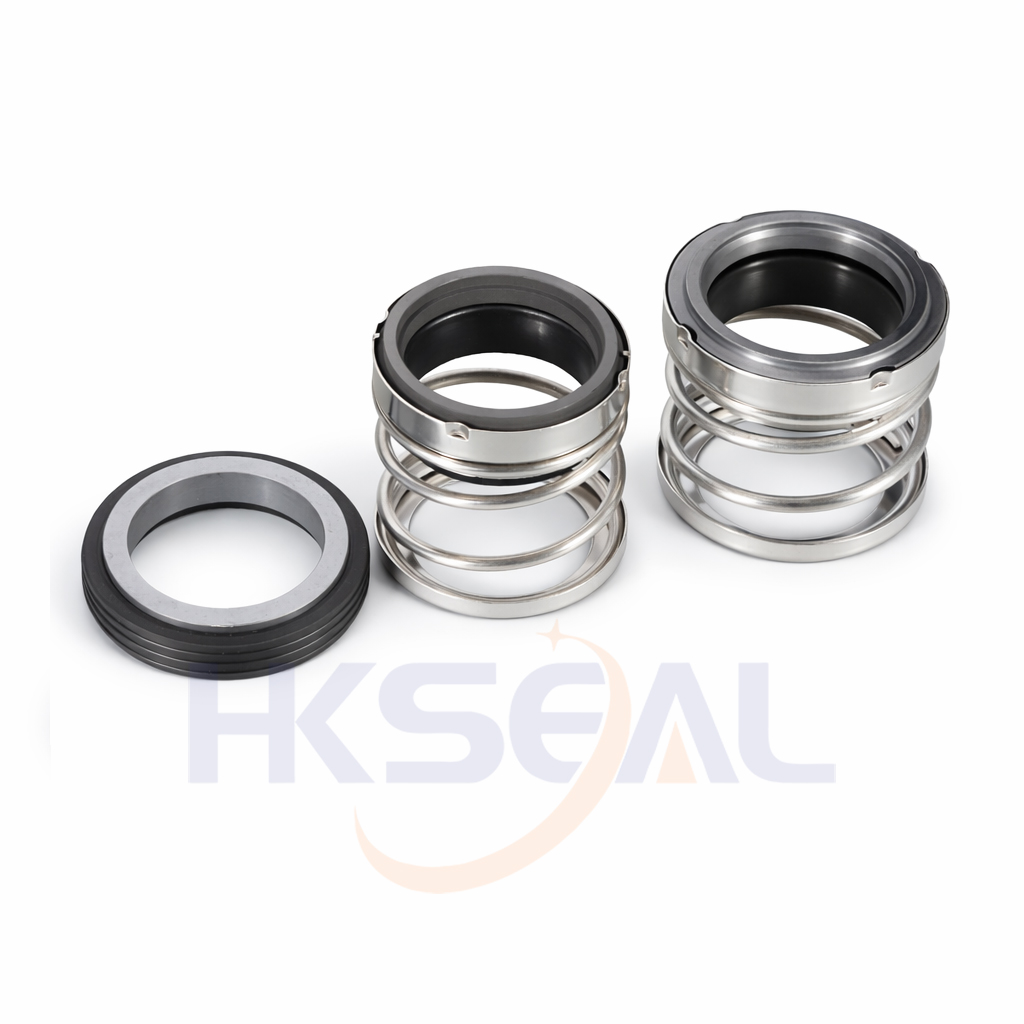

HK20-20T
-
Type:
-
Elastomeric bellow mechanical seal
- Replacement:
-
AES P02/P02T，Crane 2(N Seat )，Vu1can 20，BURGMANN MG920/D1-G50，Roten 21，Flowserve 200
Temperature:
-20℃ to +120℃
Pressure:
≤1.0Mpa
Speed:
≤15m/s
- Material:
-
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
.jpg)
| Size (mm) |
D1 |
D3 |
D31 |
L1 |
L2 |
|
Size |
D1 |
D3 |
D31 |
L1 |
L2 |
|
(inch) |
| 10 |
24.60 |
22.95 |
20.50 |
25.60 |
8.74 |
|
0.375 |
24.60 |
22.95 |
20.00 |
25.60 |
8.74 |
| 11 |
27.79 |
23.90 |
22.80 |
25.60 |
8.74 |
|
0.500 |
27.79 |
23.90 |
22.80 |
25.60 |
8.74 |
| 12 |
27.79 |
23.90 |
22.80 |
25.60 |
8.74 |
|
0.625 |
30.95 |
26.70 |
26.70 |
25.60 |
10.32 |
| 13 |
27.79 |
23.90 |
24.00 |
25.60 |
8.74 |
|
0.750 |
34.15 |
31.10 |
30.40 |
25.60 |
10.32 |
| 14 |
30.95 |
26.70 |
26.70 |
25.60 |
10.32 |
|
0.875 |
37.30 |
33.40 |
33.40 |
25.60 |
10.32 |
| 15 |
30.95 |
26.70 |
26.70 |
25.60 |
10.32 |
|
1.000 |
40.50 |
43.20 |
39.30 |
25.60 |
10.32 |
| 16 |
34.15 |
31.10 |
30.40 |
25.60 |
10.32 |
|
1.125 |
47.63 |
46.30 |
42.00 |
33.54 |
11.99 |
| 18 |
34.15 |
31.10 |
30.40 |
25.60 |
10.32 |
|
1.250 |
50.80 |
49.40 |
45.80 |
33.54 |
11.99 |
| 19 |
35.70 |
33.40 |
30.40 |
25.60 |
10.32 |
|
1.375 |
53.98 |
52.60 |
49.30 |
33.54 |
11.99 |
| 20 |
37.30 |
33.40 |
33.40 |
25.60 |
10.32 |
|
1.500 |
57.15 |
55.80 |
52.80 |
33.54 |
11.99 |
| 22 |
40.50 |
39.20 |
33.40 |
25.60 |
10.32 |
|
1.625 |
60.35 |
62.20 |
55.50 |
33.54 |
11.99 |
| 24 |
40.50 |
39.20 |
38.00 |
25.60 |
10.32 |
|
1.750 |
63.50 |
66.00 |
61.00 |
40.68 |
11.99 |
| 25 |
47.63 |
46.30 |
39.30 |
25.60 |
10.32 |
|
1.875 |
66.70 |
66.60 |
64.00 |
40.68 |
11.99 |
| 28 |
50.80 |
49.40 |
42.00 |
33.54 |
11.99 |
|
2.000 |
69.85 |
73.00 |
66.00 |
40.68 |
13.50 |
| 30 |
50.80 |
49.40 |
43.90 |
33.54 |
11.99 |
|
2.125 |
73.05 |
73.30 |
71.50 |
41.20 |
13.50 |
| 32 |
53.95 |
49.40 |
45.80 |
33.54 |
11.99 |
|
2.250 |
76.20 |
78.40 |
79.60 |
41.20 |
13.50 |
| 33 |
53.98 |
52.60 |
45.80 |
33.54 |
11.99 |
|
2.375 |
79.40 |
82.00 |
79.60 |
41.20 |
13.50 |
| 35 |
53.98 |
52.60 |
49.30 |
33.54 |
11.99 |
|
2.500 |
82.55 |
84.90 |
81.50 |
41.20 |
13.50 |
| 38 |
57.15 |
55.80 |
52.80 |
33.54 |
11.99 |
|
2.625 |
92.10 |
88.40 |
84.60 |
49.20 |
15.90 |
| 40 |
60.35 |
62.20 |
55.80 |
33.54 |
11.99 |
|
2.750 |
95.25 |
92.60 |
90.00 |
49.20 |
15.90 |
| 42 |
63.50 |
66.00 |
58.80 |
40.68 |
11.99 |
|
2.875 |
98.45 |
94.85 |
92.00 |
49.20 |
15.90 |
| 43 |
63.50 |
66.00 |
58.80 |
40.68 |
11.99 |
|
3.000 |
101.65 |
102.70 |
96.80 |
49.20 |
15.90 |
| 44 |
63.50 |
66.00 |
58.80 |
40.68 |
11.99 |
|
3.125 |
111.16 |
104.00 |
- |
56.00 |
20.00 |
| 45 |
63.50 |
66.00 |
61.00 |
40.68 |
11.99 |
|
3.250 |
114.30 |
104.00 |
- |
56.00 |
20.00 |
| 48 |
66.70 |
66.00 |
64.00 |
40.68 |
11.99 |
|
3.375 |
117.50 |
108.00 |
- |
56.00 |
20.00 |
| 50 |
69.85 |
71.65 |
66.00 |
40.68 |
13.50 |
|
3.500 |
120.65 |
112.00 |
- |
56.00 |
20.00 |
| 53 |
73.05 |
73.30 |
71.50 |
41.20 |
13.50 |
|
3.625 |
123.85 |
114.00 |
- |
59.00 |
20.00 |
| 55 |
76.00 |
78.40 |
71.50 |
41.20 |
13.50 |
|
3.750 |
127.00 |
119.00 |
- |
59.00 |
20.00 |
| 58 |
79.40 |
82.00 |
79.60 |
41.20 |
13.50 |
|
3.875 |
130.20 |
121.00 |
- |
62.00 |
20.00 |
| 60 |
79.40 |
82.00 |
79.60 |
41.20 |
13.50 |
|
4.000 |
133.35 |
124.00 |
- |
62.00 |
20.00 |
| 63 |
82.50 |
84.90 |
81.50 |
41.20 |
13.50 |
|
| 65 |
92.10 |
88.40 |
84.60 |
49.20 |
15.90 |
|
| 70 |
95.52 |
92.60 |
90.00 |
49.20 |
15.90 |
|
| 73 |
98.45 |
94.85 |
92.00 |
49.20 |
15.90 |
|
| 75 |
101.65 |
101.90 |
96.80 |
49.20 |
15.90 |
|
| 80 |
114.30 |
104.00 |
- |
56.00 |
20.00 |
|
| 85 |
117.50 |
108.00 |
- |
56.00 |
20.00 |
|
| 90 |
123.85 |
112.00 |
- |
59.00 |
20.00 |
|
| 95 |
127.00 |
119.00 |
- |
59.00 |
20.00 |
|
| 100 |
133.35 |
124.00 |
- |
62.00 |
20.00 |
|
|
|
