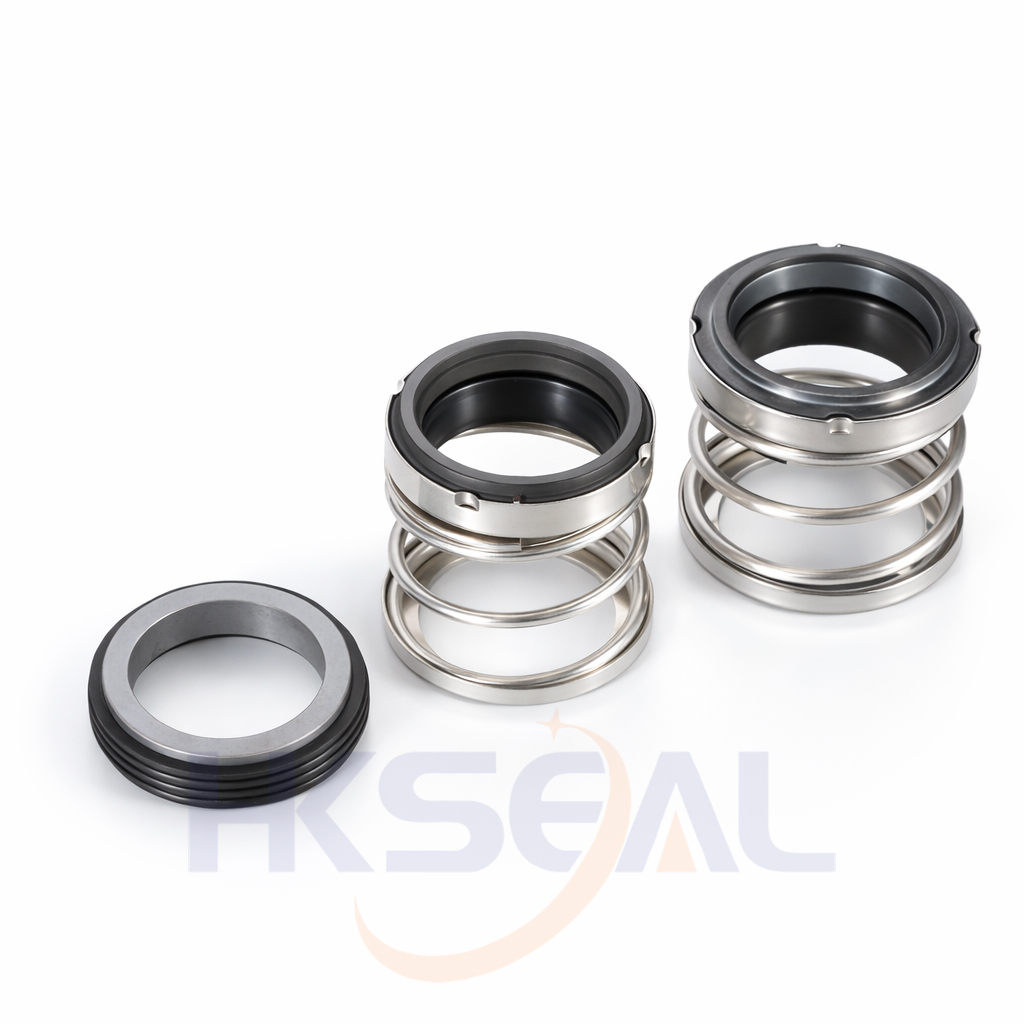

HK21-21T
-
Type:
-
Elastomeric bellow mechanical seal
- Replacement:
-
AES P04/P04T，Crane 21，Vu1can 11，Roten 21A，Flowserve 110
Temperature:
-20℃ to +120℃
Pressure:
≤1.0Mpa
Speed:
≤15m/s
- Material:
-
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
.jpg)
| Size (inch) |
d |
D1 |
D3 |
D31 |
L1 |
L2 |
| 0.500 |
12.7 |
25.40 |
24.00 |
22.80 |
20.62 |
7.95 |
| 0.625 |
15.8 |
31.75 |
26.70 |
26.70 |
22.23 |
10.31 |
| 0.750 |
19.1 |
34.93 |
31.20 |
30.40 |
22.23 |
10.31 |
| 0.875 |
22.2 |
38.10 |
33.50 |
33.40 |
23.80 |
10.31 |
| 1.000 |
25.4 |
41.28 |
43.20 |
39.30 |
25.40 |
11.10 |
| 1.125 |
28.6 |
44.45 |
46.50 |
42.00 |
26.97 |
11.10 |
| 1.250 |
31.7 |
47.63 |
49.50 |
45.80 |
26.97 |
11.10 |
| 1.375 |
34.9 |
50.80 |
52.70 |
49.30 |
28.58 |
11.10 |
| 1.500 |
38.1 |
53.98 |
56.00 |
52.80 |
28.58 |
11.10 |
| 1.625 |
41.2 |
60.33 |
62.20 |
55.50 |
34.93 |
12.70 |
| 1.750 |
44.4 |
63.50 |
66.00 |
61.00 |
34.93 |
12.70 |
| 1.875 |
47.6 |
66.68 |
66.00 |
64.00 |
38.10 |
12.70 |
| 2.000 |
50.8 |
69.85 |
73.00 |
66.00 |
38.10 |
12.70 |
| 2.125 |
53.9 |
76.20 |
73.50 |
71.50 |
42.85 |
14.27 |
| 2.250 |
57.1 |
79.38 |
79.60 |
79.60 |
42.85 |
14.27 |
| 2.375 |
60.3 |
82.55 |
82.00 |
79.60 |
46.05 |
14.27 |
| 2.500 |
63.5 |
85.73 |
85.00 |
81.50 |
46.05 |
14.27 |
| 2.625 |
66.6 |
85.73 |
88.50 |
84.60 |
49.20 |
15.88 |
| 2.750 |
69.8 |
88.90 |
92.70 |
90.00 |
49.20 |
15.88 |
| 3.000 |
76.2 |
98.40 |
102.00 |
96.80 |
52.37 |
15.88 |
