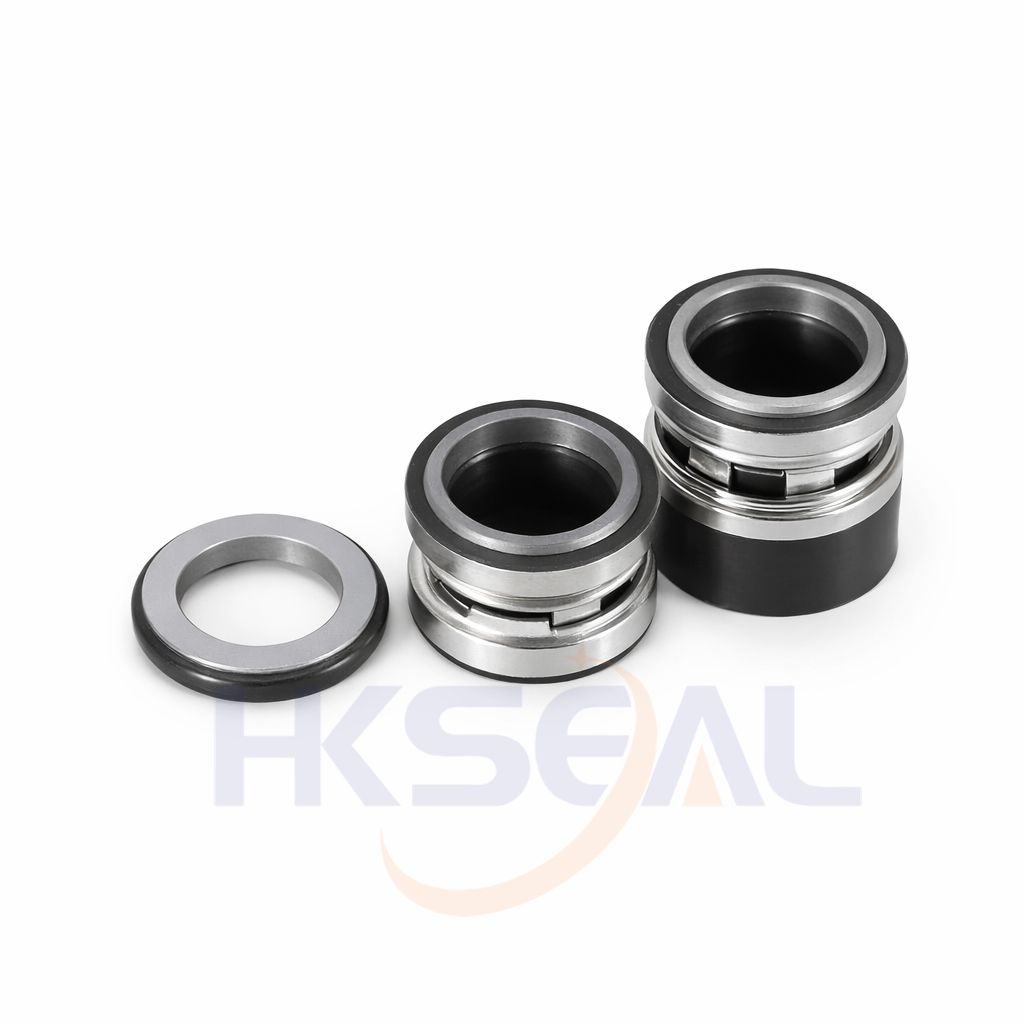

HK210
-
Type:
-
Elastomeric bellow mechanical seal
- Replacement:
-
AES B05，Vu1can 14 DIN，Crane 2100，Flowserve140
Temperature:
-20℃ to +120℃
Pressure:
≤1.8Mpa
Speed:
≤15m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
(210N).jpg)
| Siz |
D1 |
D2 |
D3 |
L1 |
L11 |
L12 |
L2 |
| (mm) |
| 10 |
21 |
15 |
20 |
15 |
27.5 |
35.0 |
5.0 |
| 12 |
23 |
17 |
22 |
15 |
26.5 |
34.0 |
6.0 |
| 14 |
25 |
19 |
24 |
15 |
29.0 |
34.0 |
6.0 |
| 15 |
26 |
20 |
25 |
15 |
29.0 |
34.0 |
6.0 |
| 16 |
27 |
23 |
26 |
15 |
29.0 |
34.0 |
6.0 |
| 18 |
33 |
25 |
32 |
20 |
31.5 |
39.0 |
6.0 |
| 20 |
35 |
27 |
34 |
20 |
31.5 |
39.0 |
6.0 |
| 22 |
37 |
29 |
36 |
20 |
31.5 |
39.0 |
6.0 |
| 24 |
39 |
31 |
38 |
20 |
34.0 |
44.0 |
6.0 |
| 25 |
40 |
32 |
39 |
20 |
34.0 |
44.0 |
6.0 |
| 28 |
43 |
35 |
42 |
26 |
36.5 |
44.0 |
6.0 |
| 30 |
45 |
37 |
44 |
26 |
35.5 |
43.0 |
7.0 |
| 32 |
48 |
40 |
46 |
26 |
35.5 |
48.0 |
7.0 |
| 33 |
48 |
40 |
47 |
26 |
35.5 |
48.0 |
7.0 |
| 35 |
50 |
42 |
49 |
26 |
34.5 |
47.0 |
8.0 |
| 38 |
56 |
47 |
54 |
30 |
37.0 |
47.0 |
8.0 |
| 40 |
58 |
49 |
56 |
30 |
37.0 |
47.0 |
8.0 |
| 43 |
61 |
52 |
59 |
30 |
37.0 |
52.0 |
8.0 |
| 45 |
63 |
54 |
61 |
30 |
37.0 |
52.0 |
8.0 |
| 48 |
66 |
57 |
64 |
30 |
35.0 |
50.0 |
10.0 |
| 50 |
70 |
60 |
66 |
30 |
37.5 |
50.0 |
10.0 |
| 53 |
73 |
63 |
69 |
30 |
37.5 |
60.0 |
10.0 |
| 55 |
75 |
65 |
71 |
30 |
37.5 |
60.0 |
10.0 |
| 58 |
78 |
68 |
78 |
33 |
42.5 |
60.0 |
10.0 |
| 60 |
80 |
70 |
80 |
33 |
40.5 |
58.0 |
12.0 |
| 63 |
83 |
73 |
83 |
33 |
40.5 |
58.0 |
12.0 |
| 65 |
85 |
75 |
85 |
33 |
40.5 |
68.0 |
12.0 |
| 68 |
90 |
79 |
88 |
33 |
40.5 |
68.0 |
12.0 |
| 70 |
92 |
81 |
90 |
33 |
48.0 |
68.0 |
12.0 |
| 75 |
97 |
86 |
99 |
40 |
48.0 |
68.0 |
12.0 |
| 80 |
105 |
92 |
104 |
40 |
47.5 |
77.5 |
12.5 |
| 85 |
110 |
97 |
109 |
40 |
47.5 |
77.5 |
12.5 |
| 90 |
115 |
102 |
114 |
40 |
52.5 |
77.5 |
12.5 |
| 95 |
120 |
117 |
119 |
40 |
52.5 |
77.5 |
12.5 |
| 100 |
125 |
122 |
124 |
40 |
52.5 |
77.5 |
12.5 |
