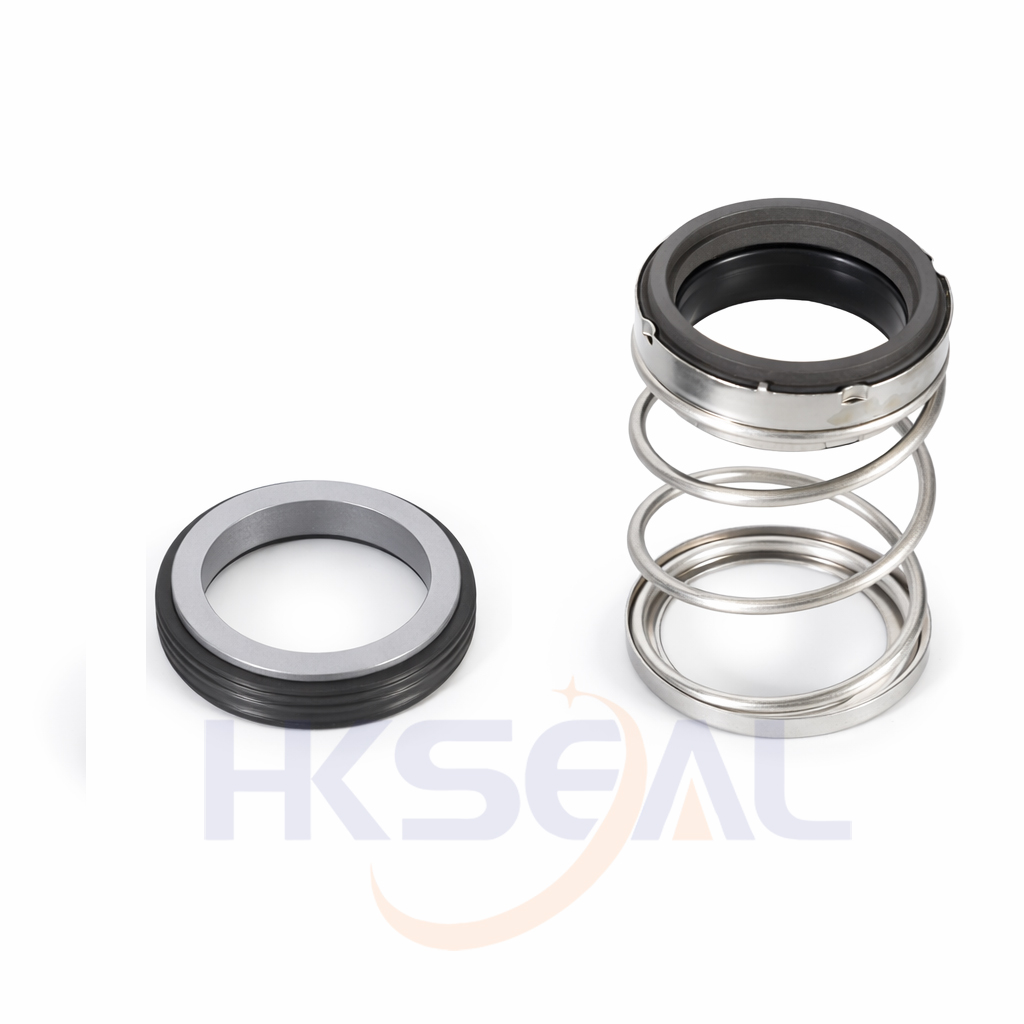

HK24
-
Type:
-
Elastomeric bellow mechanical seal
- Replacement:
-
Vulcan 24，AES P03，Crane 521，Burgmann MG912/D1-G60，Roten 52/L4K，Flowserve 240
Temperature:
-20℃ to +120℃
Pressure:
≤1.0Mpa
Speed:
≤15m/s
- Material:
-
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
| Size |
D1 |
D2 |
D3 |
L1 |
L2 |
| (mm) |
| 10 |
21 |
17 |
20.05 |
23.9 |
8.6 |
| 12 |
23 |
19 |
21.70 |
23.9 |
8.6 |
| 14 |
25 |
21 |
24.00 |
26.4 |
8.6 |
| 16 |
27 |
23 |
26.65 |
26.4 |
8.6 |
| 18 |
33 |
27 |
30.35 |
27.5 |
10.0 |
| 20 |
35 |
29 |
33.50 |
27.5 |
10.0 |
| 22 |
37 |
31 |
33.55 |
27.5 |
10.0 |
| 24 |
39 |
33 |
38.00 |
30.0 |
10.0 |
| 25 |
40 |
34 |
39.50 |
30.0 |
10.0 |
| 28 |
43 |
37 |
42.20 |
32.5 |
10.0 |
| 30 |
45 |
39 |
43.95 |
32.5 |
10.0 |
| 32 |
48 |
42 |
46.00 |
32.5 |
10.0 |
| 33 |
48 |
42 |
46.00 |
32.5 |
10.0 |
| 35 |
50 |
44 |
49.10 |
32.5 |
10.0 |
| 38 |
56 |
49 |
53.00 |
34.0 |
11.0 |
| 40 |
58 |
51 |
56.00 |
34.0 |
11.0 |
| 43 |
61 |
54 |
58.80 |
34.0 |
11.0 |
| 45 |
63 |
56 |
61.20 |
34.0 |
11.0 |
| 48 |
66 |
59 |
64.00 |
34.0 |
11.0 |
| 50 |
70 |
62 |
66.00 |
34.5 |
13.0 |
| 53 |
73 |
65 |
70.65 |
34.5 |
13.0 |
| 55 |
75 |
67 |
71.65 |
34.5 |
13.0 |
| 58 |
78 |
70 |
79.60 |
39.5 |
13.0 |
| 60 |
80 |
72 |
80.40 |
39.5 |
13.0 |
| 63 |
83 |
75 |
81.50 |
39.5 |
13.0 |
| 65 |
85 |
77 |
84.30 |
39.5 |
13.0 |
| 68 |
90 |
81 |
89.65 |
37.2 |
15.3 |
| 70 |
92 |
83 |
89.65 |
44.7 |
15.3 |
| 75 |
97 |
88 |
96.80 |
44.7 |
15.3 |
| 80 |
105 |
95 |
104.00 |
44.3 |
15.7 |
| 85 |
110 |
100 |
107.95 |
44.3 |
15.7 |
| 90 |
115 |
105 |
111.10 |
49.3 |
15.7 |
| 95 |
120 |
110 |
119.00 |
49.3 |
15.7 |
| 100 |
125 |
115 |
124.00 |
49.3 |
15.7 |
