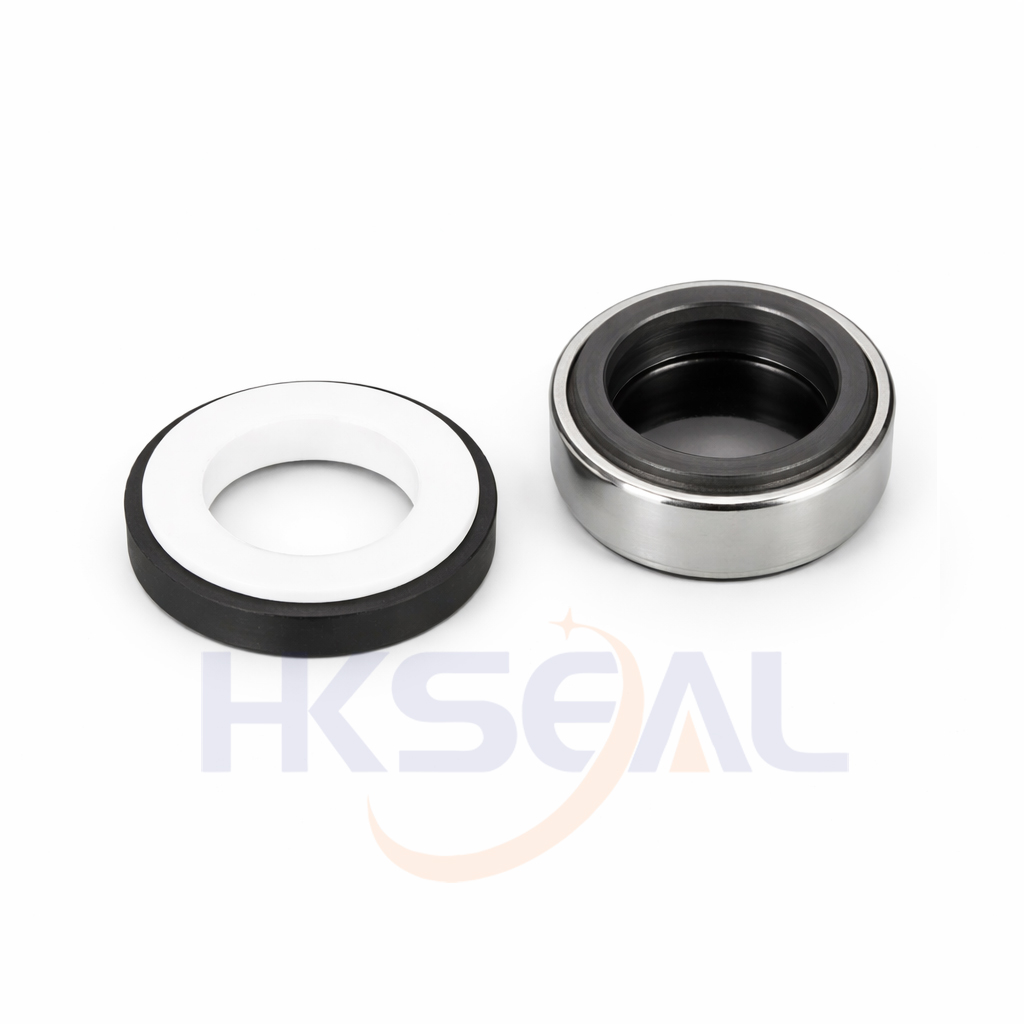

HK301
-
Type:
-
Elastomeric bellow mechanical seal
- Replacement:
-
AES B01，Vulcan 18，Crane PR/DR，Burgmann BT-AR，Flowserve 118
Temperature:
-20℃ to +120℃
Pressure:
≤0.6Mpa
Speed:
≤10m/s
- Material:
-
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
| Size |
D1 |
D3 |
L |
L2 |
| (mm) |
| 6 |
18.0 |
18 |
14.0 |
4.0 |
| 8S |
22.0 |
18 |
15.0 |
4.0 |
| 8M |
22/26 |
20 |
15.0 |
4/5.5 |
| 8L |
26.0 |
24 |
15.0 |
5.5 |
| 10 |
26.0 |
24 |
21.0 |
5.5/8 |
| 11 |
26.0 |
24 |
21.0 |
5.5/8 |
| 12 |
26.0 |
24 |
21.0 |
5.5/8 |
| 13 |
26.0 |
24 |
19.5 |
5.5/8 |
| 14 |
28/28.5/29.5 |
28 |
21.0 |
8.0 |
| 14L |
29.5 |
32 |
21.0 |
8.0 |
| 15S |
28.5/30 |
28 |
21.0 |
8.0 |
| 15M |
30/29.5 |
32 |
21.0 |
8.0 |
| 15L |
38.0 |
39 |
21.0 |
8.0 |
| 16S |
29.5/30 |
28 |
21.0 |
8.0 |
| 16M |
29.5 |
32 |
21.0 |
8.0 |
| 16L |
38.0 |
39 |
21.0 |
8.0 |
| 17 |
42.0 |
39 |
21.0 |
8.0 |
| 18 |
42.0 |
39 |
21.0 |
8.0 |
| 19 |
42.0 |
39 |
21.0 |
8.0 |
| 20 |
42.0 |
39 |
21.0 |
8.0 |
| 20L |
45.0 |
42 |
23.0 |
10.0 |
| 22 |
45.0 |
42 |
23.0 |
10.0 |
| 23 |
50.0 |
47 |
23.5 |
10.0 |
| 24 |
50.0 |
47 |
23.5 |
10.0 |
| 25 |
50.0 |
42 |
23.5 |
10.0 |
| 25L |
50.0 |
47 |
23.5 |
10.0 |
| 26 |
50.0 |
47 |
23.5 |
10.0 |
| 27 |
50.0 |
47 |
23.5 |
10.0 |
| 28 |
57.0 |
54 |
25.0 |
10.0 |
| 30 |
57.0 |
54 |
25.0 |
10.0 |
| 32 |
57.0 |
54 |
25.0 |
10.0 |
| 35 |
63.0 |
60 |
26.0 |
10.0 |
| 38 |
68.0 |
65 |
30.0 |
12.0 |
| 40 |
68.0 |
65 |
30.0 |
12.0 |
| 45 |
73.0 |
70 |
32.0 |
12.0 |
| 50 |
88.0 |
85 |
38.0 |
15.0 |
| 55 |
88.0 |
85 |
38.0 |
15.0 |
| 60 |
110.0 |
105 |
45.0 |
15.0 |
