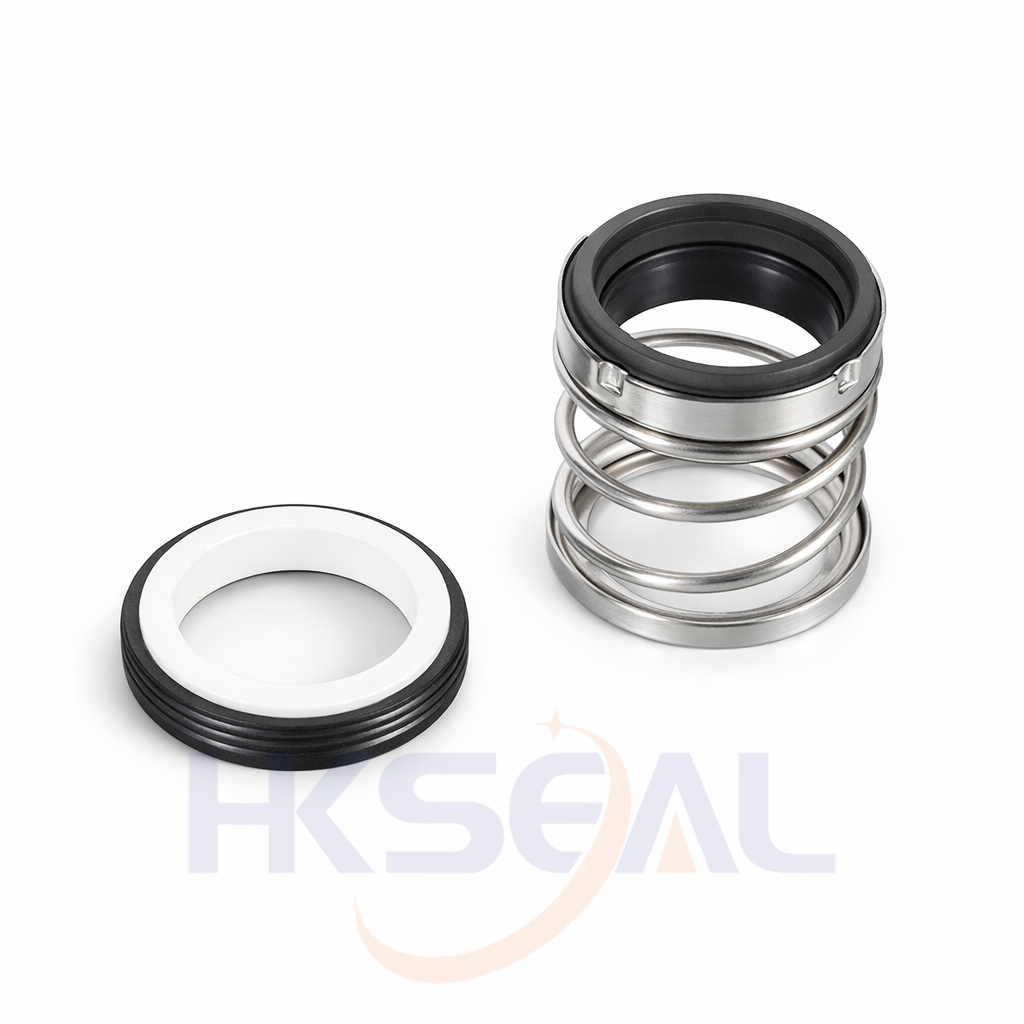

HK560A
-
Type:
-
Elastomeric bellow mechanical seal
- Replacement:
-
Burgmann EA560
Temperature:
-20℃ to +100℃
Pressure:
≤1.0Mpa
Speed:
≤15m/s
- Material:
-
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
| Size |
D1 |
D3 |
L1 |
L2 |
| (mm) |
| 8 |
21 |
18.2 |
11.2 |
7 |
| 9 |
24 |
18.2 |
16.2 |
7 |
| 10 |
24 |
20.6 |
16.2 |
7 |
| 11 |
24 |
20.6 |
16.2 |
7 |
| 12 |
26 |
21.8 |
17.2 |
7 |
| 13 |
26 |
21.8 |
17.2 |
7 |
| 14 |
28 |
26.4 |
18.2 |
7 |
| 15 |
28 |
26.4 |
18.2 |
7 |
| 16 |
32 |
26.4 |
19.2 |
8 |
| 17 |
32 |
29.5 |
19.2 |
8 |
| 18 |
35 |
29.5 |
19.2 |
8 |
| 19 |
35 |
29.5 |
19.2 |
8 |
| 20 |
38 |
31.6 |
20.2 |
8 |
| 22 |
40 |
33.6 |
20.2 |
8 |
| 25 |
44 |
39.6 |
20.2 |
9 |
| 28 |
46 |
45.0 |
21.2 |
9 |
| 30 |
50 |
46.6 |
22.2 |
9 |
| 32 |
54 |
46.6 |
24.2 |
9 |
| 35 |
58 |
50.8 |
26.2 |
10 |
| 38 |
60 |
54.3 |
27.2 |
10 |
| 40 |
64 |
57.3 |
28.2 |
10 |
| 45 |
66 |
61.3 |
30.2 |
10 |
| 50 |
72 |
67.8 |
32.2 |
10 |
