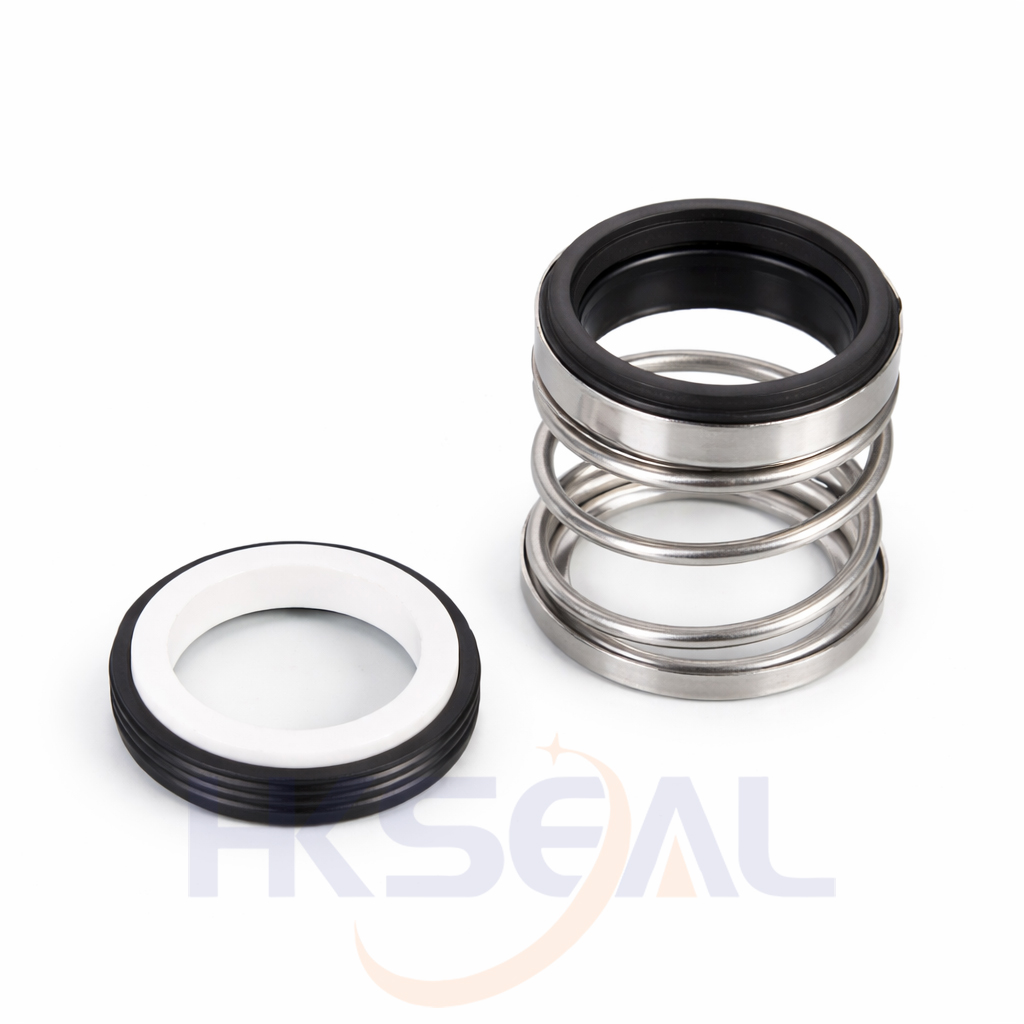

HKBIA
-
Type:
-
Elastomeric bellow mechanical seal
Temperature:
-20℃ to +120℃
Pressure:
≤1.0Mpa
Speed:
≤15m/s
- Material:
-
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
| Size |
D1 |
D3 |
L1 |
L2 |
| (mm) |
| 14 |
30 |
27.5 |
19.0 |
5.0 |
| 16 |
32 |
28.5 |
21.0 |
5.0 |
| 18 |
35 |
31.2 |
22.5 |
7.5 |
| 20 |
35 |
31.7 |
21.0 |
8.0 |
| 25 |
40 |
40.2 |
25.5 |
8.0 |
| 28 |
43 |
44.1 |
25.5 |
8.0 |
| 30 |
45 |
45.1 |
25.5 |
9.0 |
| 32 |
48 |
49.0 |
33.5 |
9.0 |
| 33 |
48 |
49.0 |
33.5 |
9.0 |
| 35 |
50 |
50.2 |
33.5 |
9.0 |
| 38 |
56 |
55.3 |
33.5 |
9.0 |
| 40 |
58 |
57.0 |
33.5 |
9.0 |
| 43 |
61 |
60.7 |
36.5 |
9.5 |
| 45 |
63 |
62.5 |
38.5 |
9.5 |
| 48 |
66 |
66.5 |
38.0 |
9.5 |
| 50 |
70 |
68.6 |
38.0 |
9.5 |
| 53 |
73 |
70.8 |
41.0 |
9.5 |
| 55 |
75 |
72.4 |
41.0 |
9.5 |
| 58 |
78 |
80.0 |
42.0 |
9.5 |
| 60 |
80 |
83.0 |
42.0 |
9.5 |
| 65 |
85 |
87.2 |
42.0 |
10.0 |
| 70 |
92 |
91.6 |
45.0 |
11.0 |
| 75 |
97 |
99.4 |
47.0 |
12.0 |
| 80 |
104 |
104.6 |
55.0 |
12.0 |
| 85 |
109 |
111.0 |
64.0 |
12.0 |
| 90 |
114 |
113.0 |
66.0 |
12.0 |
