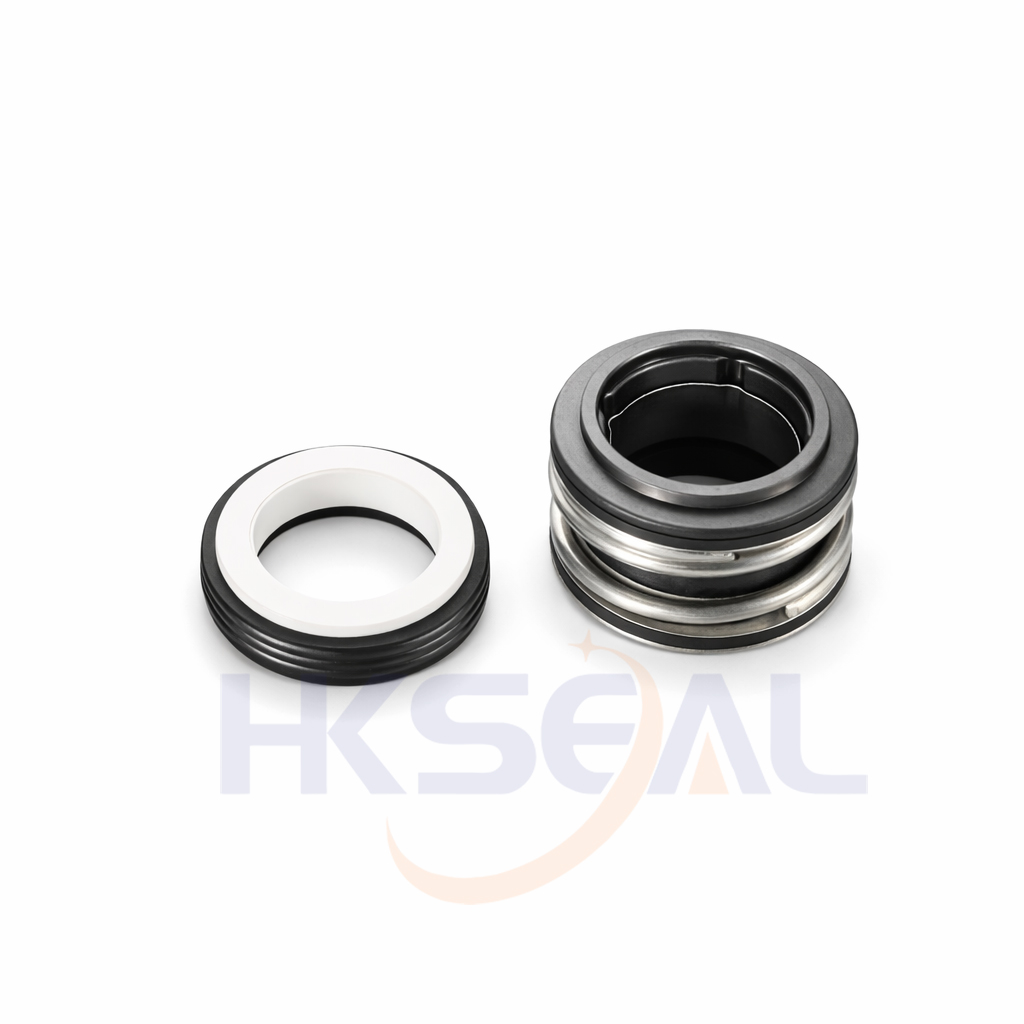

HKE
- Type:
- Elastomeric bellow mechanical seal,Suit for Grundfos,Hilge Pumps
- Replacement:
- Vu1can 60/65，Burgmann BT-PNT, AES B04/B04U， Crane 106，Roten 16，Flowserve 160 Temperature: -20℃ to +120℃ Pressure: ≤0.5Mpa Speed: ≤10m/s
- Material:
- V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
- Detail
.jpg)
| Size | D1 | D3 | L1 | L2 |
| (mm) | ||||
| 0.375 | 22.20 | 24.00 | 16.00 | 6.20 |
| 0.500 | 25.40 | 27.00 | 16.60 | 6.20 |
| 0.625 | 31.80 | 31.00 | 18.70 | 10.31 |
| 0.750 | 34.90 | 34.20 | 18.70 | 10.31 |
| 1.000 | 41.30 | 43.00 | 20.60 | 11.10 |
