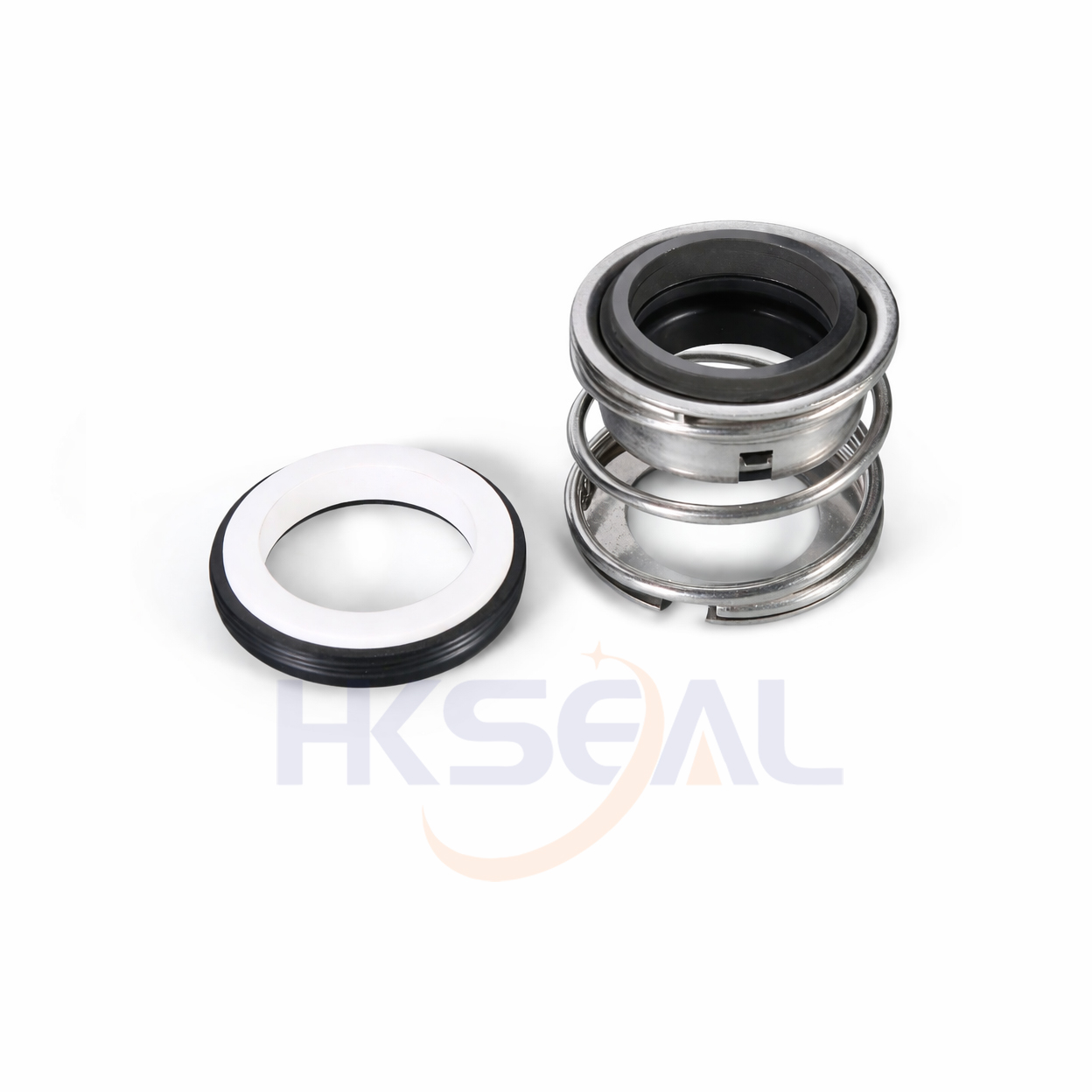

HKFBD
-
Type:
-
Elastomeric bellow mechanical seal
- Replacement:
-
AES PO4U，Crane 2(US)，Vu1can A4，Flowserve52
Temperature:
-20℃ to +120℃
Pressure:
≤1.4Mpa
Speed:
≤15m/s
- Material:
-
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
| Size |
D1 |
D3 |
L1 |
L2 |
| (mm) |
| 16 |
30 |
34.00 |
25 |
8.0 |
| 18 |
32 |
36.80 |
25 |
8.0 |
| 20 |
34 |
38.80 |
25 |
8.0 |
| 22 |
36 |
41.50 |
25 |
8.0 |
| 25 |
39 |
44.80 |
26 |
8.0 |
| 28 |
43 |
48.50 |
26 |
8.0 |
| 30 |
48 |
52.00 |
26 |
8.0 |
| 35 |
53 |
57.00 |
30 |
10.0 |
| 40 |
58 |
67.00 |
34 |
10.0 |
| 45 |
63 |
73.00 |
36 |
10.0 |
| 50 |
68 |
79.00 |
41 |
10.0 |
| 55 |
73 |
84.00 |
41 |
12.0 |
| 60 |
79 |
90.00 |
41 |
12.0 |
| 65 |
86 |
98.50 |
49 |
12.0 |
| 70 |
91 |
103.50 |
52 |
12.0 |
| 75 |
96 |
110.50 |
52 |
12.0 |
| 80 |
105 |
120.00 |
56 |
14.0 |
| 85 |
110 |
125.00 |
56 |
14.0 |
| 90 |
115 |
132.00 |
56 |
14.0 |
| 95 |
120 |
137.00 |
56 |
14.0 |
| 100 |
125 |
144.00 |
62 |
14.0 |
| 110 |
135 |
157.00 |
62 |
16.0 |
| 120 |
145 |
169.50 |
72 |
16.0 |
