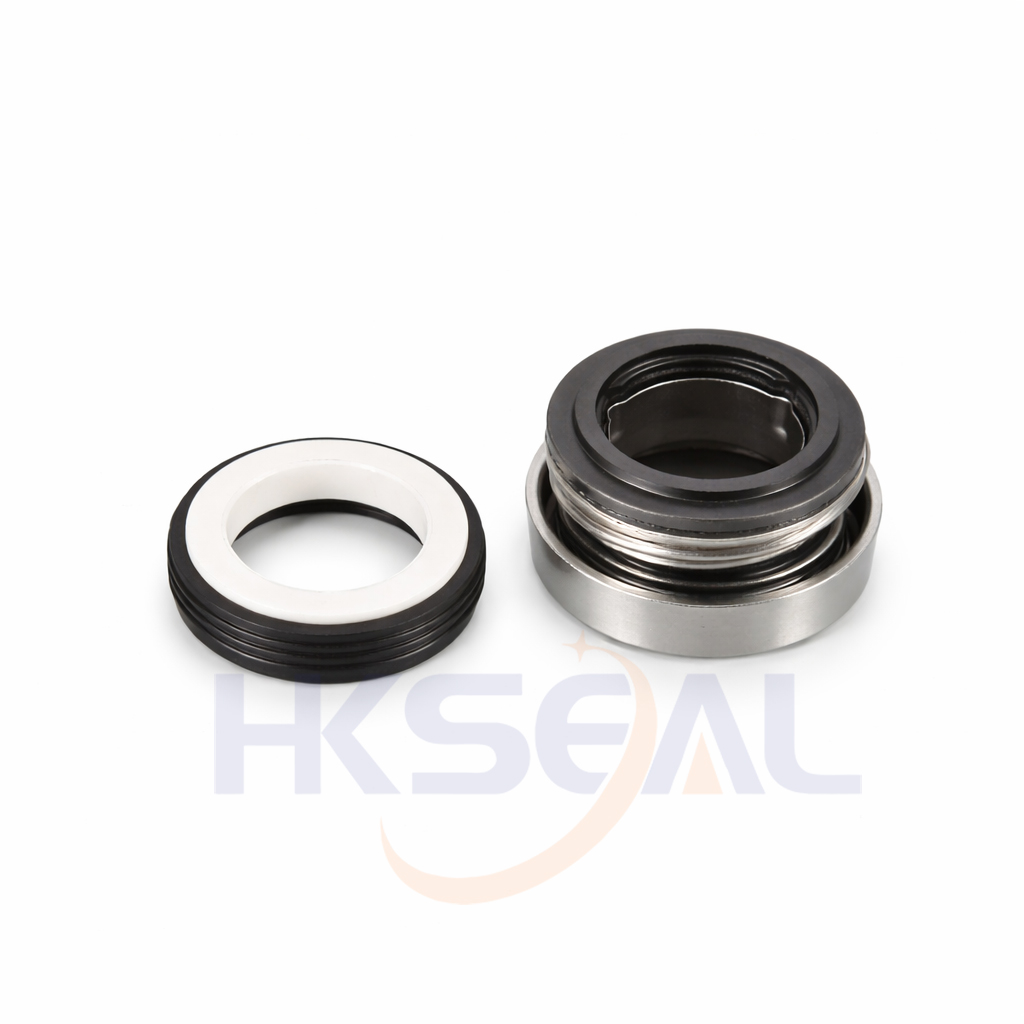

HKF
-
Type:
-
Elastoer Bellow Mechanical Seal
- Replacement:
-
,Vulcan 70
Temperature:
-30 to +200℃
Pressure:
≤0.6Mpa
Speed:
≤15m/s
- Material:
-
B,Q2,U2,P,E,N,V,F,G,Alfa
| Size |
Model |
D1 |
D32 |
D31 |
D3 |
L |
L2 |
L3 |
| （mm） |
| 10.00 |
10 |
23.00 |
11.00 |
24.00 |
29.00 |
17.00 |
4.00 |
7.00 |
| 12.00 |
12S |
25.00 |
14.20 |
28.55 |
32.00 |
18.20 |
5.00 |
8.00 |
| 12.00 |
12M |
24/23 |
14.20 |
30.00 |
35.00 |
18.00 |
5.00 |
8.00 |
| 12.00 |
12L |
25.00 |
14.20 |
33.40 |
38.00 |
18.00 |
5.00 |
6.70 |
| 16.00 |
16 |
31.00 |
18.20 |
36.45 |
41.50 |
19.80 |
5.00 |
8.00 |
| 16.00 |
16L |
31.00 |
18.20 |
38.10 |
43.50 |
19.80 |
5.00 |
8.00 |
| 16.00 |
16LD |
31.00 |
18.20 |
38.10 |
43.50 |
19.80 |
5.00 |
8.00 |
| 20.00 |
20S |
35.00 |
21.20 |
38.00 |
43.80 |
20.50 |
5.00 |
9.50 |
| 20.00 |
20 |
35.00 |
21.20 |
40.00 |
43.80 |
20.50 |
5.00 |
9.50 |
| 25.00 |
25S |
44.00 |
26.40 |
46.00 |
51.00 |
25.00 |
7.00 |
10.00 |
| 25.00 |
25M |
44.00 |
26.40 |
47.00 |
51.00 |
25.00 |
7.00 |
12.00 |
| 25.00 |
25L |
48.00 |
26.40 |
52.00 |
57.00 |
25.00 |
7.00 |
12.00 |
| 30.00 |
30 |
48.00 |
31.00 |
52.00 |
57.00 |
27.00 |
8.00 |
11.00 |
| 12.70 |
1/2' |
25.40 |
14.20 |
30.00 |
35.00 |
19.20 |
6.20 |
8.00 |
| 15.80 |
5/8' |
31.75 |
18.20 |
36.45 |
41.50 |
25.00 |
10.30 |
8.00 |
| 19.05 |
3/4' |
34.93 |
21.20 |
40.00 |
43.80 |
25.80 |
10.30 |
9.50 |
| 25.40 |
1' |
41.28 |
26.40 |
47.00 |
51.00 |
29.00 |
11.10 |
12.00 |
