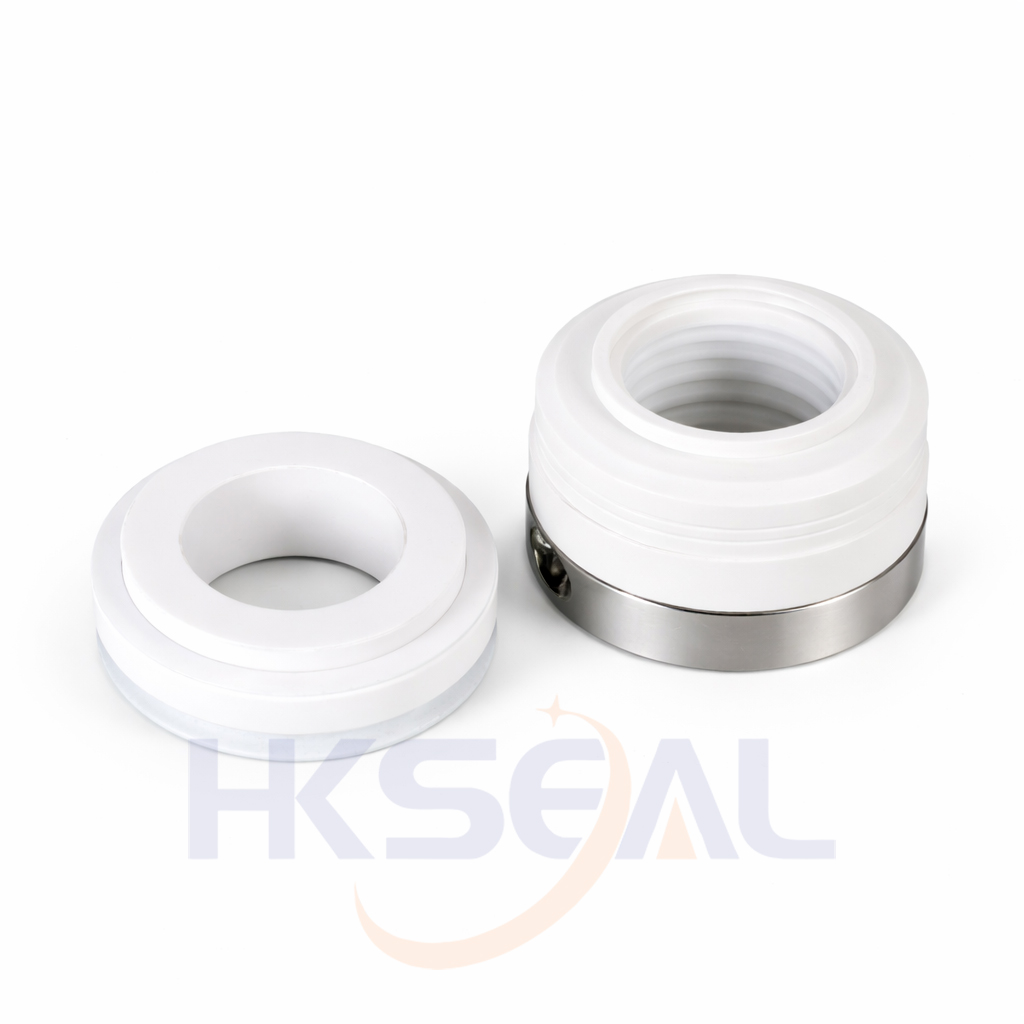

HKWB2

Type:
PTFE Bellow Mechanical Seal
Replacement:
Crane WB2 Temperature: -20℃ to +120℃ Pressure: ≤0.5Mpa Speed: ≤10m/s
Material:
Q2,V2,F,G,TEFLON
  • Detail
  •

     Size     (mm) D3 D2 D1 L1 L2 L11      Size     (Inch) D3 D2 L1 L2 L11
25 60 60 47 42 27 45 25.40  60 54 42 17.50  45
30 67 67 53 42 27 45 28.60  67 60 42 27.00  45
32 69 64 50.7 42 27 45 31.75  69 65 42 27.00  45
35 72 70 57 42 27 45 34.93  72 68 42 27.00  45
40 78 76 62 42 26 45 38.10  76 71 42 27.00  45
45 84 82 67 44 27 46 41.28  80 78 42 27.00  45
50 88 86 72 46 27 46 44.45  84 81 44 27.00  46
55 95 90 77 46 27 46 47.63  86 84 44 27.00  46
60 100 95 82 46 27 46 50.80  90 87 46 27.00  46
65 105 100 87 46 27 46 53.98  95 97 46 33.50  46
57.15  98 100 46 33.50  46
60.30  100 103 46 33.50  46
