EMU
- Type:

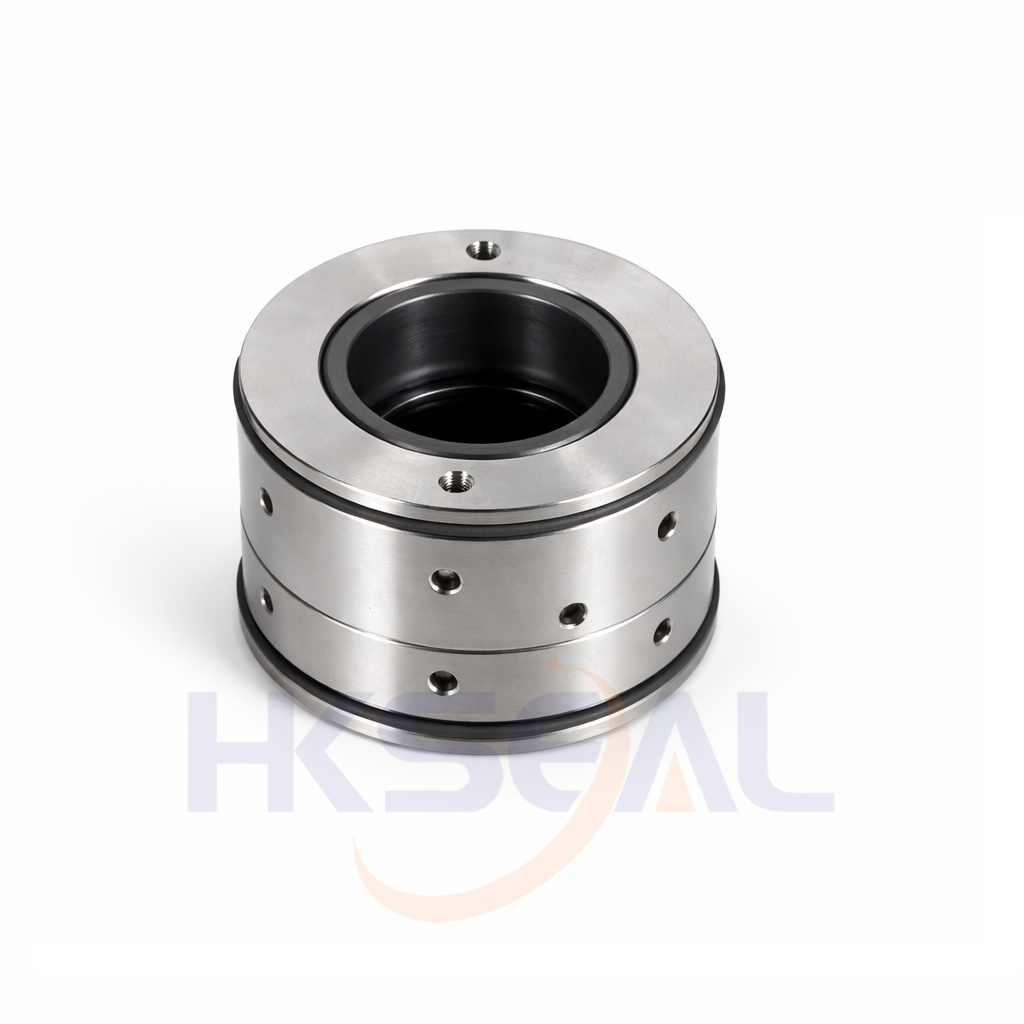

- Single Cartridge Seal,Suit for EMU Pumps and MIXERS
- Replacement:
- AES SOEC Temperature: -40℃ to +200℃ Pressure: ≤1.2Mpa Speed: ≤20m/s
- Material:
- B,P,E,V,K,G,F,G
- Detail
| EMU | D1 | D2 | D3 | D4 | L |
| (mm) | |||||
| 35 | 72 | 47 | 72 | 37 | 47 |
| 50 | 92 | 63 | 90 | 52 | 52 |
| 75 | 130 | 95 | 128 | 77 | 75 |
| EMU-S | D1 | D2 | D3 | D4 | L |
| (mm) | |||||
| 35 | 72 | 49 | 72 | 39 | 47 |
| 50 | 92 | 65 | 90 | 54 | 52 |
| 75 | 130 | 95 | 128 | 78 | 75 |
