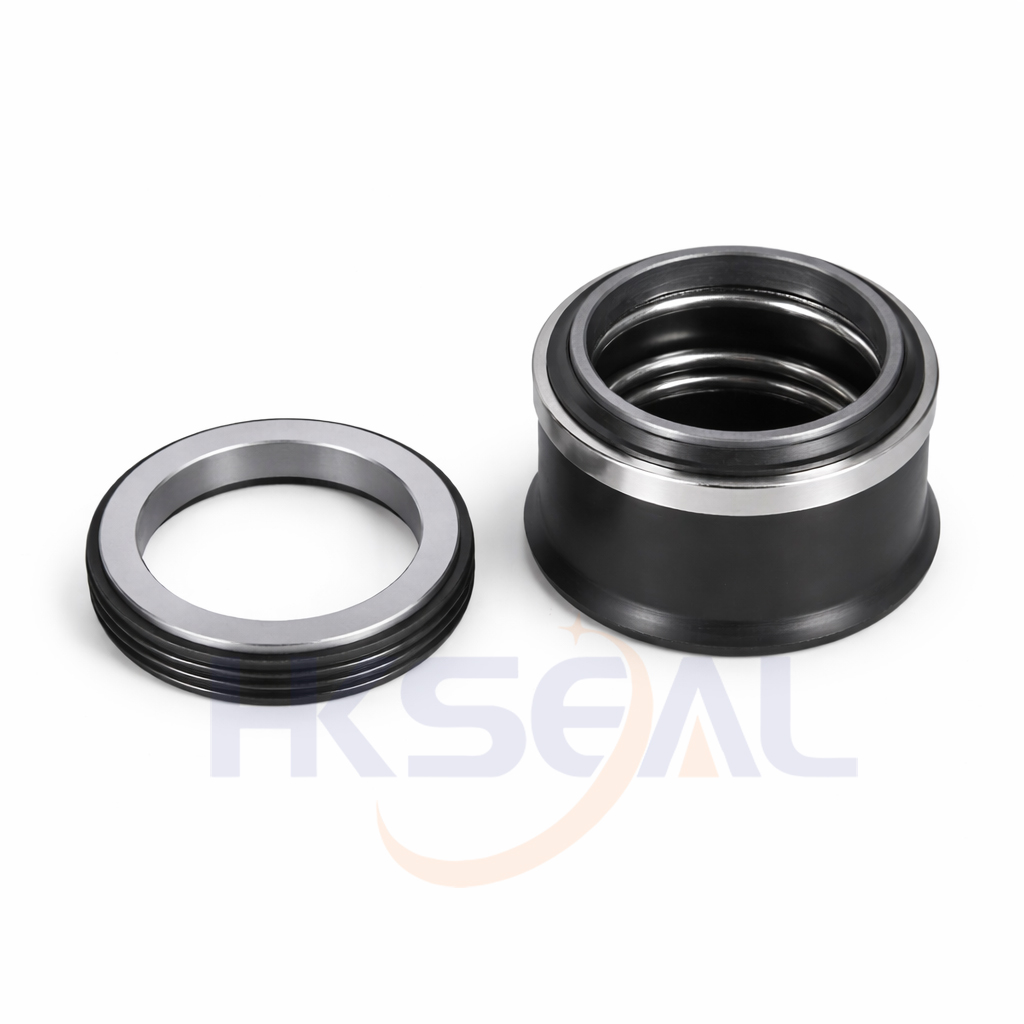

HKKB
- Type:
- Suit for HIDROSTAL Pumps
- Replacement:
- Lidering HI，US VG-7087Temperature:-40℃ to +250℃Pressure:≤2.5MpaSpeed:≤15m/s
- Material:
- B,A1,Q1,Q2,U2,P,E,N,V,F,G
- Detail
| d | d | D1 | D3 | L1 | L2 |
| (mm) | |||||
| 28 | 28.00 | 44.00 | 50.00 | 30.00 | 10.00 |
| 35 | 35.00 | 54.00 | 64.00 | 35.50 | 10.00 |
| 50 | 50.00 | 70.00 | 74.50 | 45.20 | 12.20 |
| d | d | D1 | D3 | L1 | L2 |
| (inch) | |||||
| 1.125 | 28.58 | 44.45 | 50.00 | 30.00 | 11.10 |
| 1.500 | 38.10 | 53.98 | 66.00 | 35.50 | 10.00 |
| 2.000 | 50.80 | 69.85 | 75.50 | 45.20 | 13.00 |
