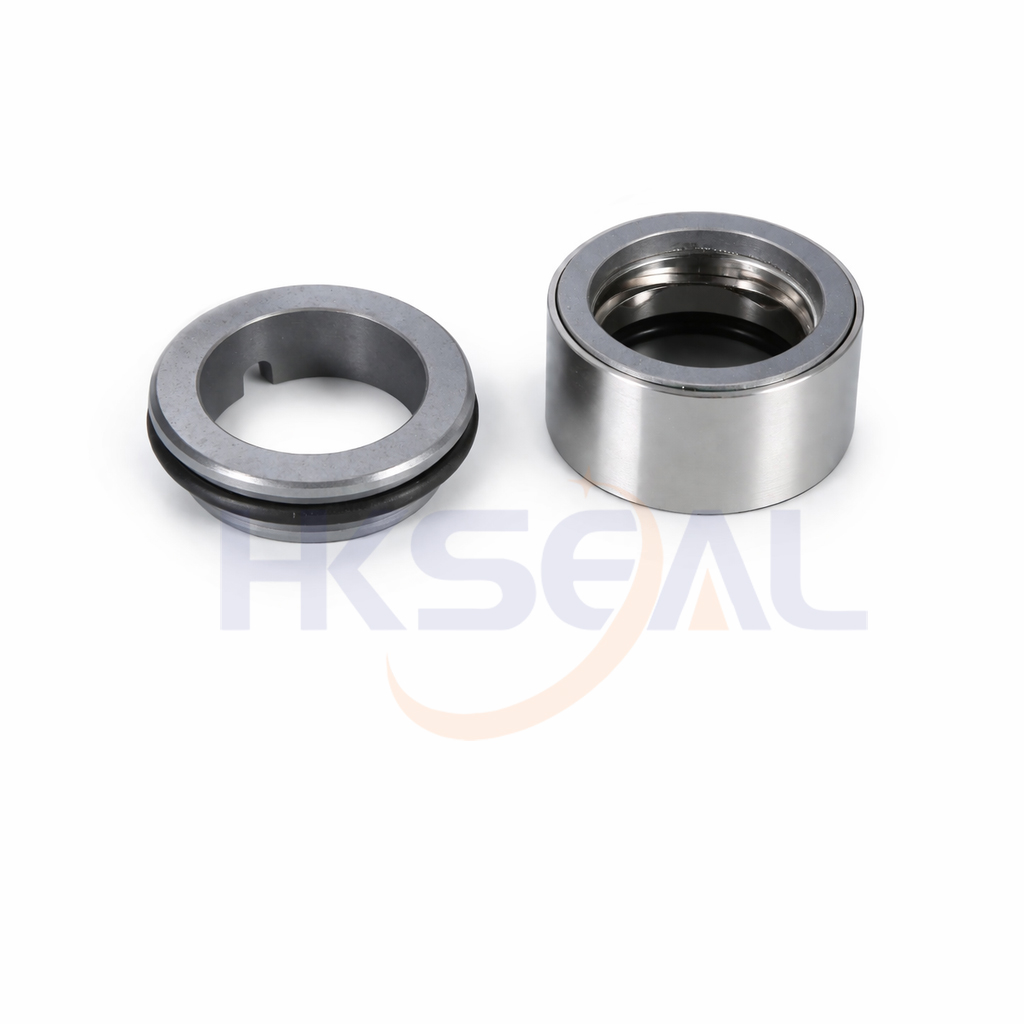

HK1691
- Type:
- Suit for Tuchenhagen Variflow Pumps
- Replacement:
- Vulcan 1691 Temperature: -40 to +240℃ Pressure: ≤1.4Mpa Speed: ≤10m/s
- Material:
- B,Q2,U2,P,E,N,V,F,G,Alfa
- Detail
| d | D1 | D3 | L1 | L2 | O.E.M PUMP Model |
| (mm) | |||||
| 30 | 40.00 | 39.00 | 24.50 | 7.00 | TP10,TP15,TP20,TP30 |
| 35 | 45.00 | 44.00 | 25.50 | 7.00 | TP16,TP25,TP50,TP80 |
