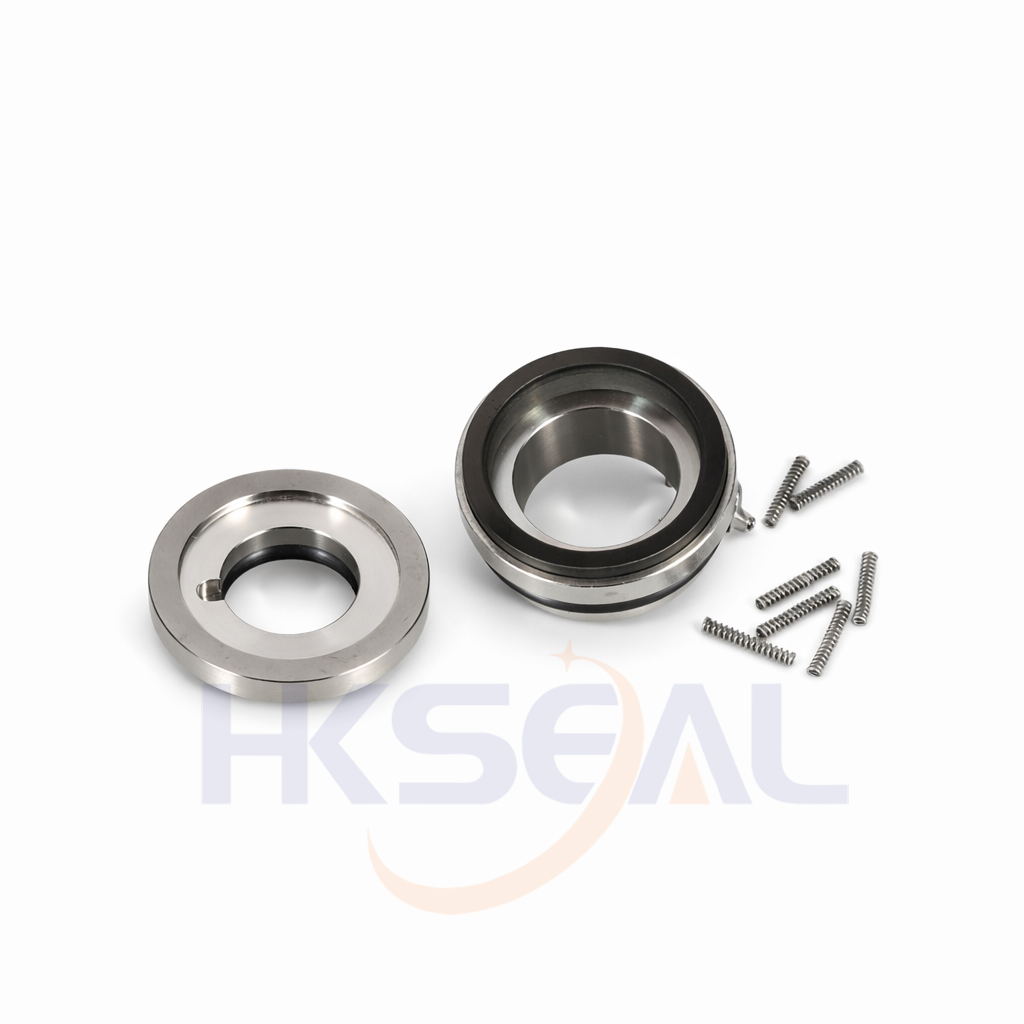

HK50M
- Type:
- Suit for Inoxpa Prolac R,Prolac S,M25 Blender Pumps
- Replacement:
- AES M07 Temperature: -40℃ to +200℃ Pressure: ≤0.8Mpa Speed: ≤18m/s
- Material:
- B,Q22,P,E,V,F,G
- Detail
| d | D3 | D1 | L1 | L2 |
| (mm) | ||||
| 15.80 | 44.50 | 36.10 | 24.00 | 10.50 |
| 25.40 | 53.50 | 44.00 | 24.00 | 10.00 |
| 38.10 | 74.00 | 64.00 | 28.00 | 15.50 |
