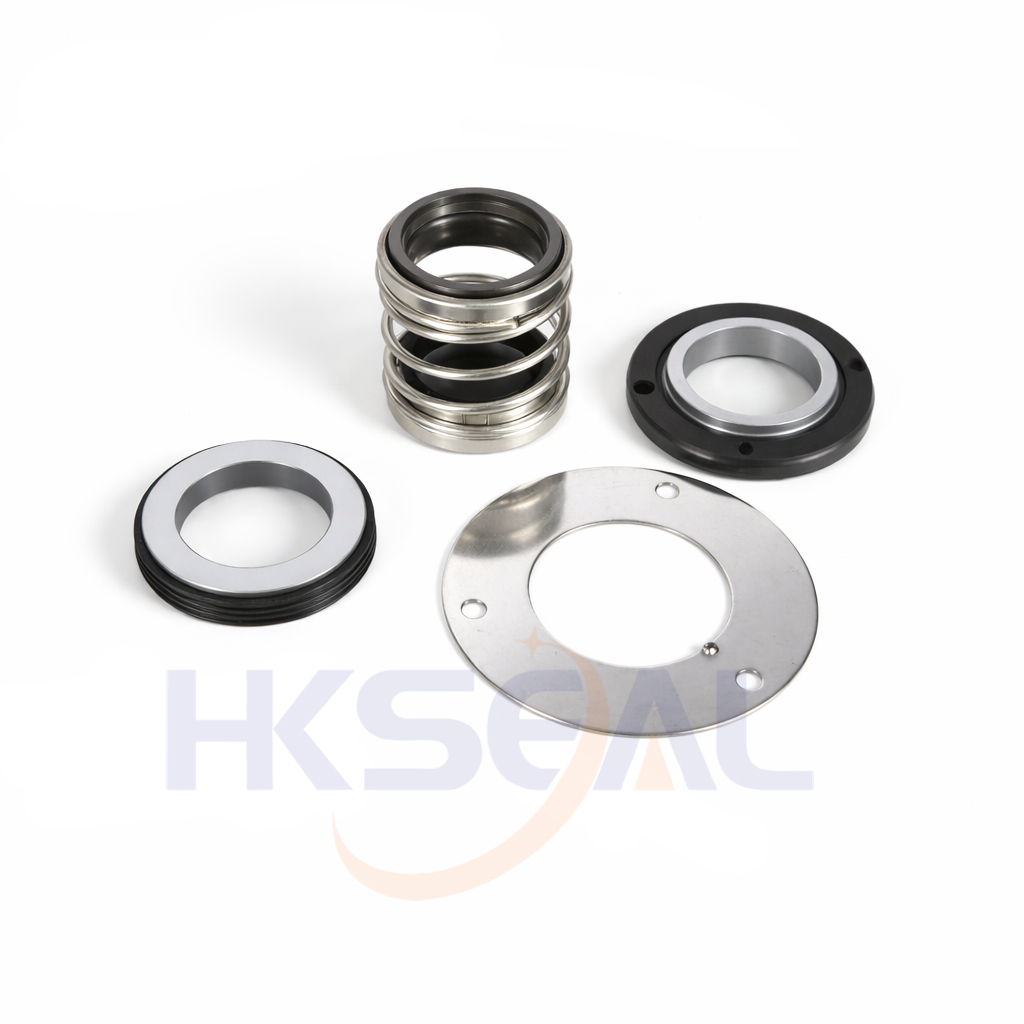

HK560D
- Type:
-
Suit for TSURUMI Pumps
- Replacement:
-
Burgmann ED560, Vulcan 260B
Temperature:
-40℃ to +150℃
Pressure:
≤0.8Mpa
Speed:
≤10m/s
- Material:
-
B,A1,Q1,Q2,U2,P,E,N,V,F,G
| Size |
d |
D3 |
D4 |
D5 |
D7 |
L |
L2 |
L4 |
| (mm) |
| 13 |
13 |
25 |
/ |
/ |
25 |
36 |
5 |
5 |
| 14 |
14 |
30 |
/ |
/ |
30 |
36 |
5 |
5 |
| 15 |
15 |
30 |
/ |
/ |
30 |
34/36 |
4/5.0 |
4/5.0 |
| 16 |
16 |
30 |
/ |
/ |
30 |
34/36 |
4/5.0 |
4/5.0 |
| 17 |
17 |
33 |
/ |
/ |
33 |
36 |
5 |
5 |
| 20 |
20 |
38 |
(50)/60 |
(62)/72 |
(38)/44 |
50 |
7.5 |
7.5 |
| 25 |
25 |
44 |
60 |
72 |
50 |
51 |
8 |
7.5 |
| 30 |
30 |
44/50 |
(60)/70 |
(72)/80 |
(50)/57 |
59 |
9 |
8.5 |
| 35 |
35 |
58 |
(70)/80 |
(82)/92 |
(58)/64 |
61 |
9 |
10 |
| 40 |
40 |
64 |
85 |
100 |
70 |
65 |
11 |
10 |
| 45 |
45 |
66 |
85 |
100 |
70 |
65 |
10 |
9 |
| 50 |
50 |
72 |
95 |
109 |
80 |
69 |
10 |
10 |
| 60 |
60 |
80 |
105 |
120 |
95 |
85 |
13 |
14 |
| 70 |
70 |
95 |
120 |
135 |
105 |
85 |
13 |
14 |
