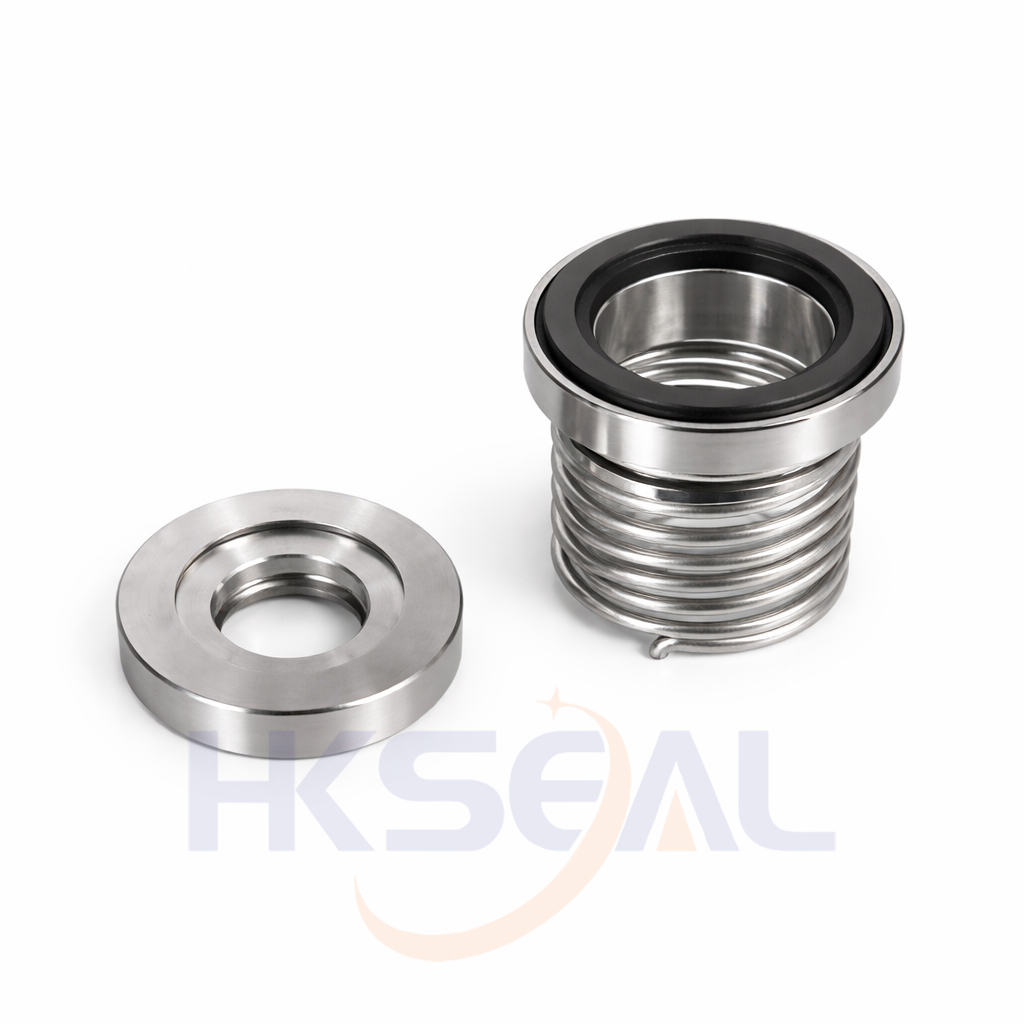

HKTMR
- Type:
- Suit for Tuchenhagen AR,AG,ZR and ZG Pumps
- Replacement:
- AES P09，Vulcan 94，Burgmann MR Temperature: -20℃ to +200℃ Pressure: ≤2.5Mpa Speed: ≤20m/s
- Material:
- B,A1,Q1,Q2,U2,P,E,N,V,F,G
- Detail
| d | d0 | D2 | L1 |
| (mm) | |||
| 12 | 16 | 30 | 7 |
| 18 | 25 | 50 | 11 |
| 21 | 25 | 50 | 11 |
| 28 | 36 | 50 | 11 |
| 40 | 50 | 64 | 14 |
