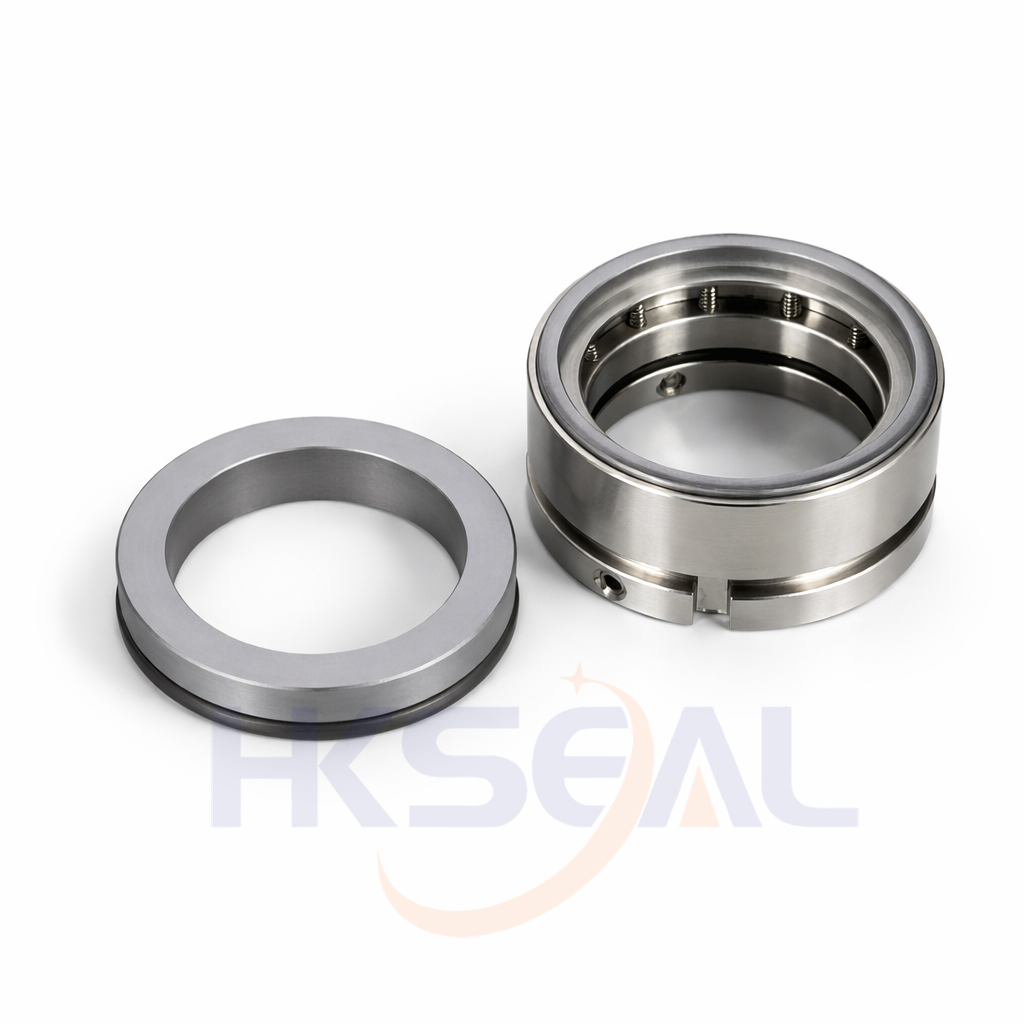

GLF15
- Type:
- Upper seal to suit for Grundfos CRT、NK, CLM-G、CLP-G Series Pumps
- Replacement:
- Orginal Grundfos Seal Temperature: -30℃ to +200℃ Pressure: ≤2.5Mpa Speed: ≤15m/s
- Material:
- B,Q2,U2,P,E,V,F,G
- Detail
| d | D1 | D3 | L1 | L2 |
| (mm) | ||||
| 38 | 56.00 | 58.00 | 27.00 | 11.00 |
| 50 | 70.00 | 70.00 | 27.00 | 13.00 |
| 65 | 85.00 | 90.00 | 32.00 | 13.00 |
