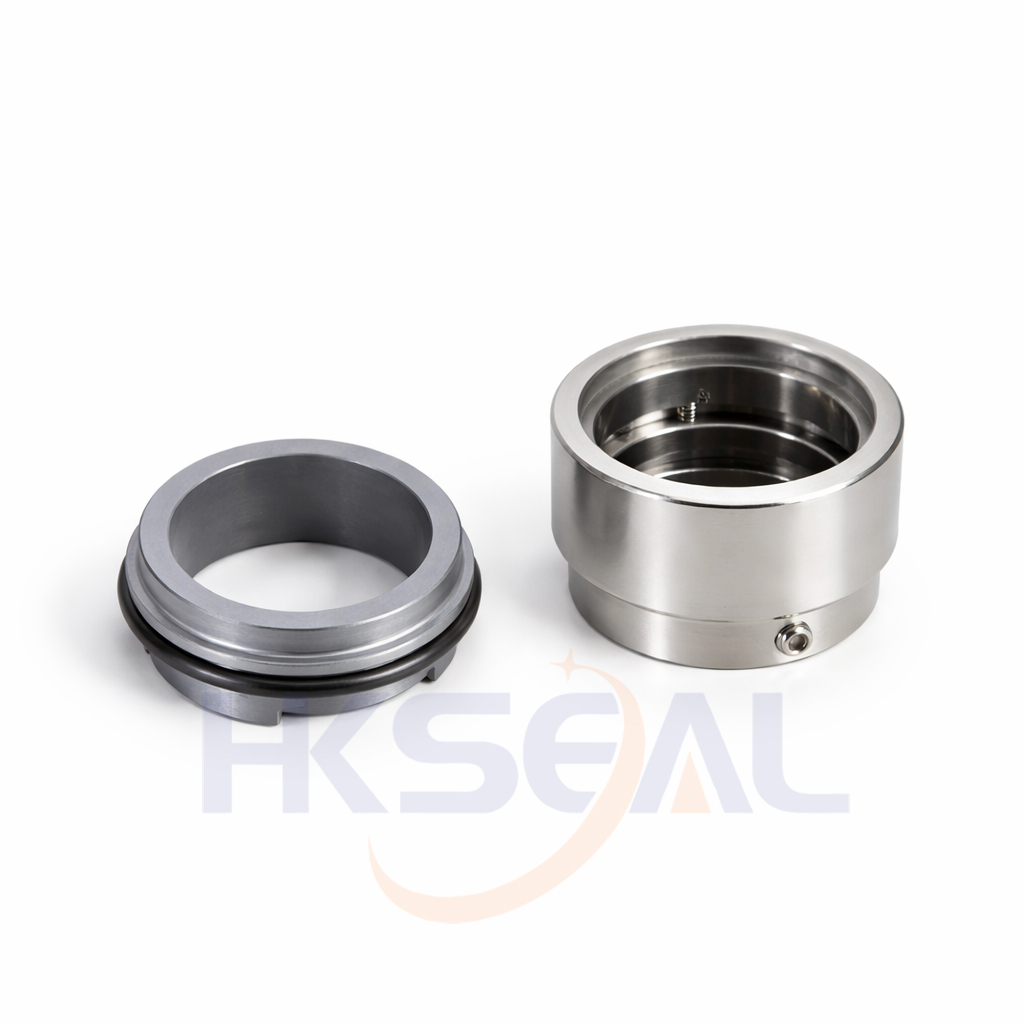

GLF19
- Type:
- Lower seal to suit for Grundfos CRT、NK, CLM-G、CLP-G Series Pumps
- Replacement:
- Orginal Grundfos Seal Temperature: -30℃ to +200℃ Pressure: ≤2.5Mpa Speed: ≤15m/s
- Material:
- B,Q2,U2,P,E,V,F,G
- Detail
| d | D1 | D3 | L1 | L2 |
| (mm) | ||||
| 32 | 48.00 | 46.00 | 32.40 | 11.00 |
| 38 | 55.00 | 54.00 | 33.90 | 11.20 |
| 50 | 69.30 | 66.00 | 34.40 | 14.00 |
| 65 | 85.40 | 85.00 | 38.90 | 15.30 |
