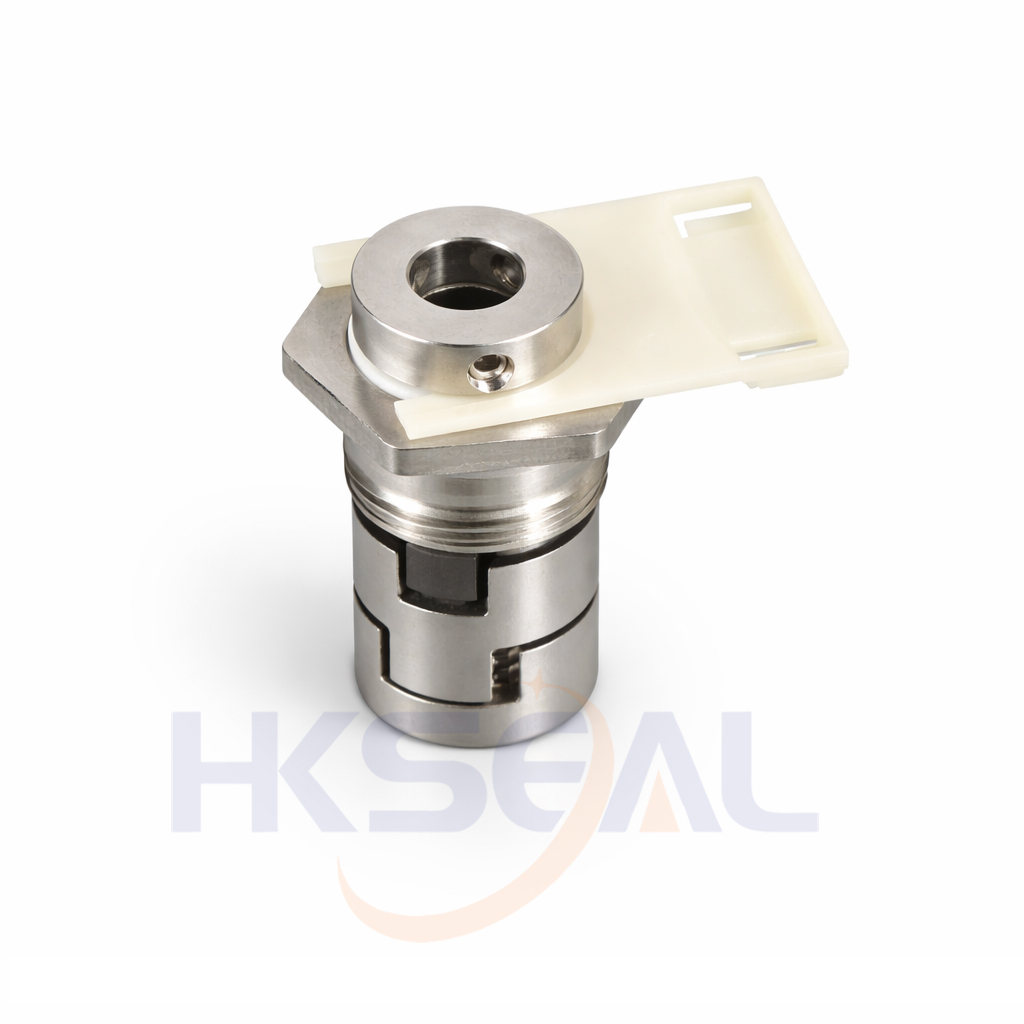

GLF1
- Type:
- Grundfos Pump Seals
- Replacement:
- Equivalent with Grundfos type H seals Temperature: -30℃ to +200℃ Pressure: ≤2.5Mpa Speed: ≤25m/s
- Material:
- B,Q2,U2,P,E,V,F,G Suit for CR1，CR3，CR5，CRN1，CRN3，CRN5，CRI1，CRI3，CRI5，CR32， CR45， CR64， CR90，CRN32， CRN45， CRN64， CRN90 Series Pumps.
- Detail
| d | D1 | D2 | D3 | D4 | L | L1 | L2 | M |
| 12 | 25.00 | 29.00 | 33.50 | 25.00 | 55.50 | 4.00 | 44.50 | 28x1.5 |
| 16 | 30.50 | 34.00 | 40.50 | 29.00 | 58.00 | 5.00 | 46.00 | 33x1.5 |
