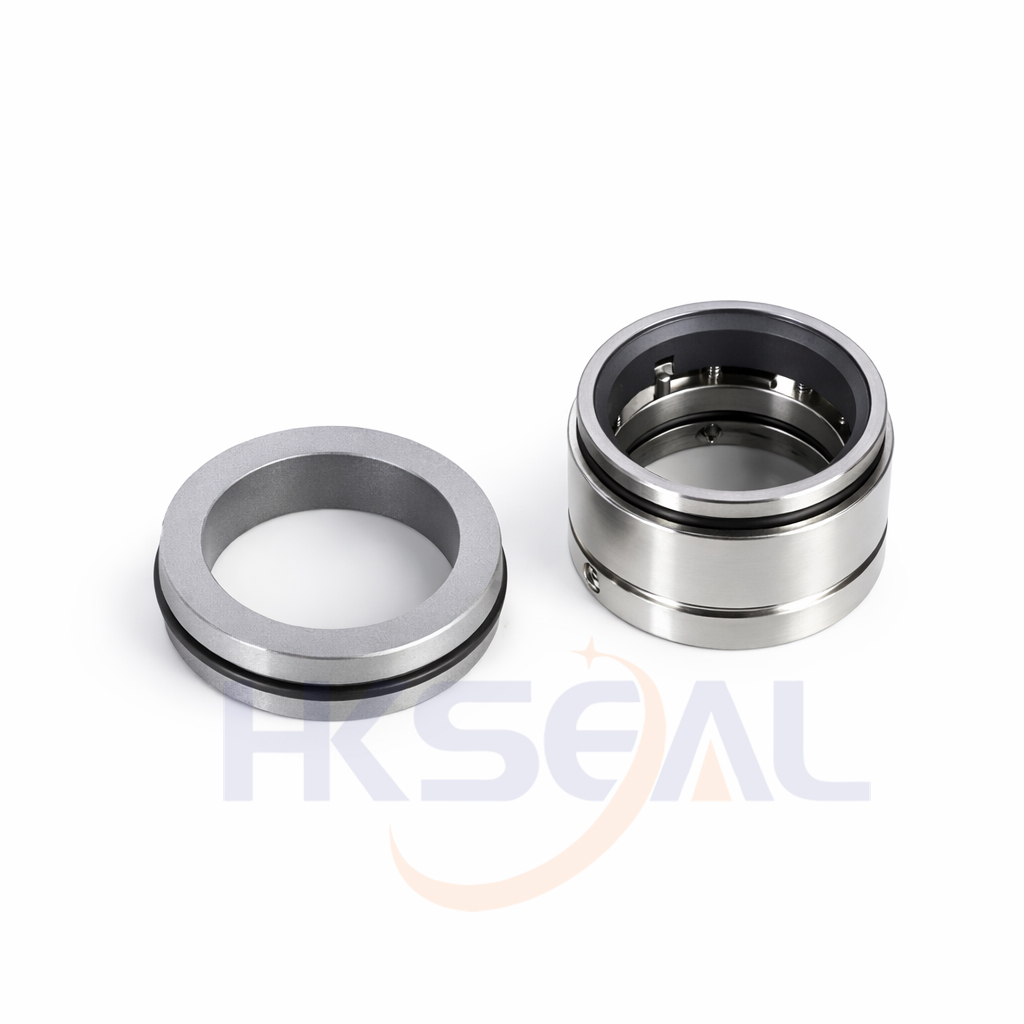

GLF21
- Type:
- Multi Spring Seal,Suit for Grundfos Sarlin Pump
- Replacement:
- AES SSAIS06, Upper Seal for Grundfos S range submersible pump seals Temperature: -30℃ to +200℃ Pressure: ≤2.5Mpa Speed: ≤15m/s
- Material:
- B,Q2,U2,P,E,V,F,G
- Detail
| d | D1 | D3 | L1 | L2 |
| (mm) | ||||
| 30 | 45.00 | 46.00 | 24.00 | 10.00 |
| 38 | 56.00 | 58.00 | 27.00 | 11.00 |
| 50 | 70.00 | 70.00 | 27.00 | 13.00 |
| 65 | 85.00 | 90.00 | 32.00 | 13.00 |
