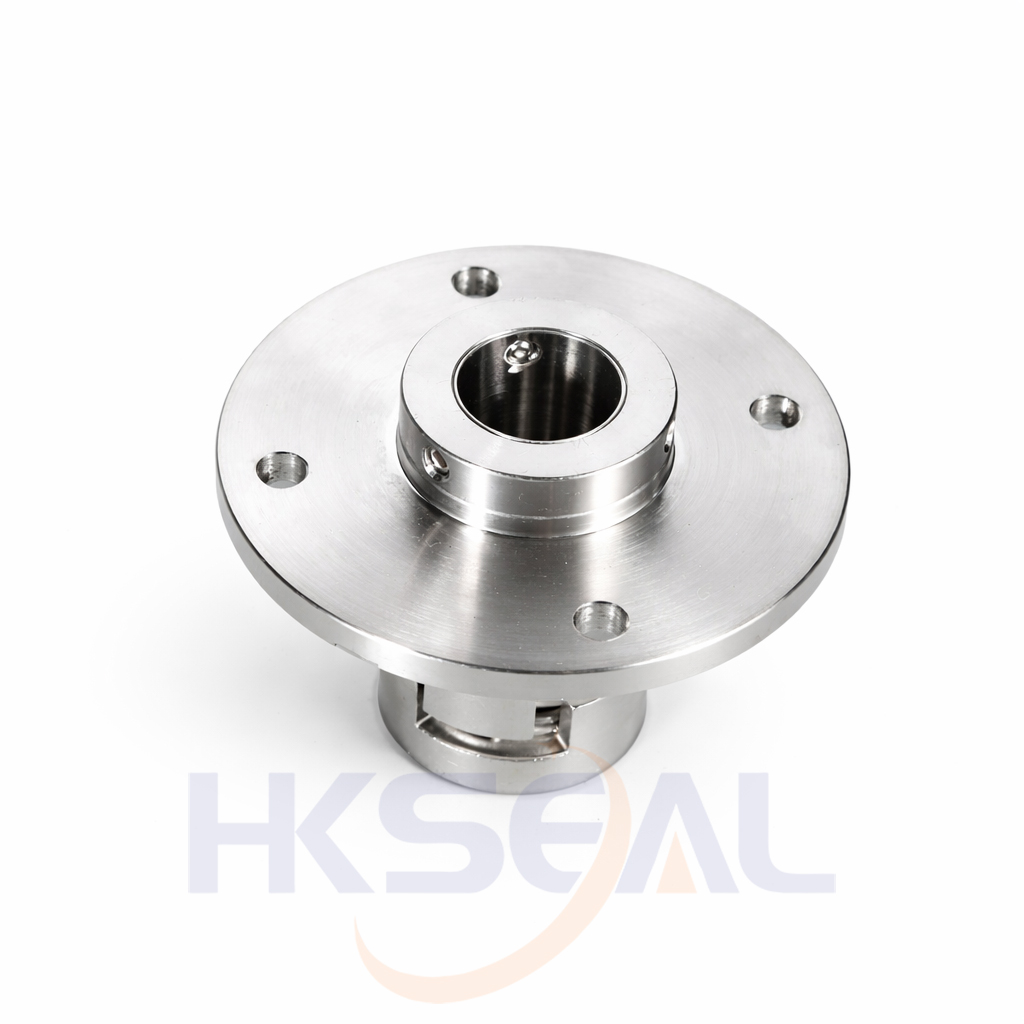

GLF23
- Type:
- Suit for GRUNDFOS CR,CRN and CRI series pumps Temperature: -30℃ to +200℃ Pressure: ≤2.5Mpa Speed: ≤25m/s
- Material:
- B,Q2,U2,P,E,V,F,G
- Detail
| d | ds | D1 | D2 | D3 | D4 | L | L2 |
| (mm) | |||||||
| 12 | 6.00 | 25.00 | 31.00 | 58.00 | 44.00 | 55.50 | 44.50 |
| 16 | 6.50 | 30.00 | 34.00 | 65.00 | 49.00 | 58.00 | 46.00 |
| 22 | 7.00 | 39.50 | 50.00 | 90.00 | 72.00 | 70.50 | 50.50 |
