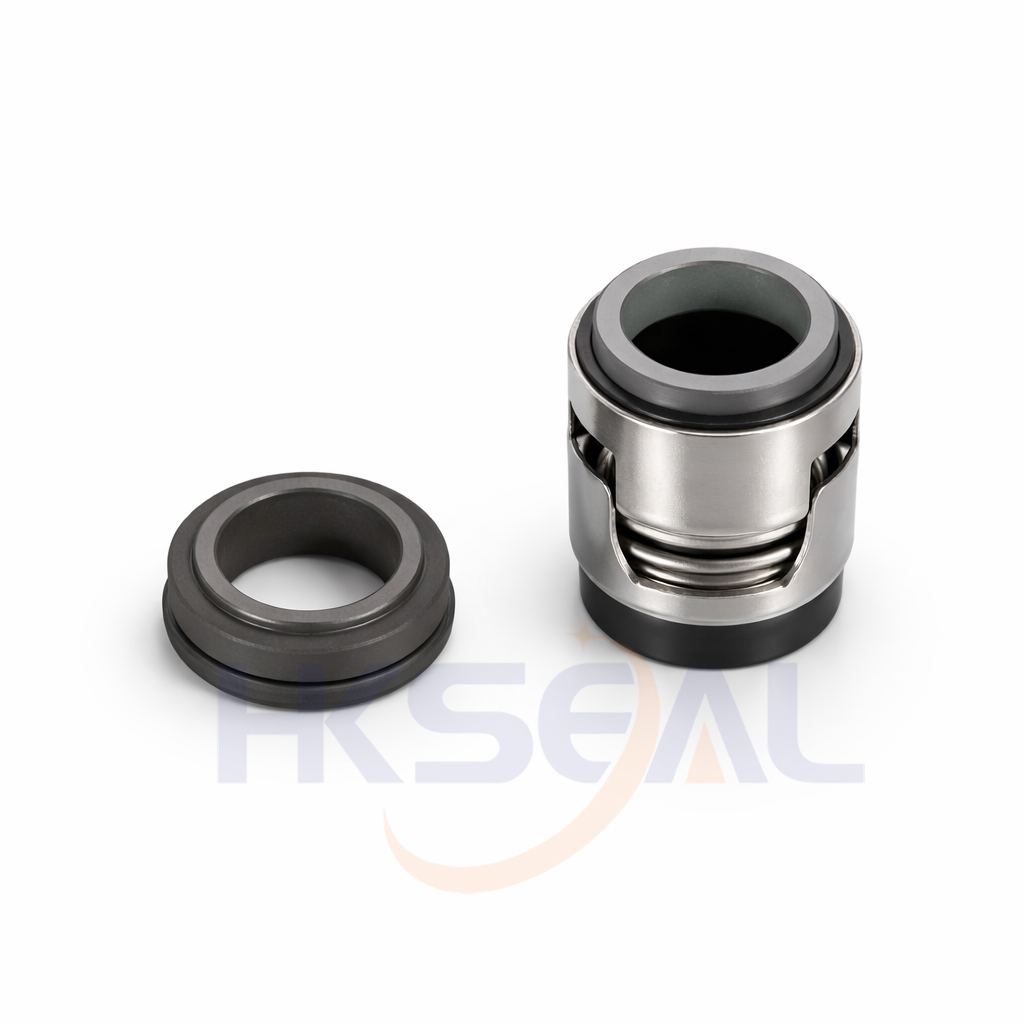

GLF6
- Type:
- Suit for CH，CHI，CHE，CRK，SPK，TP，AP,CR，CRN,NK，TP, LM(D)/LP(D)，NM/NP，DNM/DNP Series Pumps
- Replacement:
- Grundfos Type B,Lidering GR-B Temperature: -20℃ to +180℃ Pressure: ≤1.2Mpa Speed: ≤10m/s
- Material:
- A,B,Q1,Q2,U1,U2,P,E,V,F,G
- Detail
| d | D1 | D2 | D3 | L | L1 | L10 |
| (mm) | ||||||
| 12 | 23.00 | 19.00 | 22.00 | 39.00 | 31.00 | 40.50 |
| 12S | 23.00 | 19.00 | 22.00 | 34.00 | 26.00 | 35.50 |
| 16 | 27.00 | 23.00 | 26.00 | 40.50 | 32.50 | 41.50 |
| 16S | 27.00 | 23.00 | 26.00 | 35.50 | 27.50 | 36.50 |
