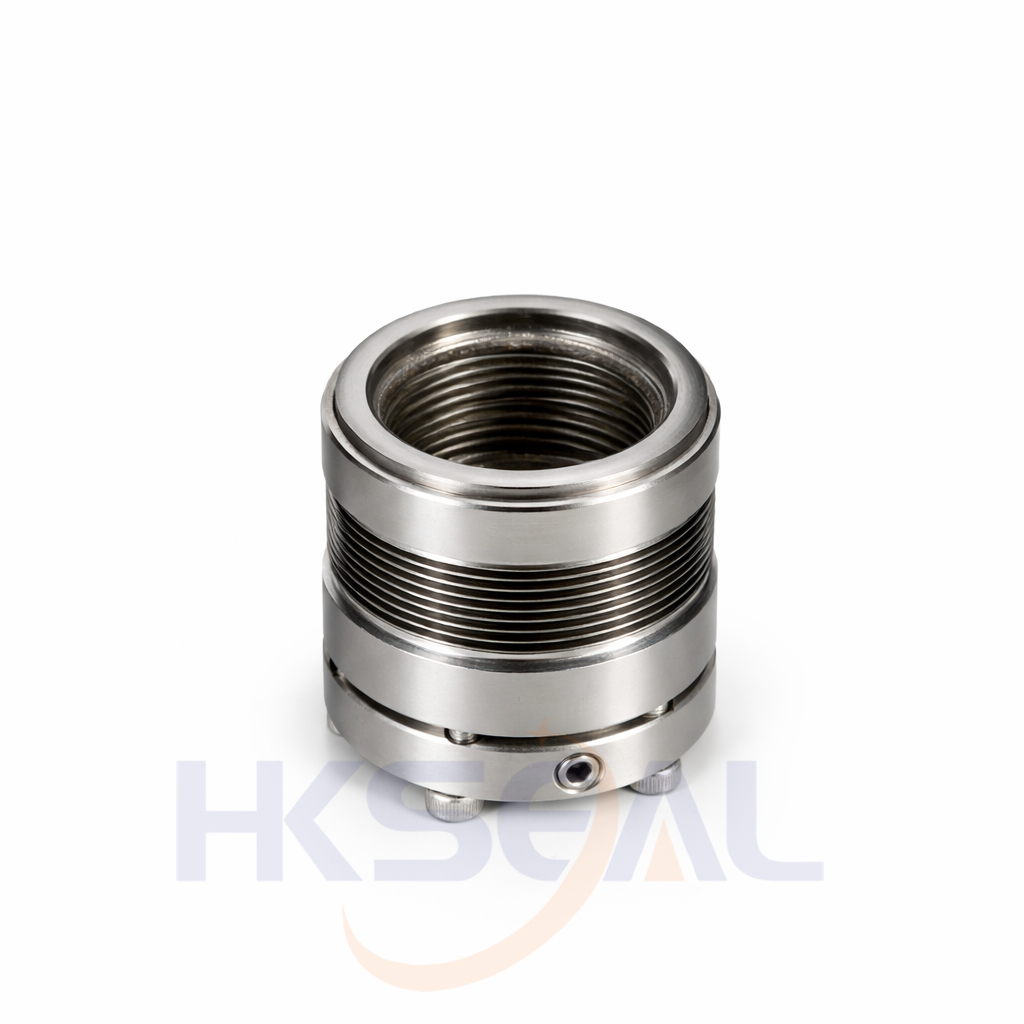

HK609
-
Type:
-
Metal Bellow Seal
- Replacement:
-
Crane 609
Temperature:
-75℃ to +400℃
Pressure:
≤2.0Mpa
Speed:
≤23m/s
- Material:
-
B,Q2,U2,Graphite,F,G,T6
| Size |
D3 |
L1 |
| (mm) |
| 25.40 |
41.28 |
38.95 |
| 25.58 |
44.45 |
39.87 |
| 31.75 |
47.63 |
40.66 |
| 34.93 |
50.80 |
40.66 |
| 38.10 |
53.98 |
40.66 |
| 41.28 |
57.15 |
40.66 |
| 44.45 |
60.33 |
41.48 |
| 47.63 |
63.50 |
41.48 |
| 50.80 |
66.68 |
42.26 |
| 53.98 |
69.85 |
42.26 |
| 57.15 |
73.03 |
43.86 |
| 60.33 |
76.20 |
43.86 |
| 63.50 |
82.55 |
44.65 |
| 66.68 |
85.73 |
45.44 |
| 69.85 |
88.90 |
45.44 |
| 73.03 |
93.65 |
47.83 |
| 76.20 |
96.82 |
47.83 |
| 79.38 |
101.60 |
47.83 |
| 82.55 |
104.78 |
47.83 |
| 85.73 |
107.95 |
47.83 |
| 88.90 |
111.13 |
47.83 |
| 92.08 |
114.30 |
47.83 |
| 95.25 |
117.48 |
47.83 |
| 98.43 |
120.65 |
47.83 |
| 101.60 |
123.83 |
47.83 |
