HK680
-
Type:
-

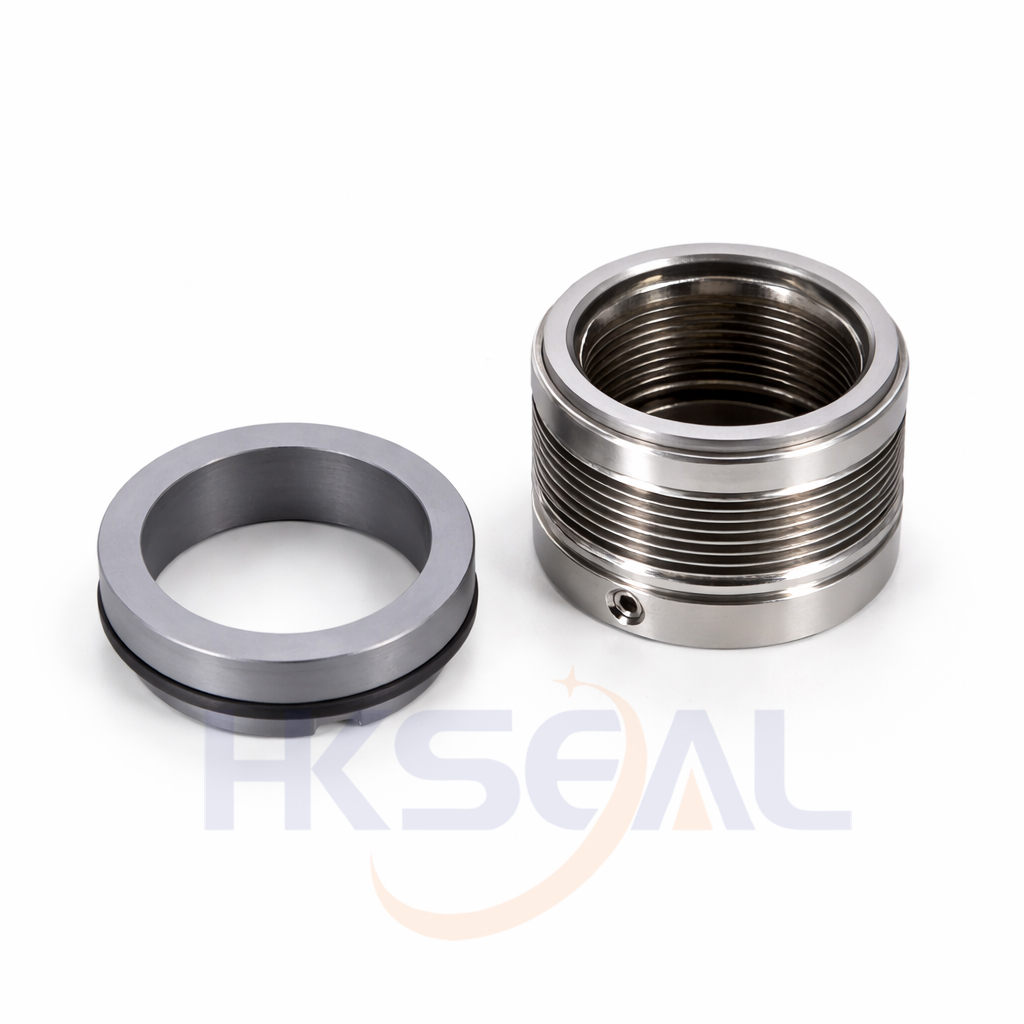

Metal Bellow Seal
- Replacement:
-
Crane 680
Temperature:
-75℃ to +200℃
Pressure:
≤2.0Mpa
Speed:
≤23m/s
- Material:
-
B,Q2,U2,V,E,P,F,G,T6
| d |
D3 |
L1 |
|
d |
D3 |
L1 |
| (mm) |
|
(inch) |
| 18 |
32.00 |
27.70 |
|
0.750 |
1.312 |
1.250 |
| 20 |
33.30 |
27.70 |
|
0.875 |
1.437 |
1.250 |
| 22 |
36.00 |
27.70 |
|
0.937 |
1.500 |
1.250 |
| 24 |
38.10 |
30.20 |
|
1.000 |
1.562 |
1.250 |
| 25 |
39.00 |
30.20 |
|
1.125 |
1.687 |
1.250 |
| 28 |
42.00 |
32.70 |
|
1.250 |
1.812 |
1.312 |
| 30 |
44.00 |
32.70 |
|
1.375 |
1.937 |
1.437 |
| 32 |
46.00 |
32.70 |
|
1.500 |
2.063 |
1.437 |
| 33 |
47.00 |
32.70 |
|
1.625 |
2.187 |
1.437 |
| 35 |
49.20 |
32.70 |
|
1.750 |
2.312 |
1.437 |
| 38 |
52.40 |
34.20 |
|
1.875 |
2.437 |
1.500 |
| 40 |
55.60 |
34.20 |
|
2.000 |
2.562 |
1.500 |
| 43 |
58.70 |
34.20 |
|
2.125 |
2.687 |
1.500 |
| 45 |
58.70 |
34.20 |
|
2.250 |
2.812 |
1.562 |
| 48 |
61.90 |
34.20 |
|
2.375 |
2.937 |
1.562 |
| 50 |
65.10 |
34.70 |
|
2.500 |
3.187 |
1.562 |
| 53 |
68.30 |
34.70 |
|
2.625 |
3.312 |
1.625 |
| 55 |
71.00 |
34.70 |
|
2.750 |
3.437 |
1.625 |
| 60 |
74.60 |
39.70 |
|
2.875 |
3.625 |
1.687 |
| 65 |
84.10 |
39.70 |
|
3.000 |
3.750 |
1.687 |
| 70 |
87.30 |
45.20 |
|
3.125 |
3.875 |
1.750 |
| 75 |
95.30 |
45.20 |
|
3.250 |
4.000 |
1.750 |
| 80 |
98.40 |
44.70 |
|
3.375 |
4.125 |
1.750 |
| 85 |
104.80 |
44.70 |
|
3.500 |
4.250 |
1.875 |
| 90 |
108.00 |
49.70 |
|
3.625 |
4.375 |
1.875 |
| 95 |
114.30 |
49.70 |
|
3.750 |
4.500 |
1.875 |
|
3.875 |
4.625 |
1.875 |
|
4.000 |
4.750 |
1.875 |
