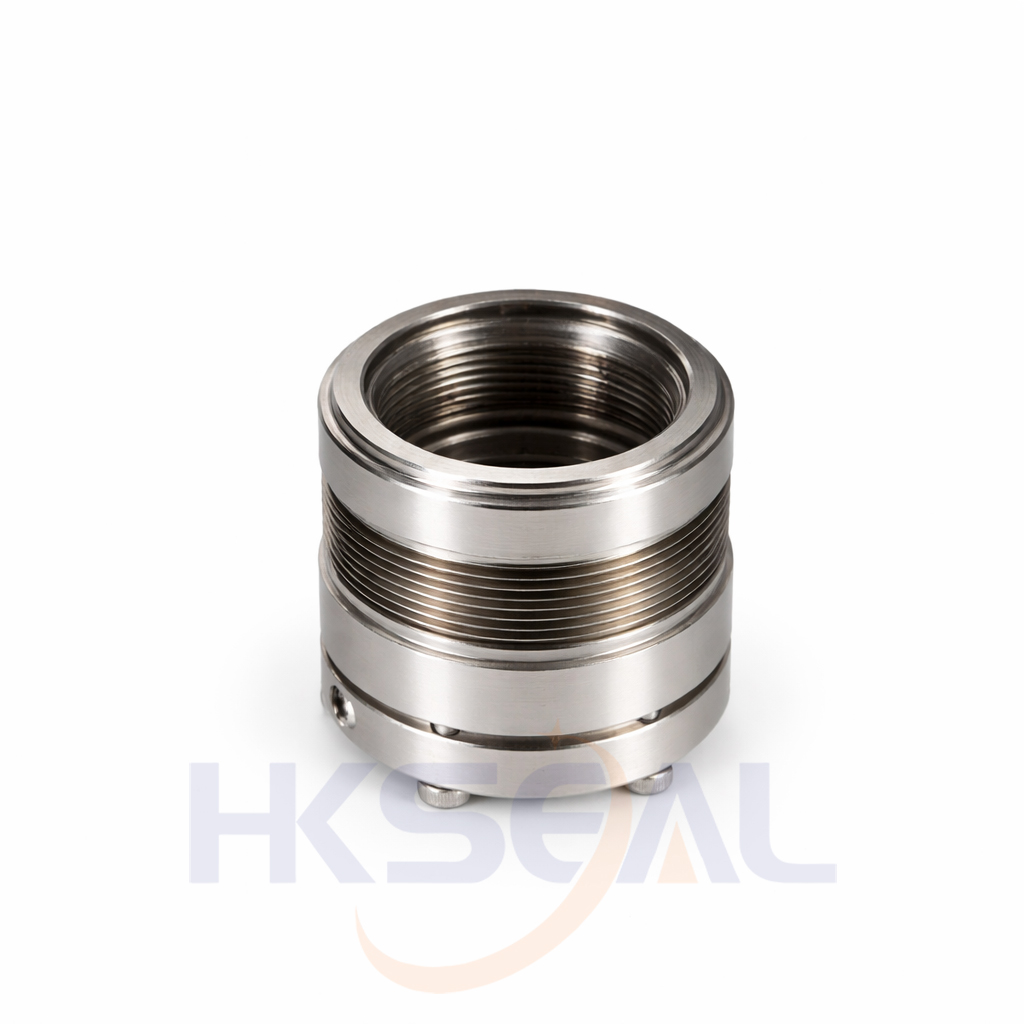

HKWT80
-
Type:
-
Metal Bellow Seal
- Replacement:
-
Burgmann MFLWT80
Temperature:
-20℃ to +370℃
Pressure:
≤2.0Mpa
Speed:
≤23m/s
- Material:
-
B,Q2,Graphite,T6,F,G,M
| d |
D1 |
D3 |
L1 |
L3 |
| (mm) |
|
| 16 |
35.0 |
38 |
46.7 |
10.0 |
| 18 |
37.0 |
40 |
46.7 |
11.5 |
| 20 |
40.0 |
42 |
46.7 |
11.5 |
| 22 |
43.0 |
44 |
46.7 |
11.5 |
| 24 |
43.0 |
46 |
46.7 |
11.5 |
| 25 |
45.0 |
47 |
46.7 |
11.5 |
| 28 |
48.0 |
50 |
46.7 |
11.5 |
| 30 |
50.0 |
52 |
46.7 |
11.5 |
| 32 |
56.0 |
54 |
46.7 |
14.0 |
| 33 |
56.0 |
55 |
46.7 |
14.0 |
| 35 |
58.0 |
57 |
46.7 |
14.0 |
| 38 |
61.0 |
60 |
46.7 |
14.0 |
| 40 |
63.0 |
66 |
47.7 |
14.0 |
| 43 |
66.0 |
69 |
47.7 |
14.0 |
| 45 |
70.0 |
71 |
47.7 |
15.0 |
| 48 |
73.0 |
74 |
47.7 |
15.0 |
| 50 |
75.0 |
76 |
47.7 |
15.0 |
| 53 |
78.0 |
79 |
47.7 |
15.0 |
| 55 |
80.0 |
81 |
47.7 |
15.0 |
| 58 |
83.0 |
85 |
53.2 |
15.0 |
| 60 |
85.0 |
87 |
53.2 |
15.0 |
| 63 |
90.0 |
90 |
53.2 |
18.0 |
| 65 |
92.0 |
92 |
53.2 |
18.0 |
| 68 |
97.0 |
95 |
53.2 |
18.0 |
| 70 |
97.0 |
97 |
53.2 |
18.0 |
| 75 |
105.0 |
102 |
53.0 |
18.2 |
| 80 |
110.0 |
107 |
53.0 |
18.2 |
| 85 |
115.0 |
112 |
53.0 |
18.2 |
| 90 |
120.0 |
117 |
54.0 |
17.2 |
| 95 |
125.0 |
122 |
54.0 |
17.2 |
| 100 |
134.3 |
127 |
54.2 |
20.0 |
