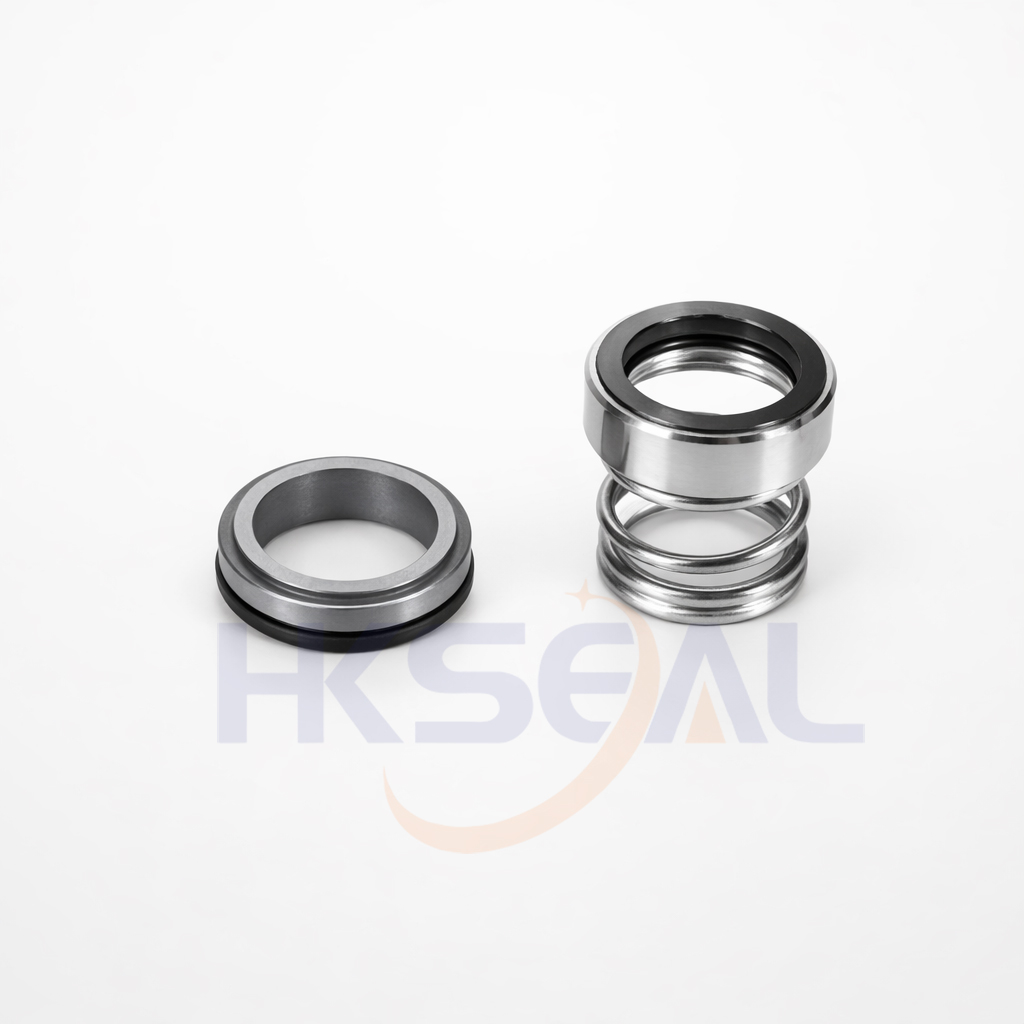

HK120D
-
Type:
-
O-Ring Mechanical Seal,Suit for Grundfos,Higle Pumps
- Replacement:
-
Burgmann BT-RN UN，AES T03D，Vulcan 12DIN，Roten UNITEN 2，Flowserve42D,LATTY T900D
Temperature:
-40℃ to +200℃
Pressure:
≤1Mpa
Speed:
≤15m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
| Size |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
| (mm) |
| 10 |
21 |
17 |
19.0 |
15.0 |
7.0 |
4.0 |
| 12 |
23 |
19 |
21.0 |
18.0 |
7.0 |
4.0 |
| 14 |
25 |
21 |
23.0 |
22.0 |
7.0 |
4.0 |
| 16 |
27 |
23 |
26.0 |
23.0 |
7.0 |
4.0 |
| 18 |
33 |
27 |
29.0 |
24.0 |
10.0 |
5.0 |
| 20 |
35 |
29 |
31.0 |
25.0 |
10.0 |
5.0 |
| 22 |
37 |
31 |
33.0 |
25.0 |
10.0 |
5.5 |
| 24 |
39 |
33 |
35.0 |
27.0 |
10.0 |
5.5 |
| 25 |
40 |
34 |
36.0 |
27.0 |
10.0 |
5.5 |
| 28 |
43 |
37 |
40.0 |
29.0 |
10.0 |
5.5 |
| 30 |
45 |
39 |
43.0 |
30.0 |
10.0 |
5.5 |
| 32 |
48 |
42 |
46.0 |
30.0 |
10.0 |
5.5 |
| 33 |
48 |
42 |
46.0 |
39.0 |
10.0 |
5.5 |
| 35 |
50 |
44 |
49.0 |
39.0 |
10.0 |
5.5 |
| 38 |
56 |
49 |
53.0 |
42.0 |
13.0 |
6.0 |
| 40 |
58 |
51 |
56.0 |
42.0 |
13.0 |
6.0 |
| 43 |
61 |
54 |
59.0 |
47.0 |
13.0 |
6.0 |
| 45 |
63 |
56 |
61.0 |
47.0 |
13.0 |
6.0 |
| 48 |
66 |
59 |
64.0 |
47.0 |
13.0 |
6.0 |
| 50 |
70 |
62 |
66.0 |
46.0 |
14.0 |
6.0 |
| 53 |
73 |
65 |
69.0 |
56.0 |
14.0 |
6.0 |
| 55 |
75 |
67 |
71.0 |
56.0 |
14.0 |
6.0 |
| 58 |
78 |
70 |
76.0 |
56.0 |
14.0 |
6.0 |
| 60 |
80 |
72 |
78.0 |
56.0 |
14.0 |
6.0 |
| 63 |
83 |
75 |
81.0 |
56.0 |
14.0 |
6.0 |
| 65 |
85 |
77 |
84.0 |
66.0 |
14.0 |
6.0 |
| 68 |
90 |
81 |
88.0 |
64.0 |
16.0 |
7.0 |
| 70 |
92 |
83 |
89.0 |
64.0 |
16.0 |
7.0 |
| 75 |
97 |
88 |
98.0 |
64.0 |
16.0 |
7.0 |
| 80 |
105 |
85 |
100.0 |
72.0 |
18.0 |
7.0 |
| 85 |
110 |
100 |
107.5 |
72.0 |
18.0 |
7.0 |
| 90 |
115 |
105 |
111.0 |
72.0 |
18.0 |
7.0 |
| 95 |
120 |
110 |
119.0 |
72.0 |
18.0 |
7.0 |
| 100 |
125 |
115 |
123.8 |
72.0 |
18.0 |
7.0 |
