HK155-155A
-
Type:
-

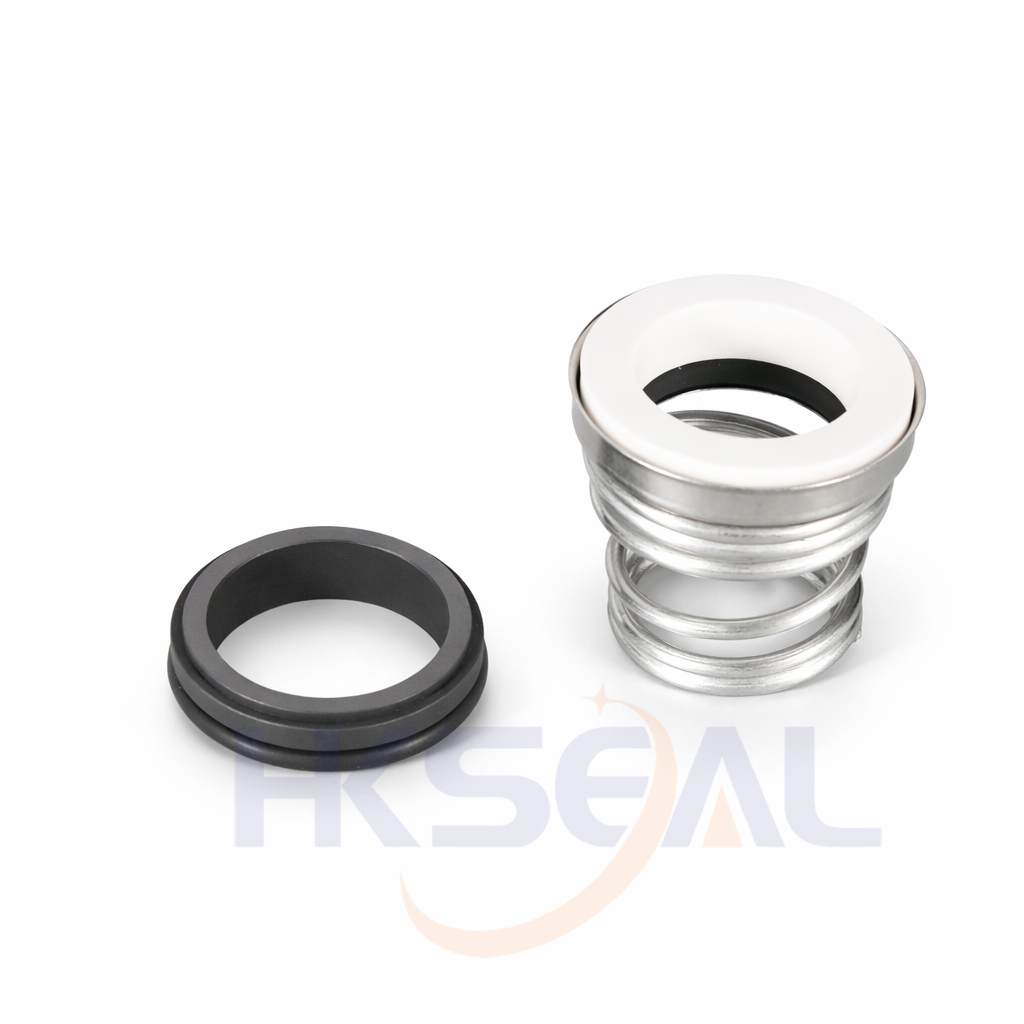

O-Ring Mechanical Seal
- Replacement:
-
Burgmann BT-FN/BT-FN-NU，Roten3，AES T04/T04D，Vulcan13，Flowserve43,LATTY T901
Temperature:
-20℃ to +150℃
Pressure:
≤1Mpa
Speed:
≤15m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
.jpg)
| HK155-d |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
|
HK155A-d |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
| (mm) |
|
(mm) |
| 10 |
18.1 |
14.0 |
20.0 |
15.0 |
5.5 |
7.0 |
|
10.0 |
21 |
17 |
20.0 |
15 |
7 |
8.5 |
| 11 |
20.6 |
16.5 |
22.0 |
18.0 |
5.5 |
7.0 |
|
12.0 |
23 |
19 |
22.0 |
18 |
7 |
8.5 |
| 12 |
20.6 |
16.5 |
22.0 |
18.0 |
5.5 |
7.0 |
|
14.0 |
25 |
21 |
25.0 |
22 |
7 |
8.5 |
| 13 |
23.1 |
19.0 |
25.0 |
22.0 |
6.0 |
7.5 |
|
16.0 |
27 |
23 |
29.0 |
23 |
7 |
8.5 |
| 14 |
23.1 |
19.0 |
25.0 |
22.0 |
6.0 |
7.5 |
|
18.0 |
33 |
27 |
33.0 |
24 |
10 |
12.0 |
| 15 |
26.9 |
21.0 |
29.0 |
22.0 |
7.0 |
9.2 |
|
20.0 |
35 |
29 |
33.0 |
25 |
10 |
12.0 |
| 16 |
26.9 |
21.0 |
29.0 |
23.0 |
7.0 |
9.2 |
|
22.0 |
37 |
31 |
38.0 |
25 |
10 |
12.0 |
| 17 |
26.9 |
21.0 |
29.0 |
23.0 |
7.0 |
9.2 |
|
24.0 |
39 |
33 |
38.0 |
27 |
10 |
12.0 |
| 18 |
30.9 |
25.0 |
33.0 |
24.0 |
8.0 |
10.0 |
|
25.0 |
40 |
34 |
40.0 |
27 |
10 |
12.0 |
| 19 |
30.9 |
25.0 |
33.0 |
25.0 |
8.0 |
10.0 |
|
28.0 |
43 |
37 |
46.0 |
29 |
10 |
12.0 |
| 20 |
30.9 |
25.0 |
33.0 |
25.0 |
8.0 |
10.0 |
|
30.0 |
45 |
39 |
46.0 |
30 |
10 |
12.0 |
| 21 |
35.4 |
30.0 |
38.0 |
25.0 |
8.0 |
10.0 |
|
32.0 |
48 |
42 |
46.0 |
30 |
10 |
11.5 |
| 22 |
35.4 |
30.0 |
38.0 |
25.0 |
8.0 |
10.0 |
|
33.0 |
48 |
42 |
48.0 |
39 |
10 |
11.5 |
| 23 |
35.4 |
30.0 |
38.0 |
27.0 |
8.0 |
10.0 |
|
35.0 |
50 |
44 |
50.0 |
39 |
10 |
11.5 |
| 24 |
35.4 |
30.0 |
38.0 |
27.0 |
8.0 |
10.0 |
|
38.0 |
56 |
49 |
56.0 |
42 |
13 |
15.0 |
| 25 |
38.2 |
33.0 |
40.0 |
27.0 |
8.5 |
10.0 |
|
40.0 |
58 |
51 |
58.0 |
42 |
13 |
15.0 |
| 28 |
43.3 |
38.0 |
46.0 |
29.0 |
9.0 |
11.0 |
|
| 29 |
43.3 |
38.0 |
46.0 |
30.0 |
9.0 |
11.0 |
|
| 30 |
43.3 |
38.0 |
46.0 |
30.0 |
9.0 |
11.0 |
|
| 32 |
43.3 |
38.0 |
46.0 |
30.0 |
9.0 |
11.0 |
|
| 33 |
53.5 |
45.0 |
48.0 |
39.0 |
11.5 |
13.0 |
|
| 35 |
53.5 |
45.0 |
50.0 |
39.0 |
11.5 |
13.0 |
|
| 38 |
60.5 |
52.0 |
56.0 |
39.0 |
11.5 |
13.0 |
|
| 40 |
60.5 |
52.0 |
58.0 |
39.0 |
11.5 |
13.0 |
|
