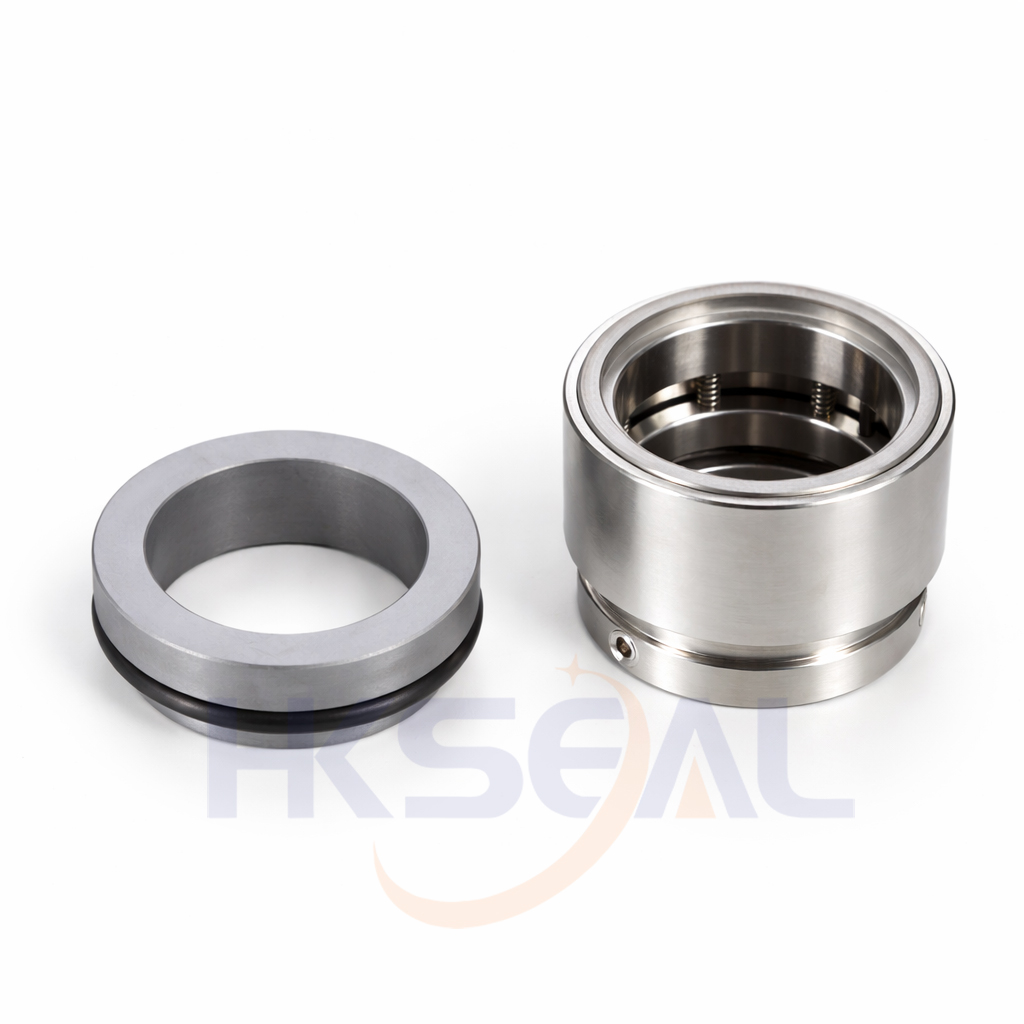

HK40
-
Type:
-
Multi Spring Mechanical Seal
- Replacement:
-
Vulcan 40
Temperature:
-20℃ to +180℃
Pressure:
≤2.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
Size |
D1 |
D3 |
L1 |
L2 |
| (mm) |
(inch) |
| 18 |
|
33.0 |
32.5 |
30.0 |
10.0 |
| 19 |
0.750 |
35.0 |
33.5 |
30.0 |
10.0 |
| 20 |
|
35.0 |
34.5 |
30.0 |
10.0 |
| 22 |
|
37.0 |
36.5 |
30.0 |
10.0 |
| 24 |
0.875 |
39.0 |
38.5 |
30.0 |
10.0 |
| 25 |
|
40.0 |
39.5 |
30.0 |
10.0 |
|
1.000 |
43.0 |
39.5 |
30.0 |
10.0 |
| 28 |
|
43.0 |
42.5 |
32.5 |
10.0 |
|
1.250 |
45.0 |
42.5 |
32.5 |
10.0 |
| 30 |
|
45.0 |
44.5 |
32.5 |
10.0 |
| 32 |
1.250 |
48.0 |
46.0 |
32.5 |
10.0 |
| 33 |
|
48.0 |
47.0 |
32.5 |
10.0 |
| 35 |
1.375 |
50.0 |
48.0 |
32.5 |
10.0 |
| 38 |
1.500 |
56.0 |
52.0 |
34.0 |
11.0 |
| 40 |
|
58.0 |
56.0 |
34.0 |
11.0 |
| 42 |
1.625 |
61.0 |
56.0 |
34.0 |
11.0 |
| 43 |
|
61.0 |
59.0 |
34.0 |
11.0 |
| 44-45 |
1.750 |
63.0 |
59.0 |
34.0 |
11.0 |
| 48 |
1.875 |
66.0 |
62.4 |
34.0 |
11.0 |
| 50 |
2.000 |
70.0 |
65.6 |
34.0 |
13.0 |
| 53 |
2.125 |
73.0 |
68.8 |
34.5 |
13.0 |
| 55 |
|
75.0 |
70.8 |
34.5 |
13.0 |
|
2.250 |
78.0 |
71.9 |
34.5 |
13.0 |
| 58 |
|
78.0 |
75.2 |
34.5 |
13.0 |
| 60 |
2.375 |
80.0 |
75.2 |
34.5 |
13.0 |
| 63 |
|
83.0 |
78.3 |
34.5 |
13.0 |
|
2.500 |
85.0 |
78.3 |
36.5 |
13.0 |
| 65 |
|
85.0 |
84.2 |
36.5 |
13.0 |
| 68 |
2.625 |
90.0 |
85.5 |
36.5 |
15.3 |
| 70 |
2.750 |
92.0 |
87.4 |
36.5 |
15.3 |
| 73 |
2.875 |
97.0 |
90.6 |
36.5 |
15.3 |
| 75 |
|
97.0 |
92.7 |
36.5 |
15.3 |
|
3.000 |
105.0 |
93.7 |
36.5 |
15.7 |
| 80 |
3.125 |
105.0 |
100.0 |
36.5 |
15.7 |
|
3.250 |
110.0 |
110.0 |
36.5 |
15.7 |
| 85 |
3.375 |
110.0 |
103.3 |
36.5 |
15.7 |
|
|
