HK41
-
Type:
-

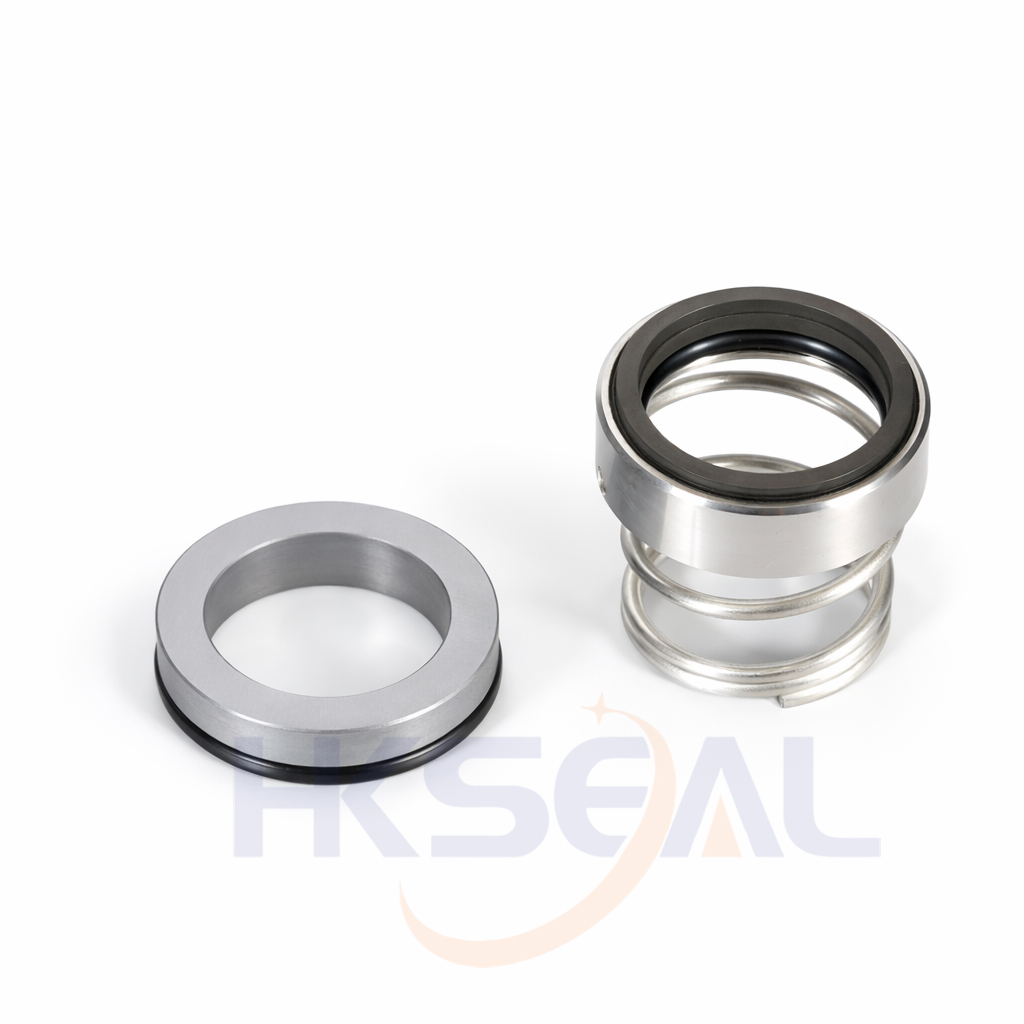

O-Ring Mechanical Seal
Temperature:
-20℃ to +180℃
Pressure:
≤1Mpa
Speed:
≤15m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
| d |
D1 |
D3 |
L1 |
L2 |
| (mm) |
| 8 |
17.1 |
16.0 |
15.2 |
5.5 |
| 10 |
18.1 |
17.5 |
15.2 |
5.5 |
| 12 |
20.6 |
20.0 |
18.2 |
5.5 |
| 14 |
23.1 |
23.0 |
22.2 |
6.0 |
| 15 |
26.9 |
24.0 |
22.2 |
7.0 |
| 16 |
26.9 |
26.0 |
23.2 |
7.0 |
| 17 |
26.9 |
27.0 |
23.2 |
7.0 |
| 18 |
30.9 |
29.0 |
24.2 |
8.0 |
| 19 |
30.9 |
30.0 |
25.2 |
8.0 |
| 20 |
30.9 |
30.0 |
25.2 |
8.0 |
| 22 |
35.4 |
34.0 |
25.2 |
8.0 |
| 24 |
35.4 |
35.0 |
27.2 |
8.0 |
| 25 |
38.2 |
37.0 |
27.2 |
8.5 |
| 26 |
38.2 |
38.0 |
27.2 |
8.5 |
| 28 |
43.3 |
42.0 |
29.2 |
9.0 |
| 30 |
43.3 |
43.0 |
30.2 |
9.0 |
| 32 |
43.3 |
45.0 |
30.2 |
11.5 |
| 33 |
53.5 |
48.0 |
39.2 |
11.5 |
| 35 |
53.5 |
50.0 |
39.2 |
11.5 |
| 38 |
60.5 |
54.0 |
39.2 |
11.5 |
| 40 |
60.5 |
56.0 |
39.2 |
11.5 |
| 42 |
60.5 |
59.0 |
39.2 |
11.5 |
| 43 |
60.5 |
60.0 |
39.2 |
11.5 |
| 45 |
65.5 |
64.0 |
41.2 |
11.5 |
| 48 |
65.5 |
68.0 |
41.2 |
11.5 |
| 50 |
72.5 |
69.0 |
45.2 |
11.5 |
| 55 |
72.5 |
74.0 |
47.2 |
11.5 |
| 60 |
79.3 |
80.0 |
49.2 |
11.5 |
| 65 |
84.5 |
87.0 |
51.2 |
11.5 |
| 70 |
89.5 |
92.0 |
51.2 |
11.5 |
| 75 |
94.5 |
97.0 |
57.2 |
11.5 |
| 80 |
99.5 |
102.0 |
59.2 |
11.5 |
| 85 |
105.5 |
110.0 |
59.2 |
13.5 |
| 90 |
111.5 |
117.0 |
62.2 |
13.5 |
| 95 |
116.5 |
122.0 |
62.2 |
13.5 |
| 100 |
119.5 |
127.0 |
75.2 |
13.5 |
