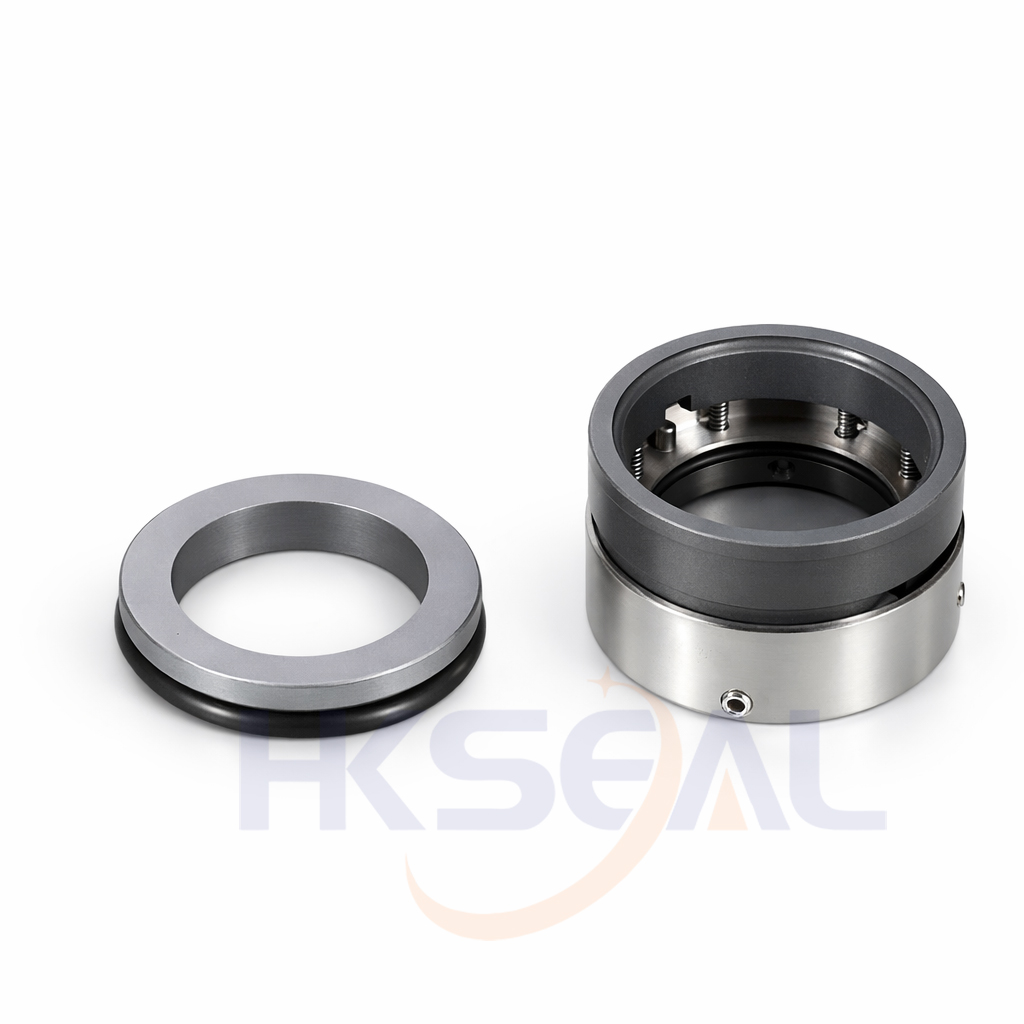

HK491
-
Type:
-
Multi Spring Mechanical Seal
Temperature:
-20℃ to +180℃
Pressure:
≤2.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
D1 |
D2 |
D3 |
L1 |
L2 |
| (mm) |
| 16 |
27 |
23 |
29.0 |
30.0 |
6.6 |
| 18 |
33 |
27 |
32.3 |
30.0 |
7.5 |
| 20 |
35 |
29 |
34.3 |
30.0 |
7.5 |
| 22 |
37 |
31 |
36.3 |
30.0 |
7.5 |
| 24 |
39 |
33 |
38.3 |
30.0 |
7.5 |
| 25 |
40 |
34 |
39.3 |
30.0 |
7.5 |
| 28 |
43 |
37 |
42.3 |
35.0 |
7.5 |
| 30 |
45 |
39 |
44.3 |
35.0 |
7.5 |
| 32 |
48 |
42 |
46.3 |
35.0 |
7.5 |
| 33 |
48 |
42 |
47.9 |
35.0 |
7.5 |
| 35 |
50 |
44 |
49.5 |
35.0 |
7.5 |
| 38 |
56 |
49 |
54.3 |
35.0 |
9.0 |
| 40 |
58 |
51 |
56.1 |
35.0 |
9.0 |
| 43 |
61 |
54 |
59.1 |
35.0 |
9.0 |
| 45 |
63 |
56 |
61.1 |
35.0 |
9.0 |
| 48 |
66 |
59 |
64.1 |
35.0 |
9.0 |
| 50 |
70 |
62 |
66.1 |
35.0 |
9.5 |
| 53 |
73 |
65 |
71.0 |
35.0 |
11.0 |
| 55 |
75 |
67 |
71.1 |
35.0 |
11.0 |
| 60 |
80 |
72 |
77.1 |
35.0 |
11.0 |
| 65 |
85 |
77 |
83.0 |
35.0 |
11.0 |
| 68 |
90 |
81 |
91.0 |
35.0 |
11.3 |
| 70 |
92 |
83 |
86.1 |
35.0 |
11.3 |
| 75 |
97 |
88 |
98.4 |
48.0 |
11.3 |
| 80 |
105 |
95 |
104.8 |
48.0 |
12.0 |
| 85 |
110 |
100 |
108.0 |
48.0 |
12.0 |
| 90 |
115 |
105 |
114.3 |
48.0 |
14.0 |
| 100 |
125 |
115 |
123.8 |
48.0 |
14.0 |
