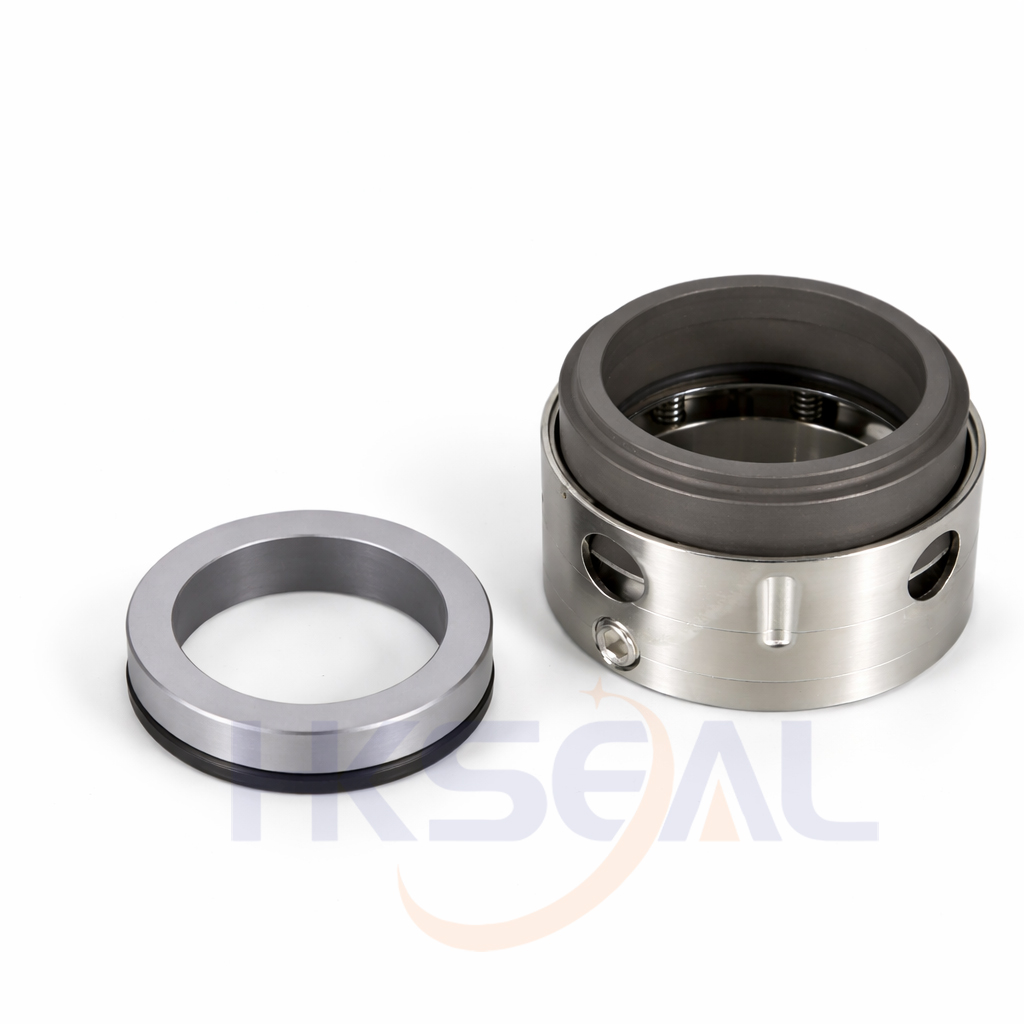

HK58B
-
Type:
-
Multi Spring Mechanical Seal
- Replacement:
-
Vu1can 1659BS，AES M04S， Crane 58B，Bergmann BT-C5 KB
Temperature:
-40℃ to +250℃
Pressure:
≤2.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
d0 |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
L6 |
| (mm) |
| 14 |
18.0 |
25.0 |
21.0 |
32.0 |
30.5 |
12.0 |
18.5 |
6.0 |
| 16 |
20.0 |
27.0 |
23.0 |
34.0 |
30.5 |
12.0 |
18.5 |
6.0 |
| 18 |
22.0 |
33.0 |
27.0 |
36.0 |
31.5 |
13.5 |
20.5 |
6.5 |
| 20 |
24.0 |
35.0 |
29.0 |
38.0 |
31.5 |
13.5 |
20.5 |
6.5 |
| 22 |
26.0 |
37.0 |
31.0 |
40.0 |
31.5 |
13.5 |
20.5 |
6.5 |
| 24 |
28.0 |
39.0 |
33.0 |
42.0 |
34.2 |
13.3 |
20.3 |
6.7 |
| 25 |
30.0 |
40.0 |
34.0 |
44.0 |
34.5 |
13.0 |
20.0 |
7.0 |
| 28 |
33.0 |
43.0 |
37.0 |
47.0 |
37.5 |
12.5 |
19.5 |
7.5 |
| 30 |
35.0 |
45.0 |
39.0 |
49.0 |
38.0 |
12.0 |
19.0 |
8.0 |
| 32 |
38.0 |
48.0 |
42.0 |
54.0 |
38.0 |
12.0 |
19.0 |
8.0 |
| 33 |
38.0 |
48.0 |
42.0 |
54.0 |
38.0 |
12.0 |
19.0 |
8.0 |
| 35 |
40.0 |
50.0 |
44.0 |
56.0 |
38.0 |
12.0 |
19.0 |
8.0 |
| 38 |
43.0 |
56.0 |
49.0 |
59.0 |
39.5 |
13.0 |
20.0 |
10.0 |
| 40 |
45.0 |
58.0 |
51.0 |
61.0 |
39.5 |
13.0 |
20.0 |
10.0 |
| 43 |
48.0 |
61.0 |
54.0 |
64.0 |
39.5 |
13.0 |
20.0 |
10.0 |
| 45 |
50.0 |
63.0 |
56.0 |
66.0 |
39.5 |
13.0 |
20.0 |
10.0 |
| 48 |
53.0 |
66.0 |
59.0 |
69.0 |
39.5 |
13.0 |
20.0 |
10.0 |
| 50 |
55.0 |
70.0 |
62.0 |
71.0 |
44.0 |
13.5 |
20.5 |
11.5 |
| 53 |
58.0 |
73.0 |
65.0 |
78.0 |
44.0 |
13.5 |
20.5 |
11.5 |
| 55 |
60.0 |
75.0 |
67.0 |
80.0 |
44.0 |
13.5 |
20.5 |
11.5 |
| 58 |
63.0 |
78.0 |
70.0 |
83.0 |
49.0 |
13.5 |
20.5 |
11.5 |
| 60 |
65.0 |
80.0 |
72.0 |
85.0 |
49.0 |
13.5 |
20.5 |
11.5 |
| 63 |
68.0 |
83.0 |
75.0 |
88.0 |
49.0 |
13.5 |
20.5 |
11.5 |
| 65 |
70.0 |
85.0 |
77.0 |
90.0 |
49.0 |
13.5 |
20.5 |
11.5 |
| 70 |
75.0 |
92.0 |
83.0 |
95.0 |
55.5 |
14.5 |
21.5 |
13.5 |
| 75 |
80.0 |
97.0 |
88.0 |
104.0 |
55.5 |
14.5 |
21.5 |
13.5 |
| 80 |
85.0 |
105.0 |
95.0 |
109.0 |
55.5 |
15.0 |
22.0 |
13.0 |
| 85 |
90.0 |
110.0 |
100.0 |
114.0 |
60.0 |
15.0 |
22.0 |
13.0 |
| 90 |
95.0 |
115.0 |
105.0 |
119.0 |
60.0 |
15.0 |
22.0 |
13.0 |
| 95 |
100.0 |
120.0 |
110.0 |
124.0 |
60.0 |
15.0 |
22.0 |
13.0 |
| 100 |
105.0 |
125.0 |
115.0 |
129.0 |
60.0 |
15.0 |
22.0 |
13.0 |
