HK591
-
Type:
-

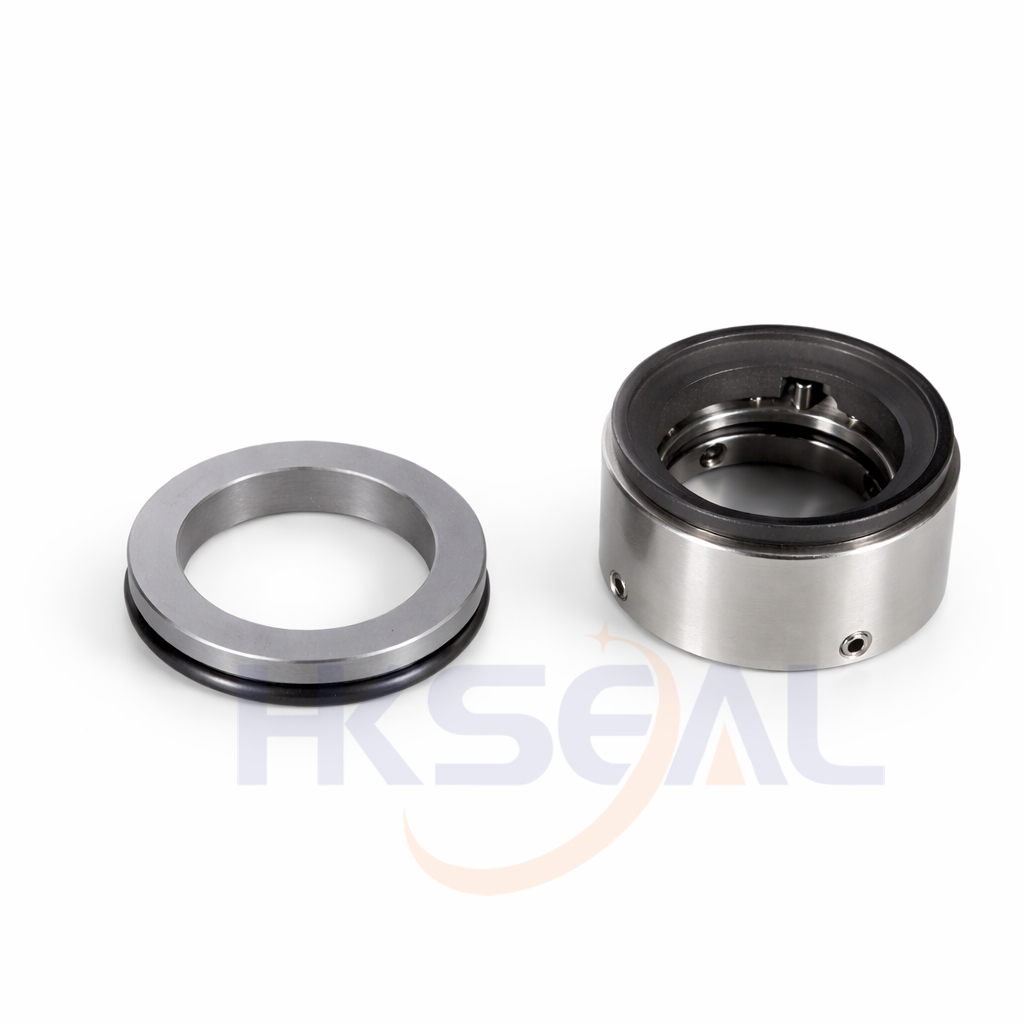

Multi Spring Mechanical Seal
Temperature:
-20℃ to +180℃
Pressure:
≤2.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
D1 |
D2 |
D3 |
L1 |
L2 |
| (mm) |
| 16 |
27 |
23 |
32 |
20.5 |
6.6 |
| 18 |
33 |
27 |
34 |
20.5 |
7.5 |
| 20 |
35 |
29 |
36 |
22.5 |
7.5 |
| 22 |
37 |
31 |
38 |
22.5 |
7.5 |
| 24 |
39 |
33 |
40 |
22.5 |
7.5 |
| 25 |
40 |
34 |
42 |
22.5 |
7.5 |
| 28 |
43 |
37 |
45 |
22.5 |
7.5 |
| 30 |
45 |
39 |
47 |
22.5 |
7.5 |
| 32 |
48 |
42 |
49 |
22.5 |
7.5 |
| 33 |
48 |
42 |
50 |
22.5 |
7.5 |
| 35 |
50 |
44 |
52 |
22.5 |
7.5 |
| 38 |
56 |
49 |
55 |
22.5 |
9.0 |
| 40 |
58 |
51 |
47 |
22.5 |
9.0 |
| 43 |
61 |
54 |
60 |
28.5 |
9.0 |
| 45 |
63 |
56 |
62 |
28.5 |
9.0 |
| 48 |
66 |
59 |
65 |
28.5 |
9.0 |
| 50 |
70 |
62 |
67 |
28.5 |
9.0 |
| 53 |
73 |
65 |
70 |
28.5 |
11.0 |
| 55 |
75 |
67 |
72 |
28.5 |
11.0 |
| 60 |
80 |
72 |
77 |
28.5 |
11.0 |
| 65 |
85 |
77 |
82 |
28.5 |
11.0 |
| 70 |
92 |
83 |
87 |
30.5 |
11.3 |
| 75 |
97 |
88 |
93 |
30.5 |
11.3 |
| 80 |
105 |
95 |
98 |
30.5 |
11.3 |
| 85 |
110 |
100 |
103 |
30.5 |
12.0 |
| 90 |
115 |
105 |
108 |
30.5 |
12.0 |
| 95 |
120 |
110 |
113 |
30.5 |
14.0 |
| 100 |
125 |
115 |
118 |
30.5 |
14.0 |
