HK68C
-
Type:
-

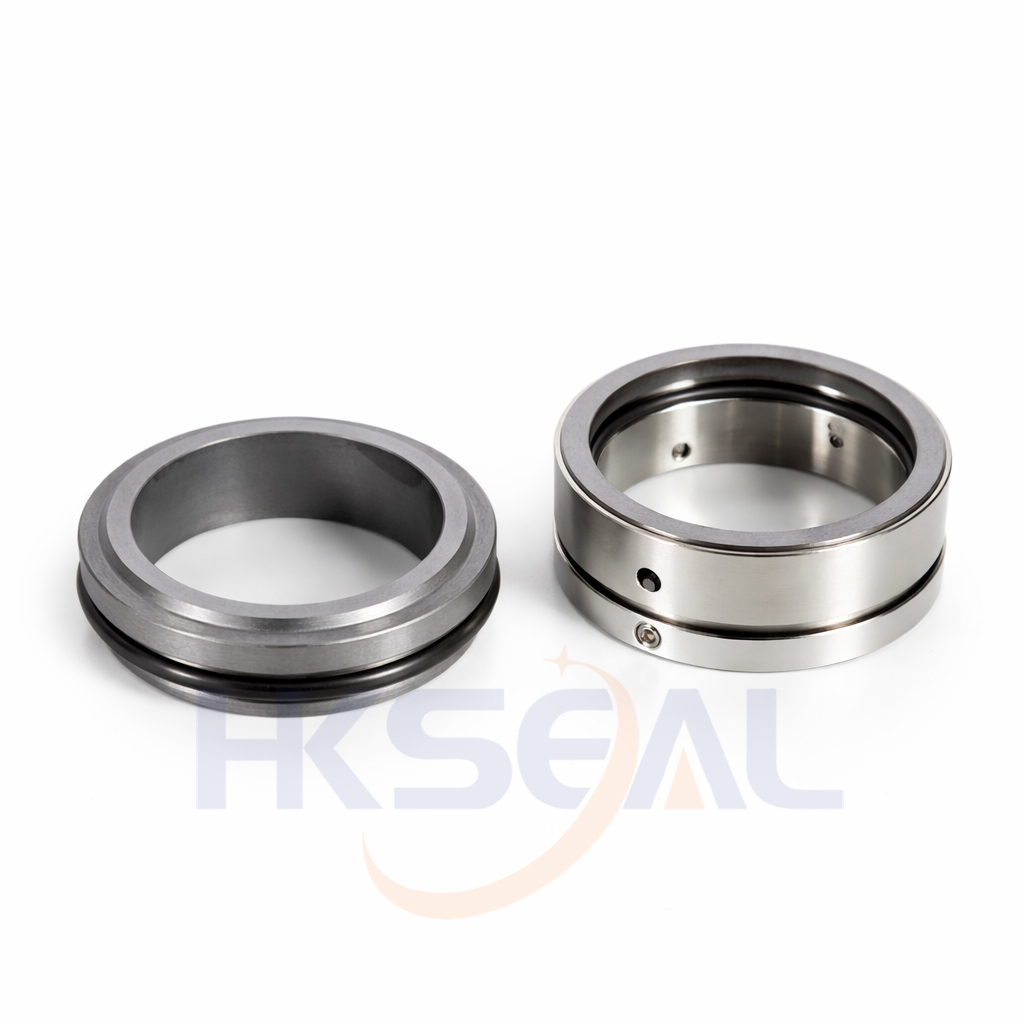

Wave Spring Mechanical Seal
- Replacement:
-
AES W02，Vulcan 1688L，Roten UNITEN 7K
Temperature:
-40℃ to +200℃
Pressure:
≤0.8Mpa
Speed:
≤18m/s
- Material:
-
Q2,B,U2,P,E,V,F,G
| Size |
D1 |
D3 |
d1 |
L1 |
L2 |
| (mm) |
| 16 |
27 |
27.0 |
4.0 |
19.1 |
8.6 |
| 20 |
35 |
31.0 |
5.0 |
19.1 |
10.0 |
| 22 |
37 |
33.0 |
5.0 |
19.1 |
10.0 |
| 24 |
39 |
34.1 |
5.0 |
19.1 |
10.0 |
| 25 |
40 |
35.2 |
5.0 |
19.1 |
10.0 |
| 28 |
43 |
40.0 |
5.0 |
19.1 |
10.0 |
| 30 |
45 |
41.0 |
5.0 |
19.1 |
10.0 |
| 32 |
48 |
42.4 |
5.0 |
19.1 |
10.0 |
| 33 |
48 |
44.0 |
5.0 |
19.1 |
10.0 |
| 35 |
50 |
45.5 |
5.0 |
19.1 |
10.0 |
| 38 |
56 |
51.8 |
5.0 |
21.1 |
11.0 |
| 40 |
58 |
53.8 |
5.0 |
21.1 |
11.0 |
| 43 |
61 |
56.0 |
5.0 |
21.1 |
11.0 |
| 45 |
63 |
58.2 |
5.0 |
21.1 |
11.0 |
| 48 |
66 |
61.4 |
5.0 |
21.1 |
11.0 |
| 50 |
70 |
61.9 |
5.0 |
21.1 |
13.0 |
| 55 |
75 |
72.0 |
5.0 |
22.1 |
13.0 |
| 60 |
80 |
76.0 |
5.0 |
25.8 |
13.0 |
| 63 |
83 |
79.3 |
5.0 |
25.8 |
13.0 |
| 65 |
85 |
82.3 |
5.0 |
25.8 |
13.0 |
| 70 |
92 |
88.9 |
5.0 |
25.8 |
15.3 |
| 75 |
97 |
96.0 |
5.0 |
25.8 |
15.3 |
