HK68E
- Type:

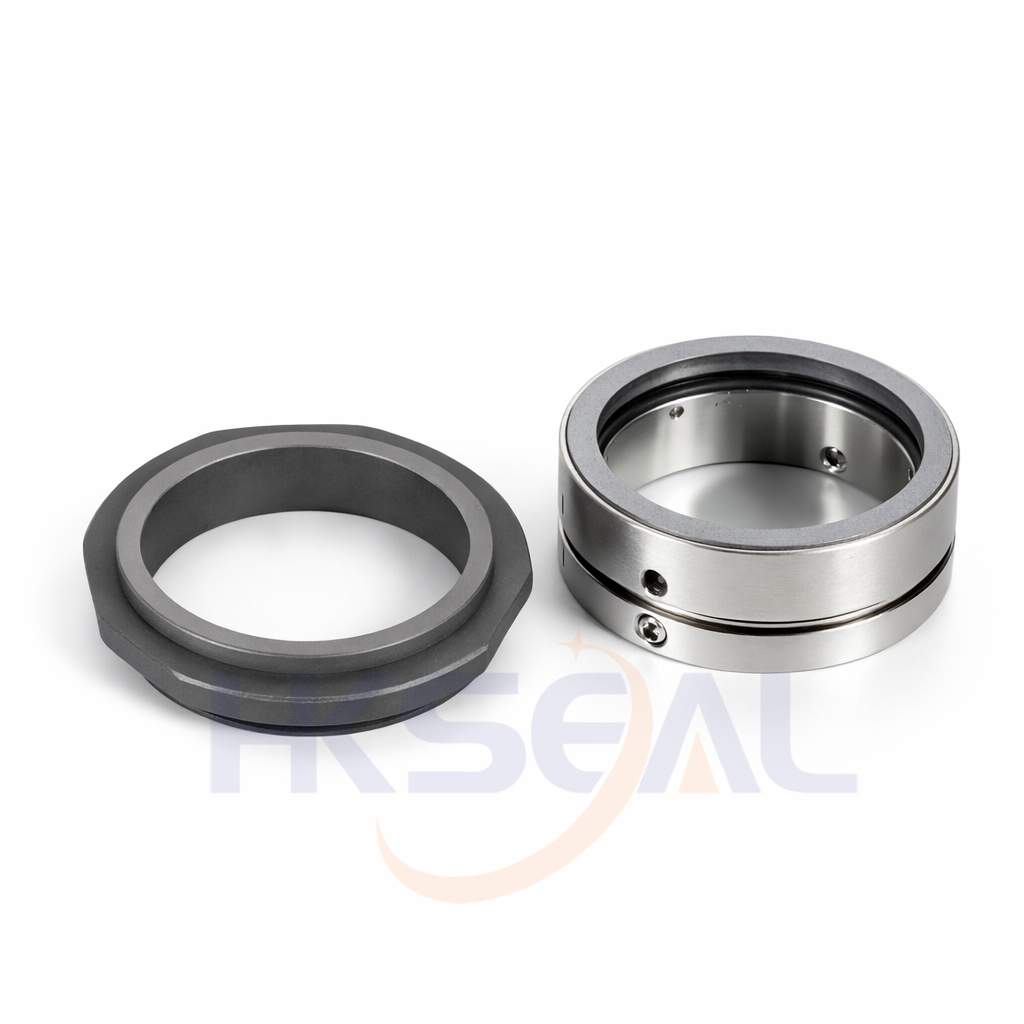

- Wave Spring Mechanical Seal ,Suit for Grundfos,Hilge Pumps
- Replacement:
- AES W04，Vulcan 1688Y Temperature: -40℃ to +200℃ Pressure: ≤0.8Mpa Speed: ≤18m/s
- Material:
- Q2,B,U2,P,E,V,F,G
- Detail
| PUMP ref: | Size | D1 | D3 | L1 | L2 |
| (mm) | |||||
| 10 | 30 | 40.0 | 41.0 | 19.1 | 9.3 |
| 20 | 35 | 44.5 | 45.5 | 19.1 | 9.2 |
| 30 | 50 | 62.0 | 61.9 | 21.1 | 10.4 |
| 40 | 70 | 85.0 | 88.9 | 25.8 | 14.1 |
| 50 | 80 | 95.0 | 101.0 | 25.8 | 16.2 |
