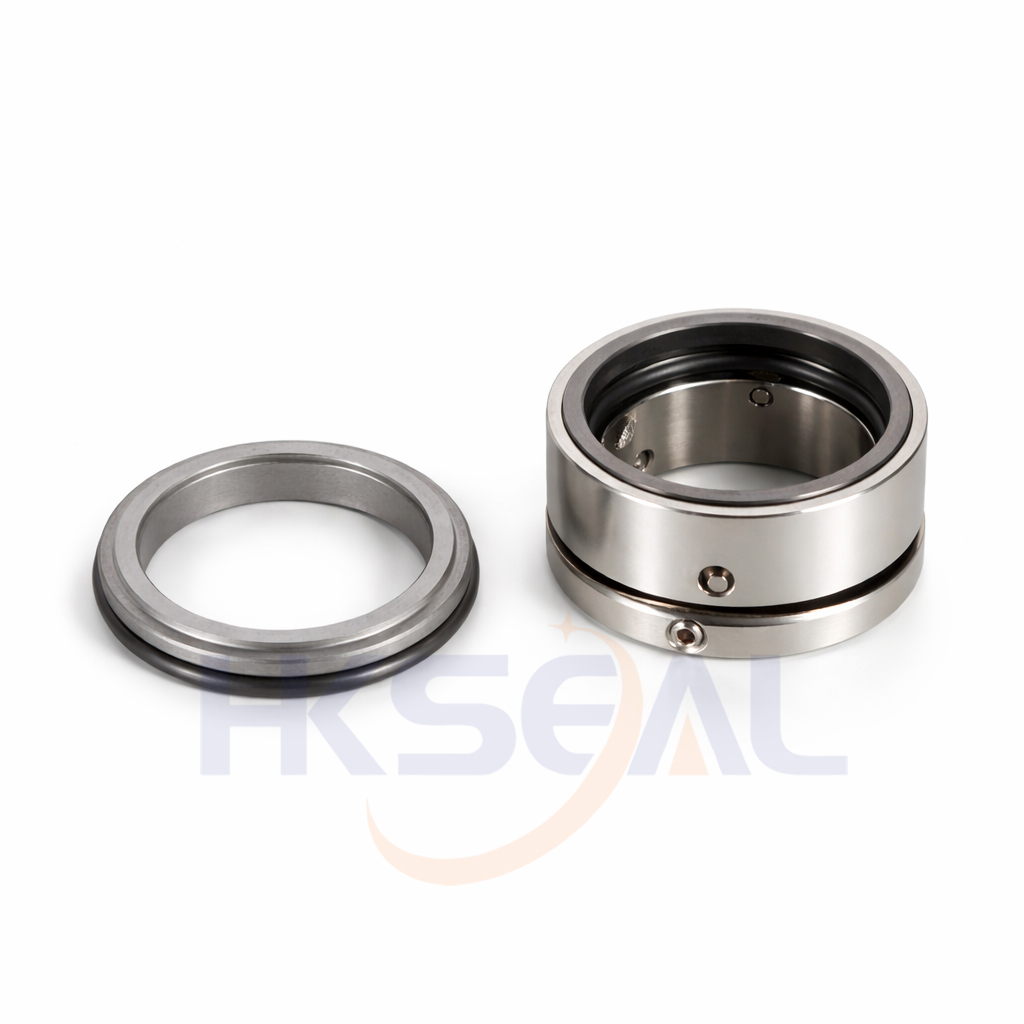

HK68
-
Type:
-
Wave Spring Mechanical Seal
- Replacement:
-
AES W01，Vulcan 1688，Crane 80(DF/FP)，Roten 7K，Flowserve168
Temperature:
-40℃ to +200℃
Pressure:
≤0.8Mpa
Speed:
≤18m/s
- Material:
-
Q2,B,U2,P,E,V,F,G
| d |
D1 |
D3 |
L1 |
L2 |
| (mm) |
| 15.8 |
28.5 |
27.0 |
19.1 |
6.3 |
| 16.0 |
28.5 |
27.0 |
19.1 |
6.3 |
| 19.1 |
31.7 |
30.0 |
19.1 |
6.3 |
| 24.0 |
35.4 |
34.1 |
19.1 |
7.6 |
| 28.0 |
42.0 |
40.0 |
19.1 |
7.6 |
| 28.6 |
41.2 |
39.5 |
19.1 |
7.6 |
| 30.0 |
42.7 |
41.0 |
19.1 |
7.6 |
| 31.7 |
44.2 |
42.4 |
19.1 |
7.6 |
| 32.0 |
44.4 |
42.4 |
19.1 |
7.6 |
| 35.0 |
47.6 |
45.5 |
19.1 |
7.6 |
| 38.0 |
53.9 |
51.8 |
21.1 |
8.1 |
| 44.4 |
60.3 |
58.2 |
21.1 |
8.1 |
| 47.6 |
63.5 |
61.4 |
21.1 |
8.1 |
| 50.0 |
63.9 |
61.9 |
21.1 |
8.1 |
| 50.8 |
66.6 |
64.6 |
22.1 |
9.6 |
| 53.9 |
73.0 |
71.0 |
22.1 |
9.6 |
| 54.0 |
73.9 |
71.0 |
22.1 |
9.6 |
| 54.6 |
75.0 |
72.0 |
22.1 |
9.6 |
| 55.0 |
75.0 |
72.0 |
22.1 |
9.6 |
| 63.0 |
83.0 |
79.3 |
25.8 |
9.1 |
| 63.5 |
88.9 |
79.3 |
25.8 |
9.1 |
| 69.8 |
95.2 |
88.9 |
25.8 |
9.1 |
| 73.0 |
98.4 |
94.0 |
25.8 |
9.1 |
| 75.0 |
100.4 |
96.0 |
25.8 |
9.1 |
