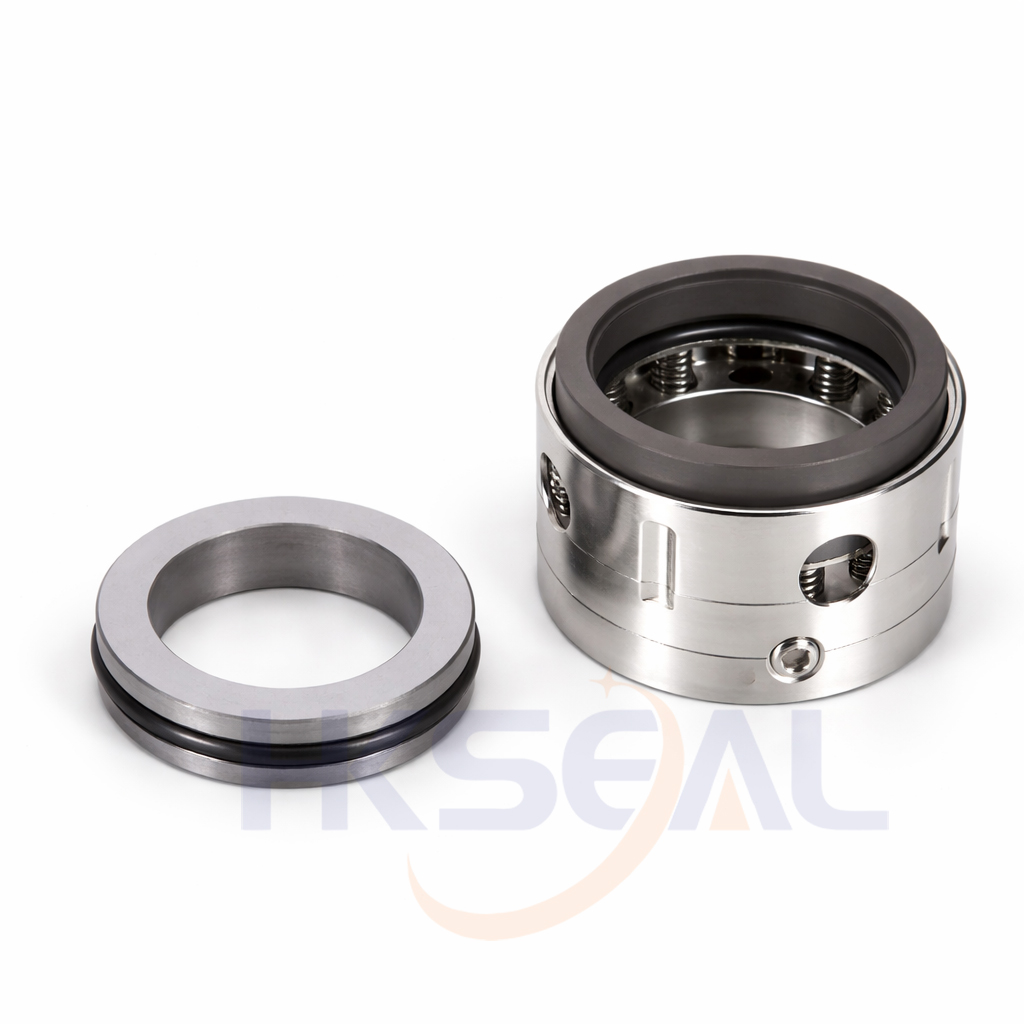

HK8-1T
-
Type:
-
Multi Spring Mechanical Seal
- Replacement:
-
Vu1can 1645S，AES M05S，Crane 8-1T
Temperature:
-20℃ to +180℃
Pressure:
≤1.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
D1 |
D3 |
L1 |
L4 |
| (Inch) |
| 0.500 |
25.40 |
23.80 |
23.80 |
7.92 |
| 0.625 |
31.75 |
26.97 |
23.80 |
10.31 |
| 0.750 |
34.93 |
30.15 |
23.80 |
10.31 |
| 0.875 |
38.10 |
33.32 |
23.80 |
10.31 |
| 1.000 |
41.28 |
36.50 |
25.40 |
11.10 |
| 1.125 |
44.45 |
39.67 |
25.40 |
11.10 |
| 1.250 |
47.63 |
42.85 |
25.40 |
11.10 |
| 1.375 |
50.80 |
49.20 |
34.93 |
11.10 |
| 1.500 |
53.98 |
49.20 |
28.58 |
11.10 |
| 1.625 |
60.33 |
57.15 |
29.36 |
12.70 |
| 1.750 |
63.50 |
58.72 |
34.93 |
12.70 |
| 1.875 |
66.68 |
63.50 |
34.93 |
12.70 |
| 2.000 |
69.65 |
66.68 |
34.93 |
12.70 |
| 2.125 |
76.20 |
71.42 |
42.85 |
14.27 |
| 2.250 |
79.38 |
72.21 |
34.93 |
14.27 |
| 2.375 |
82.55 |
76.20 |
42.85 |
14.27 |
| 2.500 |
85.73 |
0.00 |
34.93 |
14.27 |
| 2.625 |
85.73 |
82.55 |
42.85 |
15.88 |
| 2.750 |
88.90 |
85.73 |
42.85 |
15.88 |
| 2.875 |
95.25 |
88.90 |
42.85 |
15.88 |
| 3.000 |
98.63 |
92.08 |
42.85 |
15.88 |
| 3.125 |
101.60 |
95.25 |
42.85 |
19.84 |
| 3.250 |
104.78 |
98.43 |
42.85 |
19.84 |
| 3.375 |
107.95 |
101.60 |
42.85 |
19.84 |
| 3.500 |
111.13 |
104.78 |
42.85 |
19.84 |
| 3.625 |
114.30 |
107.95 |
42.85 |
19.84 |
| 3.700 |
117.48 |
111.13 |
42.85 |
19.84 |
| 3.875 |
120.65 |
114.30 |
42.85 |
19.84 |
| 4.000 |
123.83 |
117.48 |
42.85 |
19.84 |
