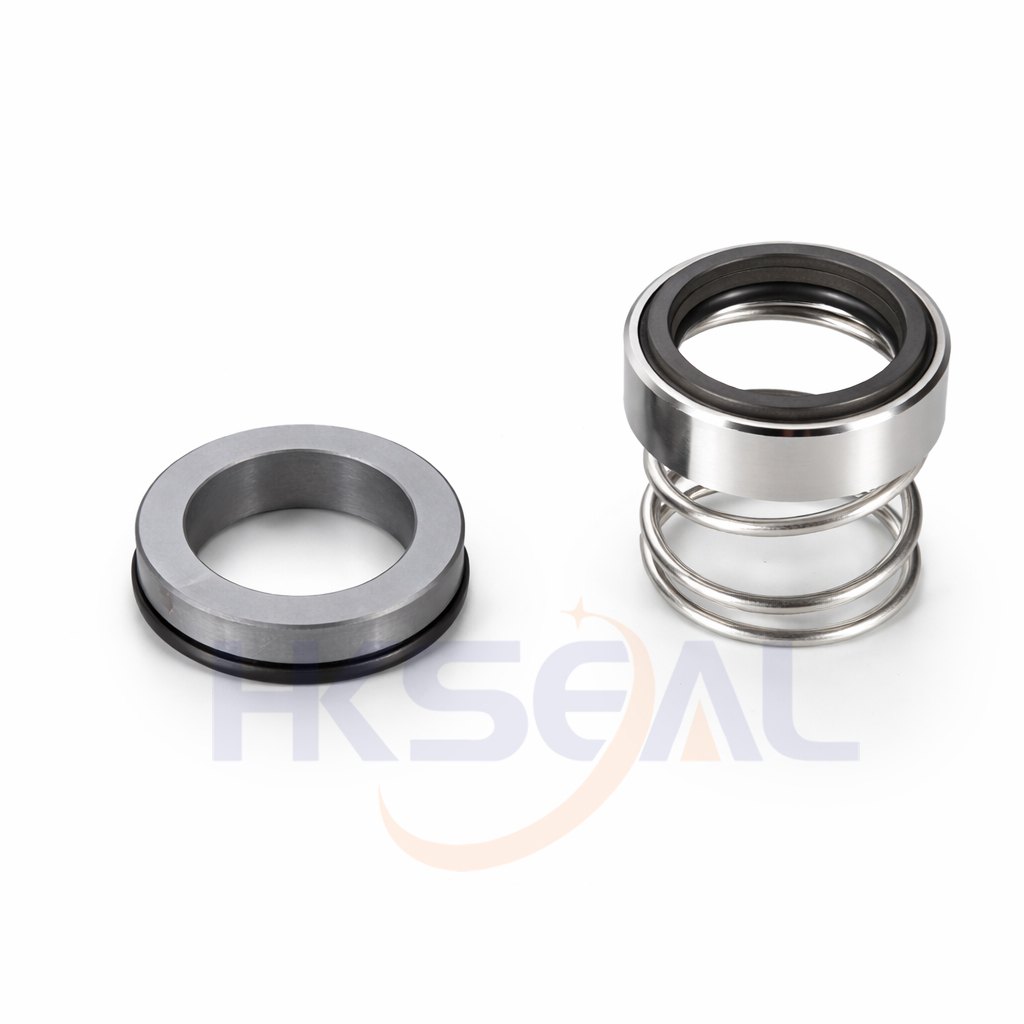

HK80
-
Type:
-
O-Ring Mechanical Seal
- Replacement:
-
Burgmann M32/M377，Vulcan 8，AES T01，Roten L4B，Flowserve38
Temperature:
-20℃ to +180℃
Pressure:
≤1Mpa
Speed:
≤15m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
| Size |
D1 |
D3 |
L1 |
L2 |
| (mm) |
| 10 |
19.2 |
19.0 |
15.5 |
6.6 |
| 12 |
21.6 |
21.0 |
15.5 |
5.6 |
| 14 |
24.6 |
23.0 |
15.5 |
5.6 |
| 15 |
24.6 |
24.0 |
15.5 |
6.6 |
| 16 |
28.0 |
26.0 |
17.5 |
7.5 |
| 18 |
30.0 |
29.0 |
18.5 |
8.0 |
| 19 |
31.0 |
31.0 |
20.0 |
7.5 |
| 20 |
35.0 |
31.0 |
20.0 |
7.5 |
| 22 |
35.0 |
33.0 |
21.5 |
7.5 |
| 24 |
38.0 |
35.0 |
23.0 |
7.5 |
| 25 |
38.0 |
36.0 |
24.5 |
7.5 |
| 26 |
40.0 |
37.0 |
24.5 |
8.0 |
| 28 |
42.0 |
40.0 |
24.5 |
9.0 |
| 30 |
45.0 |
43.0 |
24.5 |
10.5 |
| 32 |
48.0 |
46.0 |
28.0 |
10.5 |
| 33 |
48.0 |
46.0 |
28.0 |
11.0 |
| 35 |
52.0 |
49.0 |
28.0 |
11.0 |
| 38 |
55.0 |
53.0 |
31.0 |
10.3 |
| 40 |
58.0 |
56.0 |
34.0 |
10.8 |
| 42 |
62.0 |
59.0 |
35.0 |
12.0 |
| 43 |
62.0 |
59.0 |
35.0 |
12.0 |
| 45 |
64.0 |
61.0 |
36.5 |
11.6 |
| 48 |
68.4 |
64.0 |
42.0 |
11.6 |
| 50 |
69.3 |
66.0 |
43.0 |
11.6 |
| 55 |
75.4 |
71.0 |
47.0 |
13.3 |
| 58 |
78.4 |
76.0 |
50.0 |
13.3 |
| 60 |
80.4 |
78.0 |
51.0 |
13.3 |
| 65 |
85.4 |
84.0 |
52.0 |
13.0 |
| 70 |
92.0 |
90.0 |
54.0 |
13.0 |
| 75 |
99.0 |
98.0 |
55.0 |
14.0 |
| 80 |
104.0 |
100.0 |
58.0 |
15.0 |
